English

2.11 M.2_SSD (NGFF) Module Installation Guide (M2_1)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2

Socket (M2_1) supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*

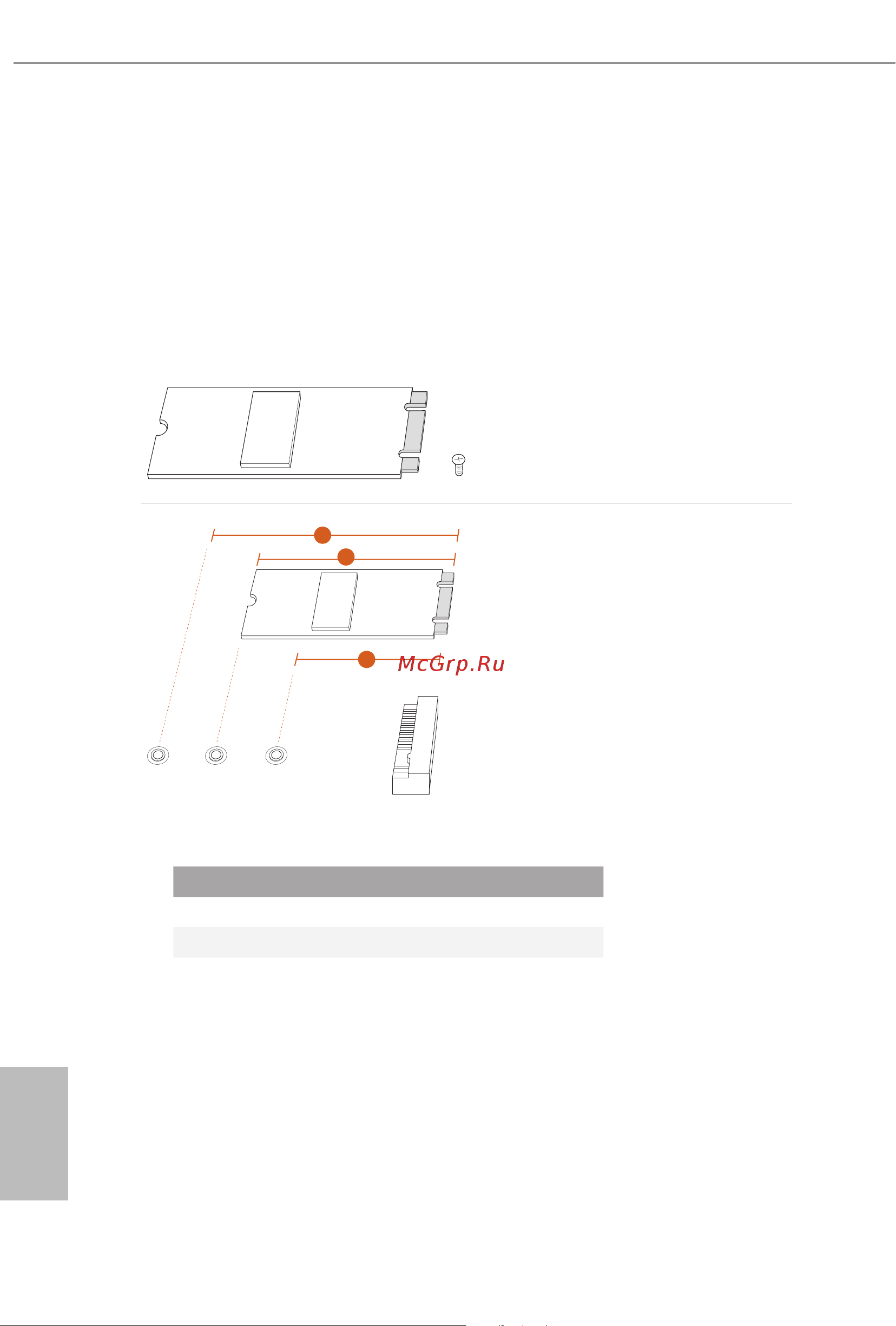

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

ABC

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2 3

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2242 Type226 0 Type 2280
