English

2.13 M.2_SSD (NGFF) Module Installation Guide (M2_3)

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2

Socket (M2_3) supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen4x4 (64 Gb/s).

* If M2_3 is occupied, PCIE5 slot will be disabled.

Installing the M.2_SSD (NGFF) Module

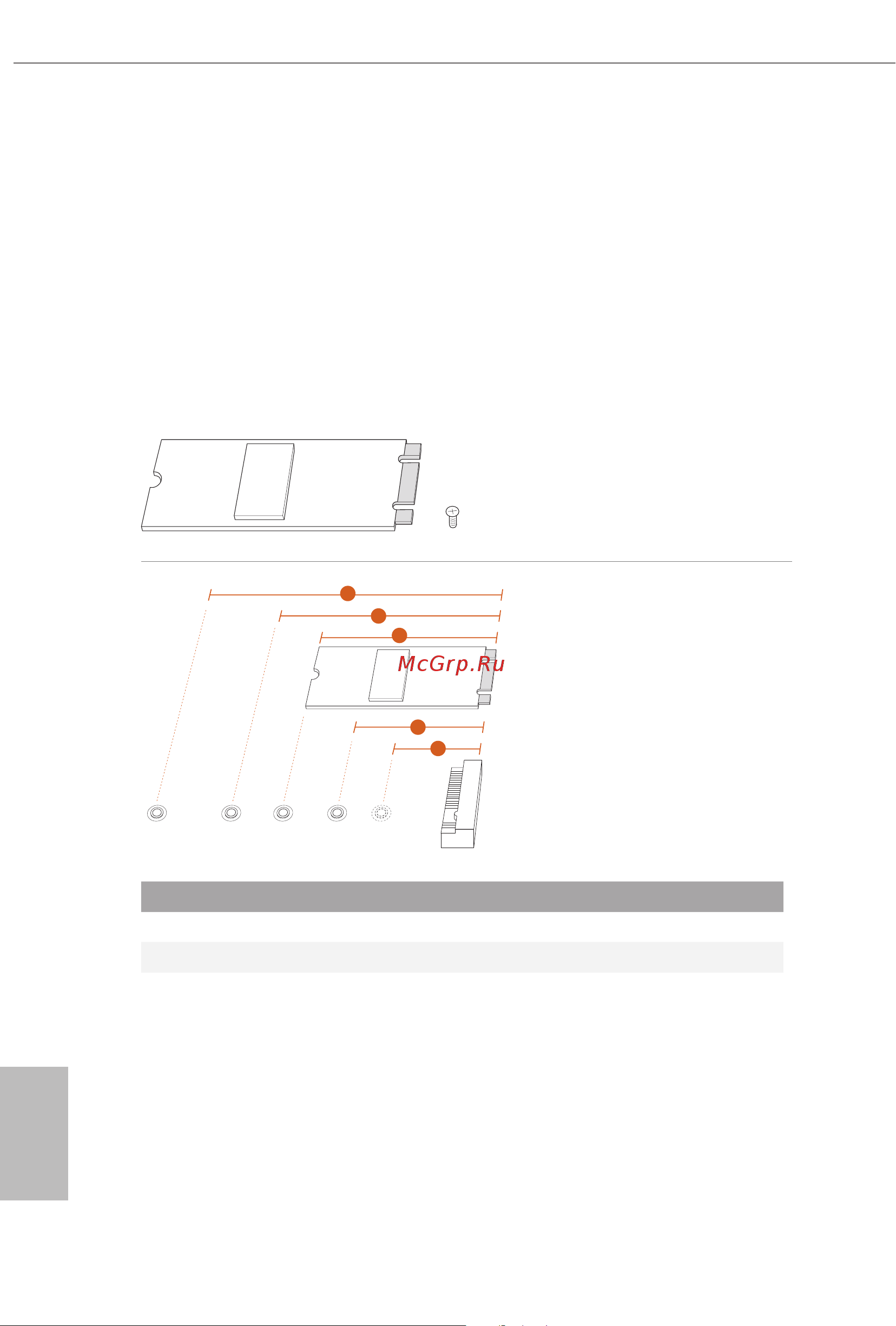

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

BCDE

No. 1 2 3 4 5

Nut Location A B C D E

PCB Length 3cm 4.2cm 6cm 8cm 11cm

Module Type Type2230 Type 2242 Type2260 Ty pe 2280 Ty pe 22110
