X570 Phantom Gaming X

2.12 M.2_SSD (NGFF) Module Installation Guide (M2_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2

Socket (M2_2) supports M.2 PCI Express module up to Gen4x4 (64 Gb/s).

Installing the M.2_SSD (NGFF) Module

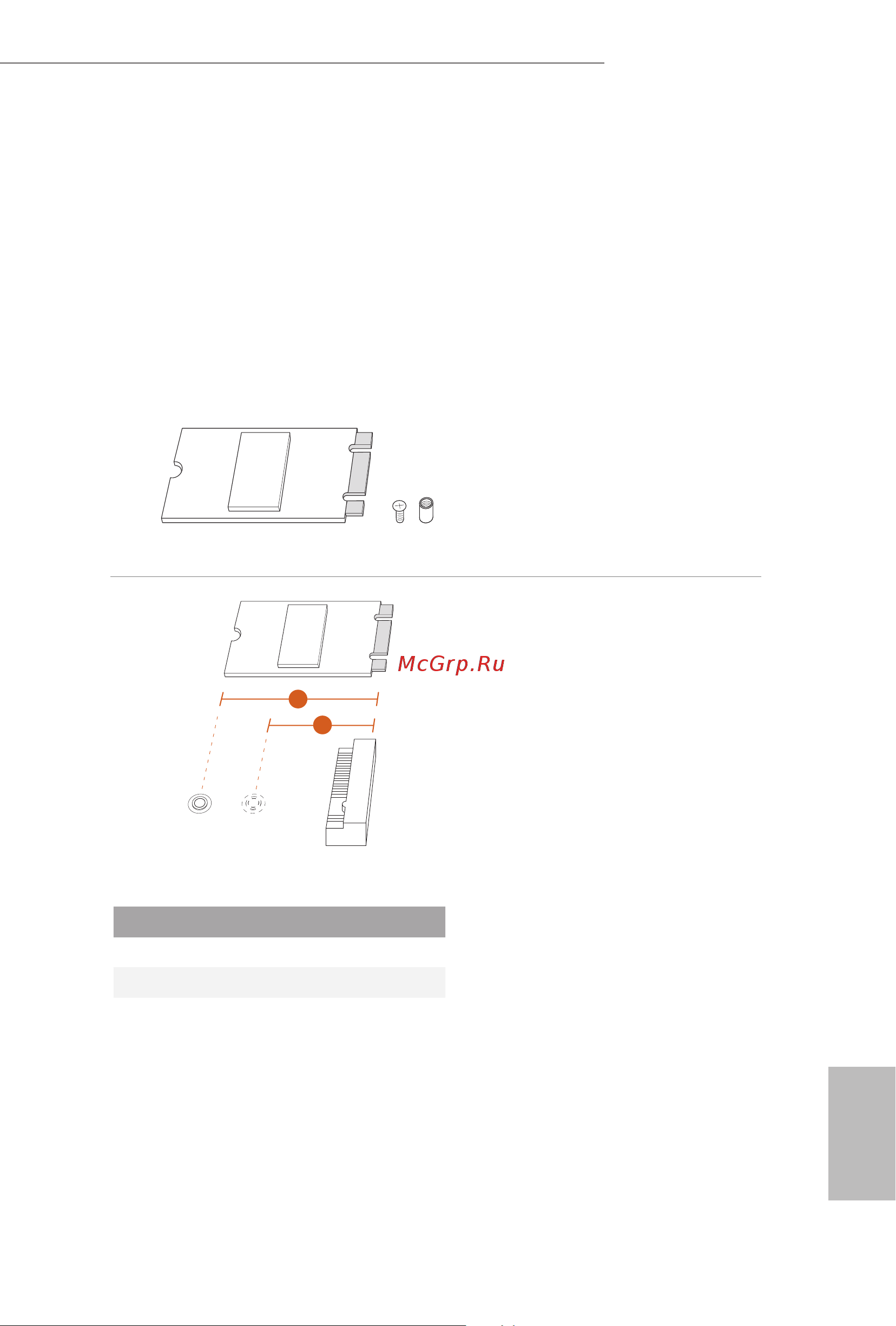

Step 1

is motherboard supports M.2_SSD

(NGFF) module type 2260 and 2280

only. Prepare a proper PCB lenth of

module, the screw and the stando.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type2260 Type 2280
