English
32

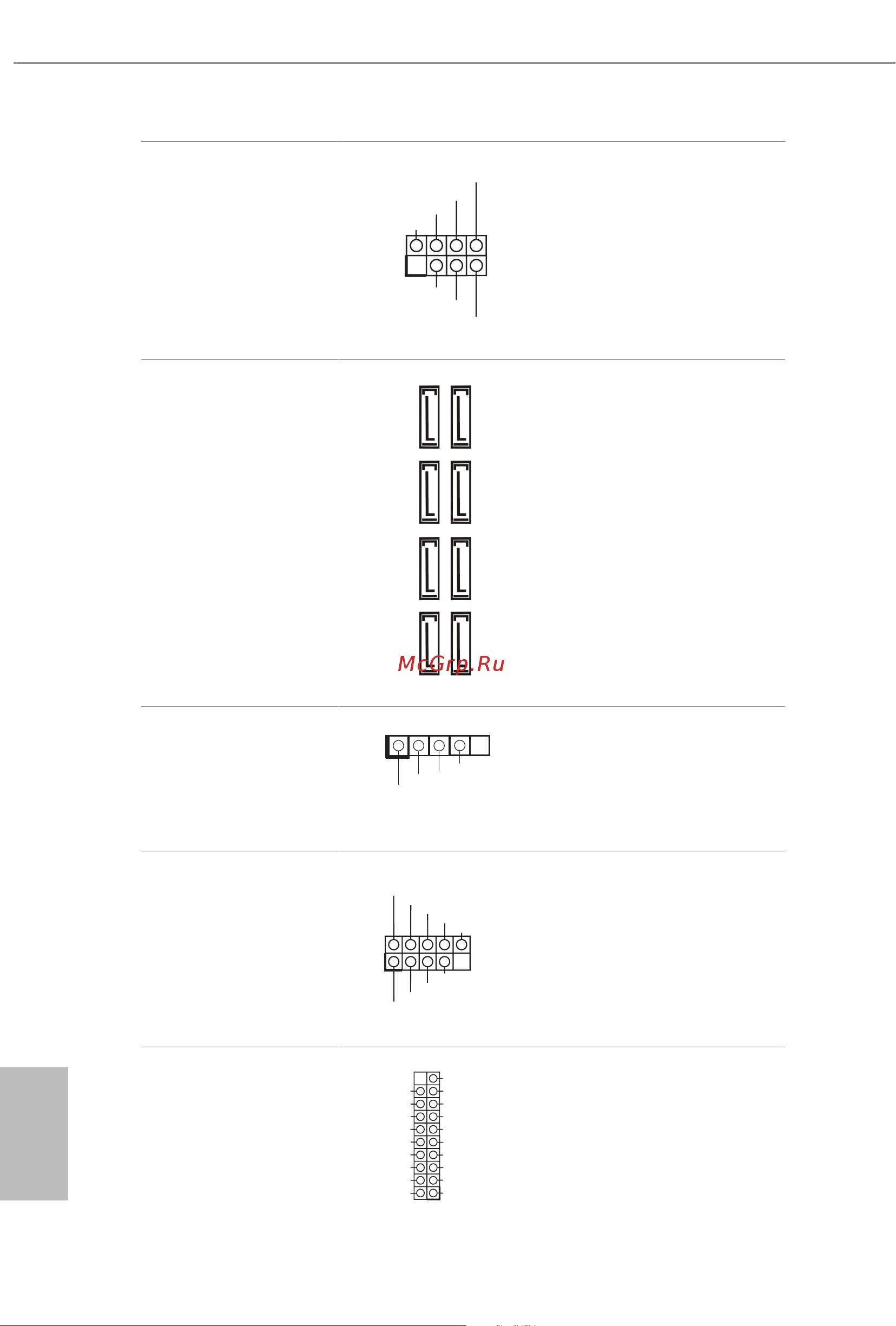

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.8, No. 26)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_1_2:
see p.8, No. 15)
(SATA3_3_4:
see p.8, No. 16)
(SATA3_5_6:
see p.8, No. 17)
(SATA3_7_8:
see p.8, No. 18)
ese eight SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
AMD LED Fan USB
Header
(4-pin USB_5)
(see p.8, No. 11)
is header is used for
connecting the USB
connector on the AMD
SR3 Heatsink.
USB 2.0 Headers
(9-pin USB_1_2)
(see p.8, No. 24)
(9-pin USB_3_4)
(see p.8, No. 25)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.2 Gen1 Header
(19-pin USB3_7_8)
(see p.8, No. 9)
ere is a header on this
motherboard. is USB
3.2 Gen1 header can
support two ports.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_4
SATA3_3
SATA3_6
SATA3_5
SATA3_7
SATA3_8
SATA3_2
SATA3_1
1
USB_PWR
P-
P+
GND
