English
36

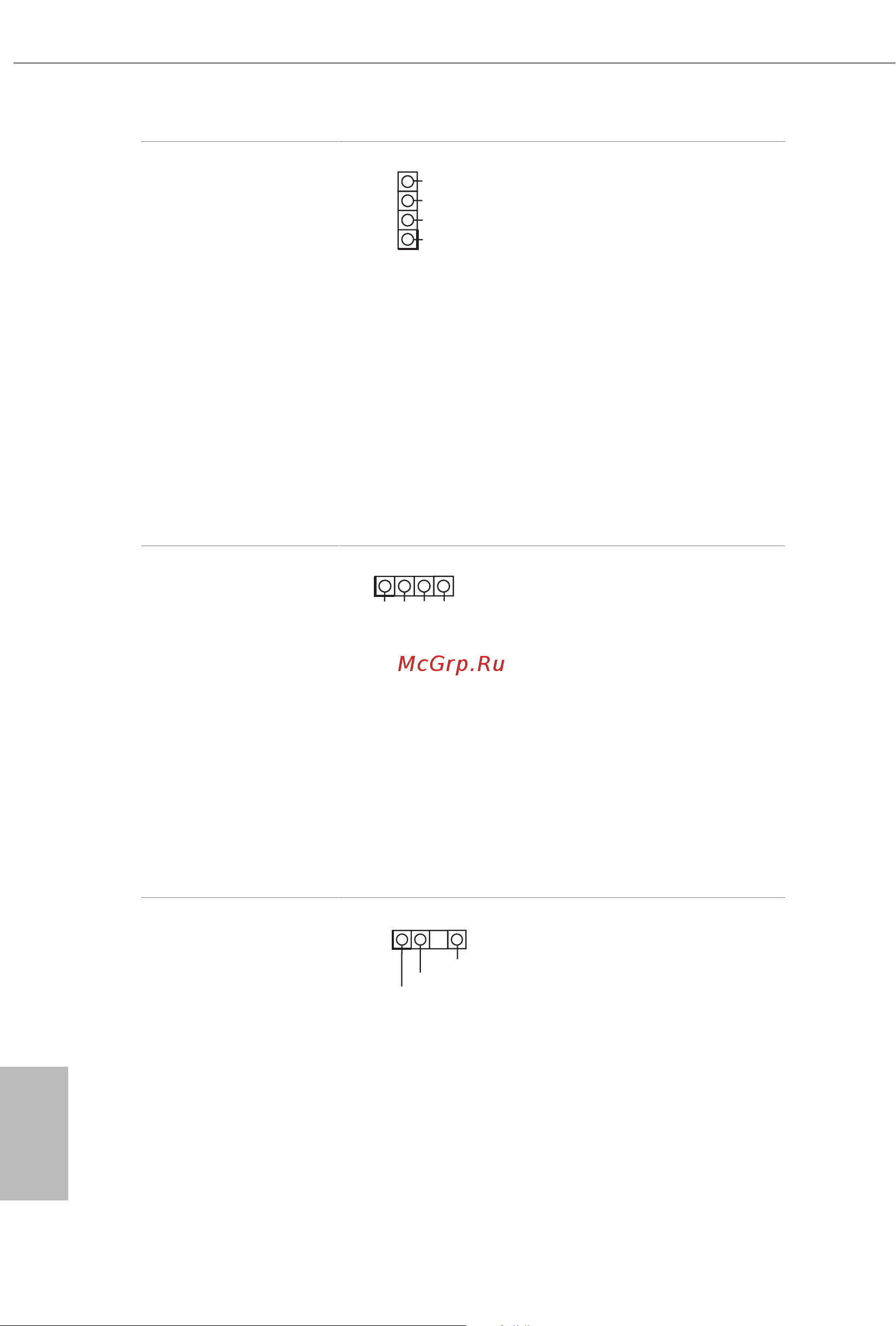

AMD FAN LED Header
(4-pin AMD_FAN_
LED1)
(see p.8, No. 12)
AMD FAN LED Header is used
to connect RGB LED
extension cable that comes with
AMD heatsink. e cable
connection allows users to choose
from various LED lighting
eects.
*e AMD Fan LED Header is
compatible with a regular RGB
LED stripe.
Caution: Never install the FAN
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
RGB LED Header
(4-pin RGB_HEADER1)
(see p.8, No. 28)
is RGB header is used to
connect RGB LED extension
cable which allows
users to choose from various LED
lighting eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 72 for
further instructions on this
header.
Addressable LED Header
(3-pin ADDR_LED1)
(see p.8, No. 29)
is header is used to connect
Addressable
LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 73 for
further instructions on this
header.
VOUT
DO_ADDR
GN
D
1
12V GRB
1
12V
G
R
B
1
