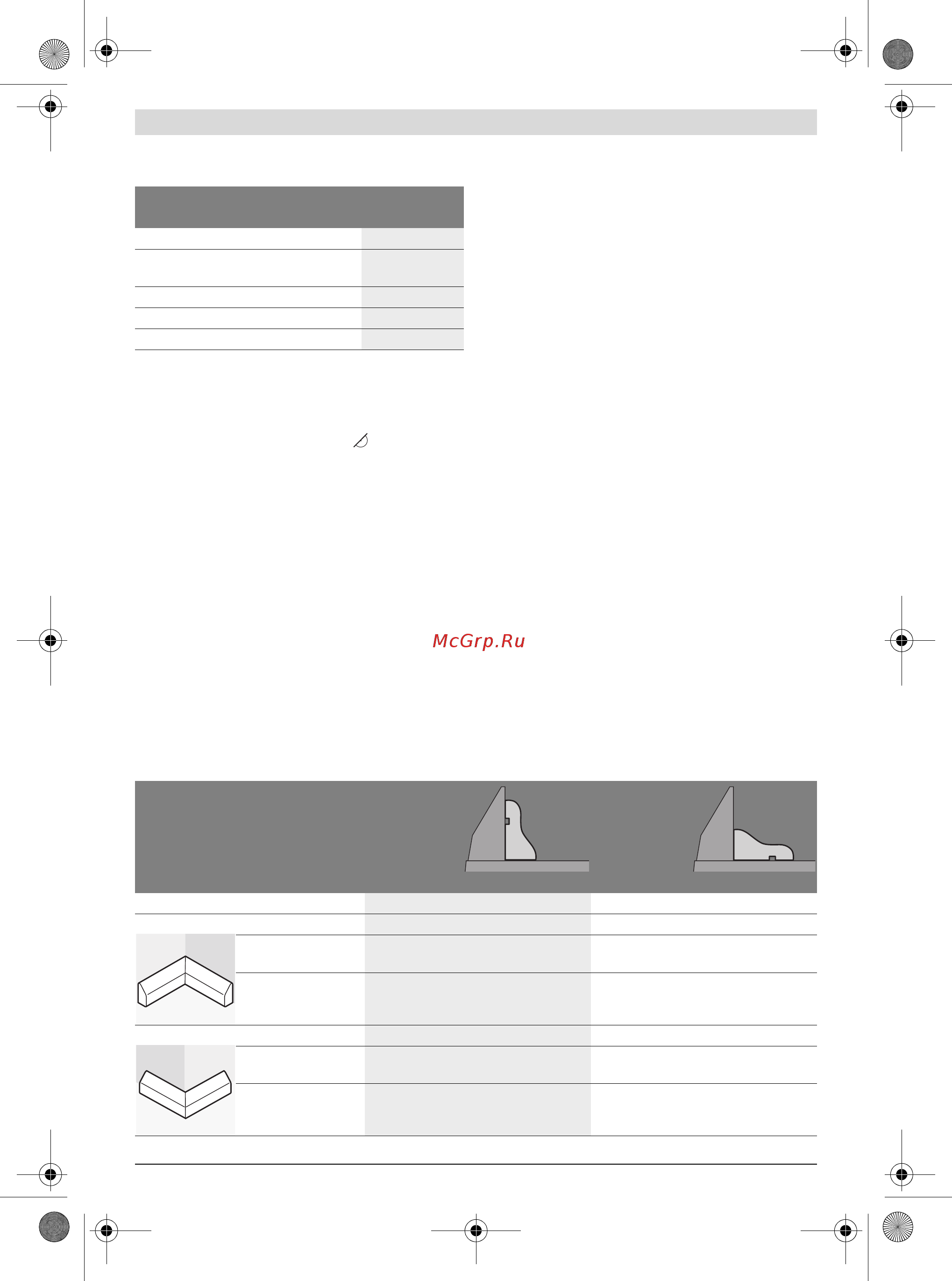

English | 45
Bosch Power Tools 1 609 92A 3S7 | (24.2.17)
Permissible Workpiece Dimensions
Maximum workpiece sizes:
Minimum workpiece sizes (= all workpieces that can be
clamped left or right from the saw blade with a screw clamp):
200 x 40 mm (length x width)
Cutting depth, max. (0°/0°): 95 mm
Replacing the Insert Plate (see figure L)
The red insert plate 24 can become worn after long use of the
power tool.
Replace defective insert plates.
– Bring the power tool into the chop and mitre saw working
position. (see “Working Position”, page 43)
–Unscrew screws 49 using a cross-head screwdriver and re-
move the old insert plate.
– Insert the new insert plate and and screw all screws 49 in
again.
– Set the vertical bevel angle to 0° and saw through the in-
sert plate.
– Afterwards, set the vertical bevel angle to 45° and saw into
the cut again.
This procedure achieves that the insert plate is as close as
possible to the teeth of the saw blade without touching it.
Sawing
Cutting Off
– Firmly clamp the workpiece as appropriate for its dimen-
sions.
– Adjust the requested mitre and/or bevel angle.
– Switch on the machine.
– Push button 17 and slowly guide the tool arm downward
with the handle 18.
– Saw through the workpiece applying uniform feed.
– Switch off the machine and wait until the saw blade has
come to a complete stop.
– Guide the tool arm slowly upward.
Special Workpieces
When sawing curved or round workpieces, these must be es-
pecially secured against slipping. At the cutting line, no gap
may exist between workpiece, fence and saw table.
Provide for special fixtures, if required.
Sawing Profile Strips/Mouldings (Floor and Ceiling Strips)
Profile strips/mouldings can be sawn in two different ways:
– Placed against the fence
– Lying flat on the saw table.
Always make trial cuts with the mitre angle setting first on
scrap wood.
Floor Strips/Mouldings
The following table contains instructions for sawing floor strips/mouldings.
Mitre/Bevel Angle Height x Width
[mm]
Horizontal Vertical
0° 0°
95 x 150
45° (leftward/right-
ward)
0°
95 x 90
0° 45°
60 x 150
45° (leftward) 45°
60 x 60
45° (rightward) 45°
60 x 100
Settings Placed
against the
fence
Lying flat on
the saw table
Bevel angle 0° 45°
Floor strip/moulding
Left side Right side Left side Right side
Inner corner Horizontal mitre angle
45° left 45° right 0° 0°
Positioning of work-
piece
Bottom edge on
saw table
Bottom edge on
saw table
Upper edge against
the fence
Bottom edge
against the fence
The finished work-
piece is located ...
... to the left of the
cut
... to the right of the
cut
... to the left of the
cut
... to the left of the
cut
Outer corner Horizontal mitre angle
45° right 45° left 0° 0°
Positioning of work-
piece
Bottom edge on
saw table
Bottom edge on
saw table
Bottom edge
against the fence
Upper edge against
the fence
The finished work-
piece is located ...
... to the left of the
cut
... to the right of the
cut
... to the right of the
cut
... to the right of the
cut
OBJ_BUCH-1688-007.book Page 45 Friday, February 24, 2017 12:15 PM
