Page 92 © SAMSUNG Electronics Co., Ltd.
CONVENIENT FEATURES
Viewing Message Indication
You can view all messages before returning them.

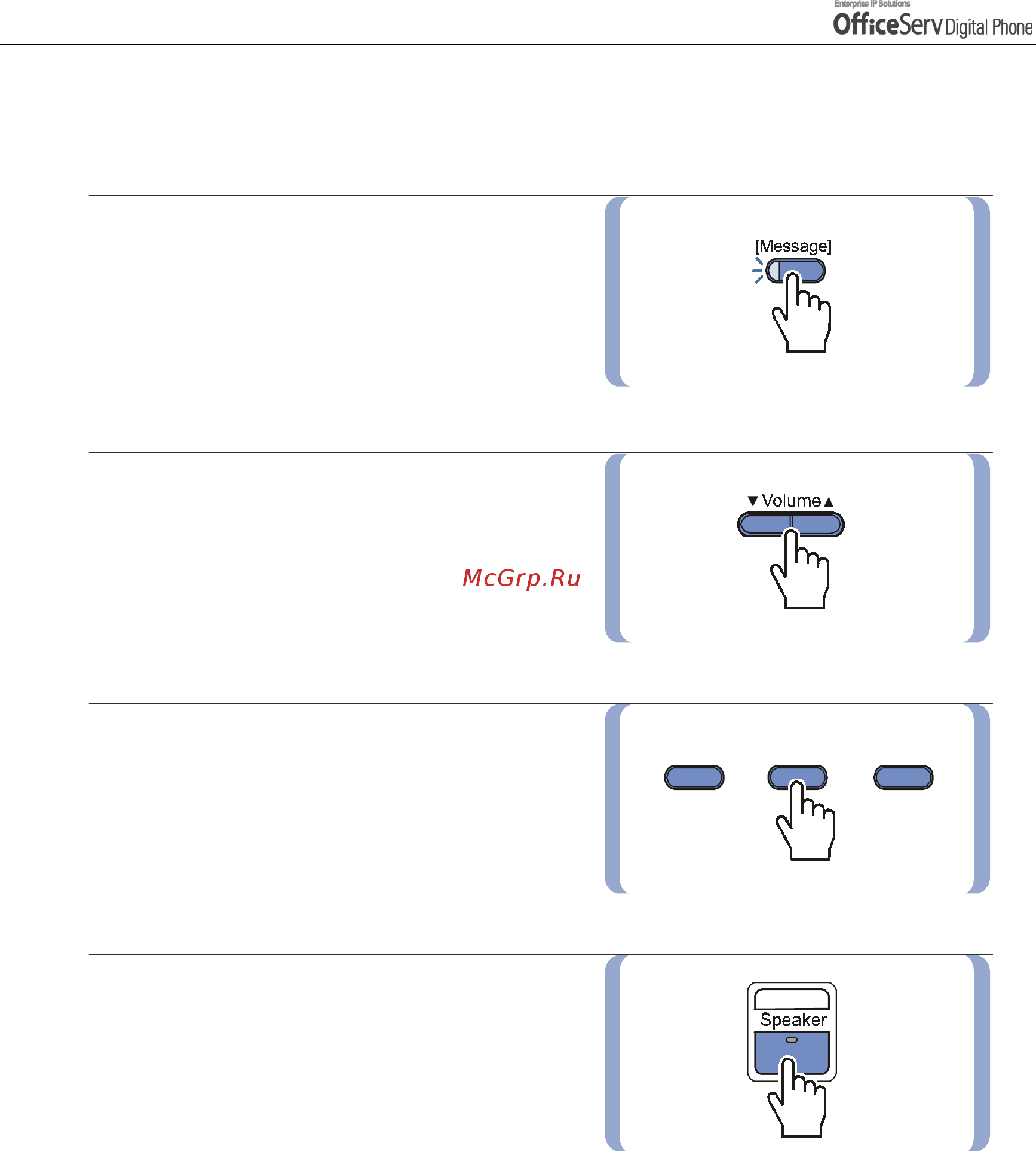

1.
Press the flashing
[Message]
button.
The first station that left its number
is displayed on the screen.
2.
Press the
[
!
!!
!
Volume
"
""
"
]
button
to scroll through the messages.
3.
Use the Soft buttons to return or cancel
the message or to move to the next
message.
4.
Press the
[Speaker]
or
[End]
button
after responding to the message left.
