Page 34 © SAMSUNG Electronics Co., Ltd.
BASIC FEATURES
2. Intercom Calls
This function is used when you want to make a call to other stations.
Assigning the Names to Your Extension
You can assign a name of up to 11 letters to your extension.
This allows other extension users with display stations to call you using the directory dial feature and to see
your name when you call them.

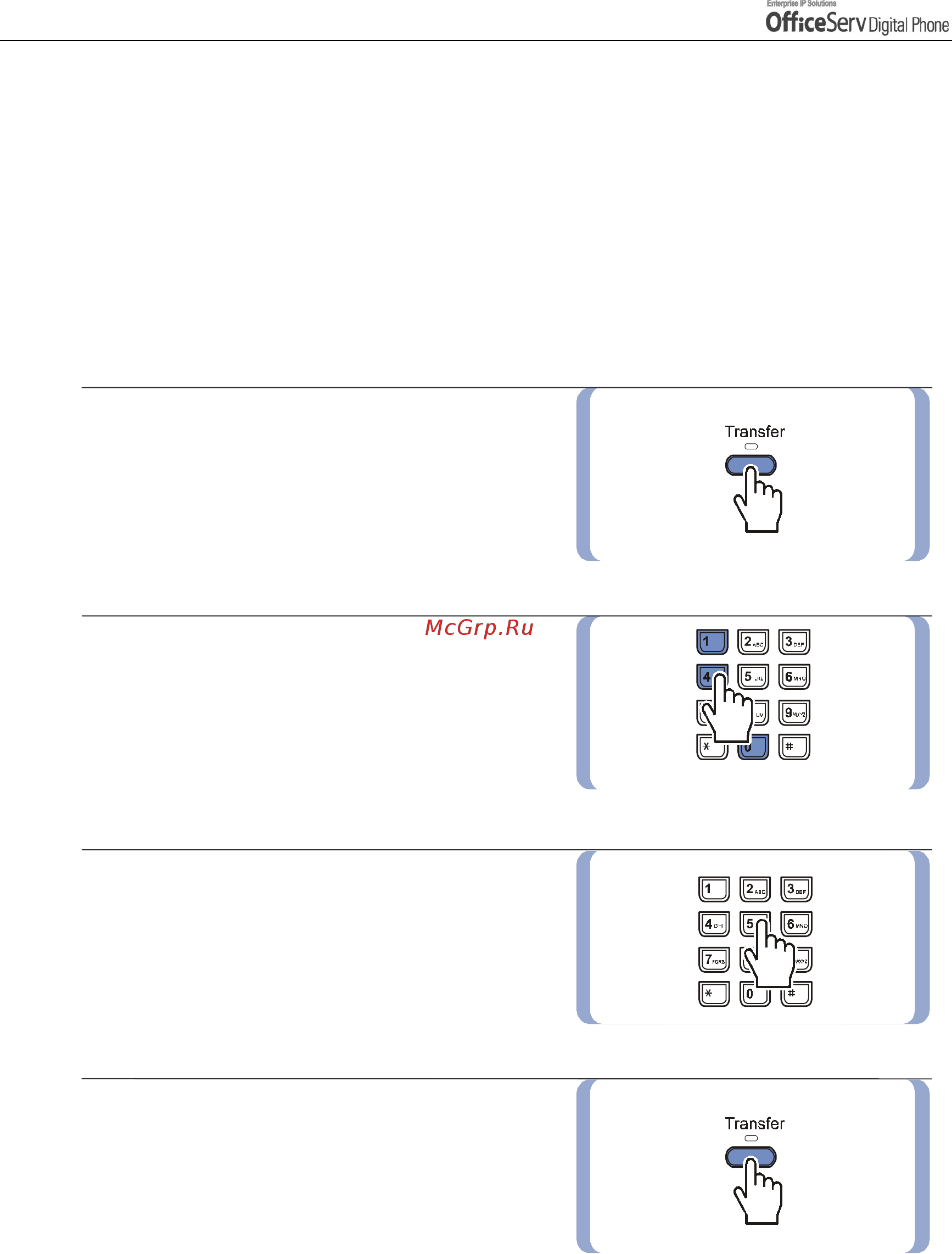

1.
Press the
[Transfer]
button.
2.
Press Dial
[1] [0] [4]
.
3.
Enter the name.
Refer to the ‘
Things You Should Know
’
in this guide for entering characters.
4.
Save the name by pressing
the
[Transfer]
button.
