5.

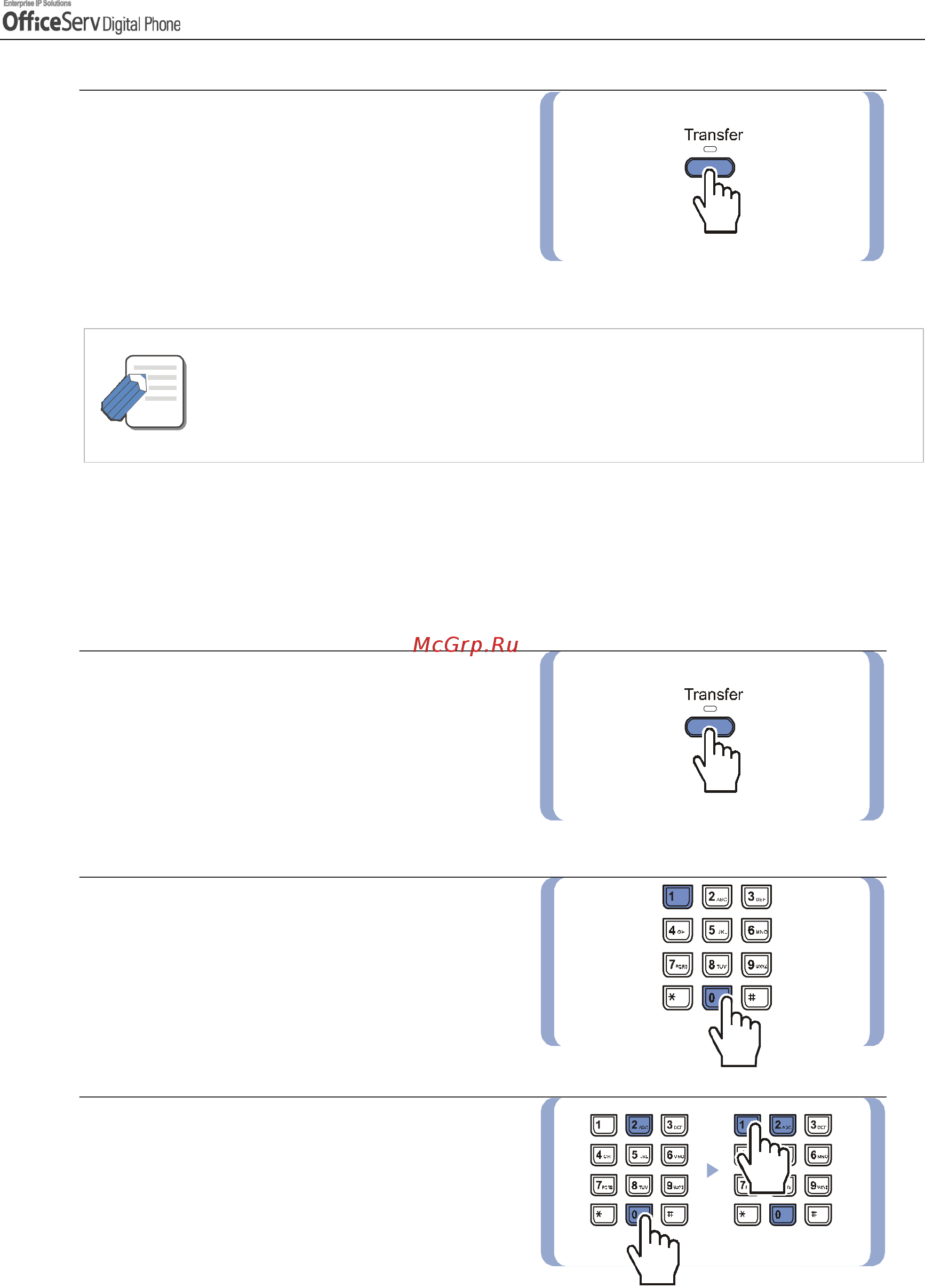

Press the
[Transfer]
button
and save
the selected entry.
- If your digital phones is programmed for the Voice Announce answering function,
and Call Forwarding No Answer is set, you must press the [Speaker] button or
[Send] button to answer before the no an answer timer expires. Otherwise, the call will
be forwarded.
Using the Headset / Handset (Headset Operation)
The DS-5021D/5014D digital phone user can switch between handset mode and headset mode. In headset
mode, you can answer or end a call by pressing the [Send] button or [End] button.
1.
Press the
[Transfer]
button.
2.
Dial
[1] [1] [0]
.
3.
To use the handset, dial
[0] [2] [0]
, and to
use the headset, dial
[0] [2] [1]
.
NOTE
