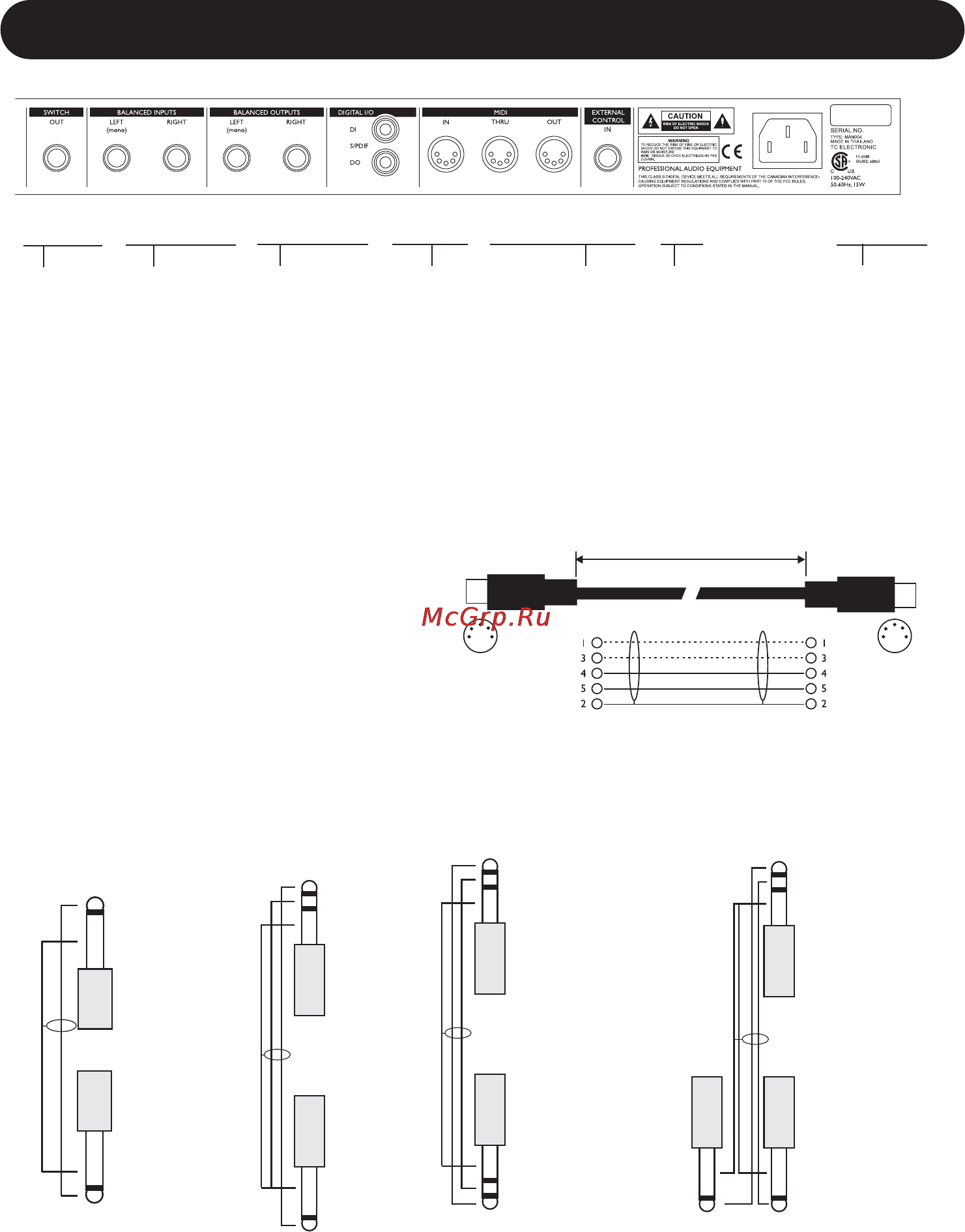

REAR PANEL
Balanced
Jack
Analog
Inputs
Balanced
Jack
Analog
Outputs
External
Control
MIDI
In, Out, Thru
Switch
Out
Relay
Jack
Digital
S/PDIF
Input/
Output
Power
Input
100 - 240V
Relay Jack Cable
- Y-Splitter Type
Jack Cable
Stereo to Mono
Jack Cable
Mono to Mono
TIP
RING
GND
GND
TIP
GND
TIP
MIDI Cable
DIN CONNECTOR
5POLE - MALE
45 degrees
DIN CONNECTOR
5POLE - MALE
45 degrees
max. 10m
SHIELDED CABLE (3 or 5 wires + screen)
Note!
The analog Input and Output connectors
on the G•Major are balanced 1/4” jacks.
Optimal connection to balanced equipment
is achieved using balanced cables.
However most guitar equipment is NOT
balanced and you will generally have no
problems using standard mono-to-mono
cables as illustrated below.
TIP
RING
GND
GND
TIP
GND
TIP
TIP
GND
TIP
RING
GND
GND
RING
TIP
Relay Jack Cable
- Stereo Jack Type
