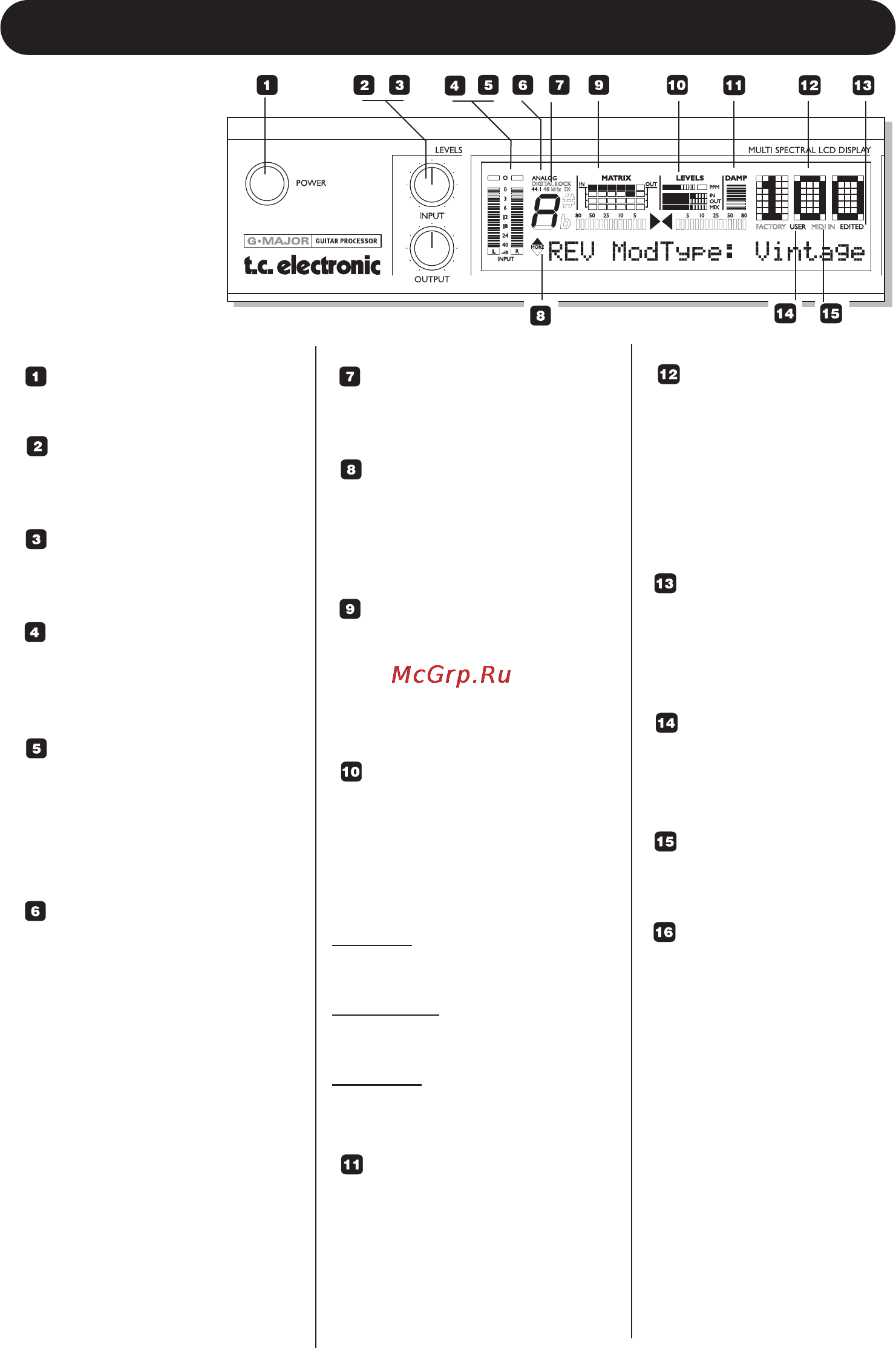

FRONT PANEL OVERVIEW
POWER KEY
On/Off switch for the unit.
INPUT LEVEL KNOB
Adjusts the Input level.
Range: 24dB
OUTPUT LEVEL KNOB
Adjusts the Output level.
Range: 24dB
INPUT METERS
Peak meter showing Input level.
The Meter range is: 0, -3, -6 ,
-12, -18, -24, -40dB.
INPUT OVERLOAD LEDS
The Overload LEDs indicates
one of two situations: The Input
level is too hot and therefore
overloading or there is an
internal DSP overflow.
INPUT TYPE -
ANALOG DIGITAL
Input selection is done in the I/O
section accessed by pressing
the I/O key.
Analog: Indicates analog Input
mode is selected.
Digital Lock: Indicates that
digital lock is achieved with a
device connected to the Digital
Input.
44.1/48kHz: Indicates whether
the achieved digital lock is at
44.1kHz or at 48kHz.
If a digital device is connected to
the digital Input on the G•Major
but no lock is achieved, the
Digital Lock indication will blink.
DI LED
Indicates that external digital
Clock Input is selected.
TUNER
The G•Major holds a Tuner. The
tuner is always active. When the
instrument is in tune the two
arrows will both be lit.
THE MATRIX
The G•Major holds 3 different
effect block routing options.
Serial, Semi Parallel and
Parallel. The matrix illustrates
the structure of the used routing.
LEVELS SECTION
These parameters refer only to
the block being edited.
PPM - Peak Program Meter:
Indicates the peak level of the
effect block currently being
edited.
IN Meter:
Indicates the block Effect Input
Level.
OUT Meter:
Indicates the Effect block Output
Level.
MIX Meter
Indicates the Effect Block
Mix level.
DAMP
If both the Noise Gate and the
Compressor is in use the DAMP
indicator will indicate the Noise
Gate attenuation when no Input
signal is present and the applied
compression where Input signal
is present.
PRESET NUMBER
When steady the currently
recalled preset number is
displayed. When
previewing presets the
number will blink until the
preset is recalled by
pressing the RECALL key.
EDITED
When this LED is lit the
currently recalled preset
has been edited but not
yet stored.
FACTORY/USER
Indicates whether you are
operating in the Factory or
in the User bank.
MIDI IN
Indicates incoming MIDI
information.
SELECT (Outer)
- ADJUST (Inner) wheels
The two wheels are used
to handle mix parameters
from each effect block.
Turn the outer SELECT
wheel to scroll between
mix parameters and use
the ADJUST wheel to set
value. After 2 seconds
untouched, the display
returns to its previous
state.
