Tc Electronic G-SHARP [14/31] Serial setup

TYPICAL SETUPS

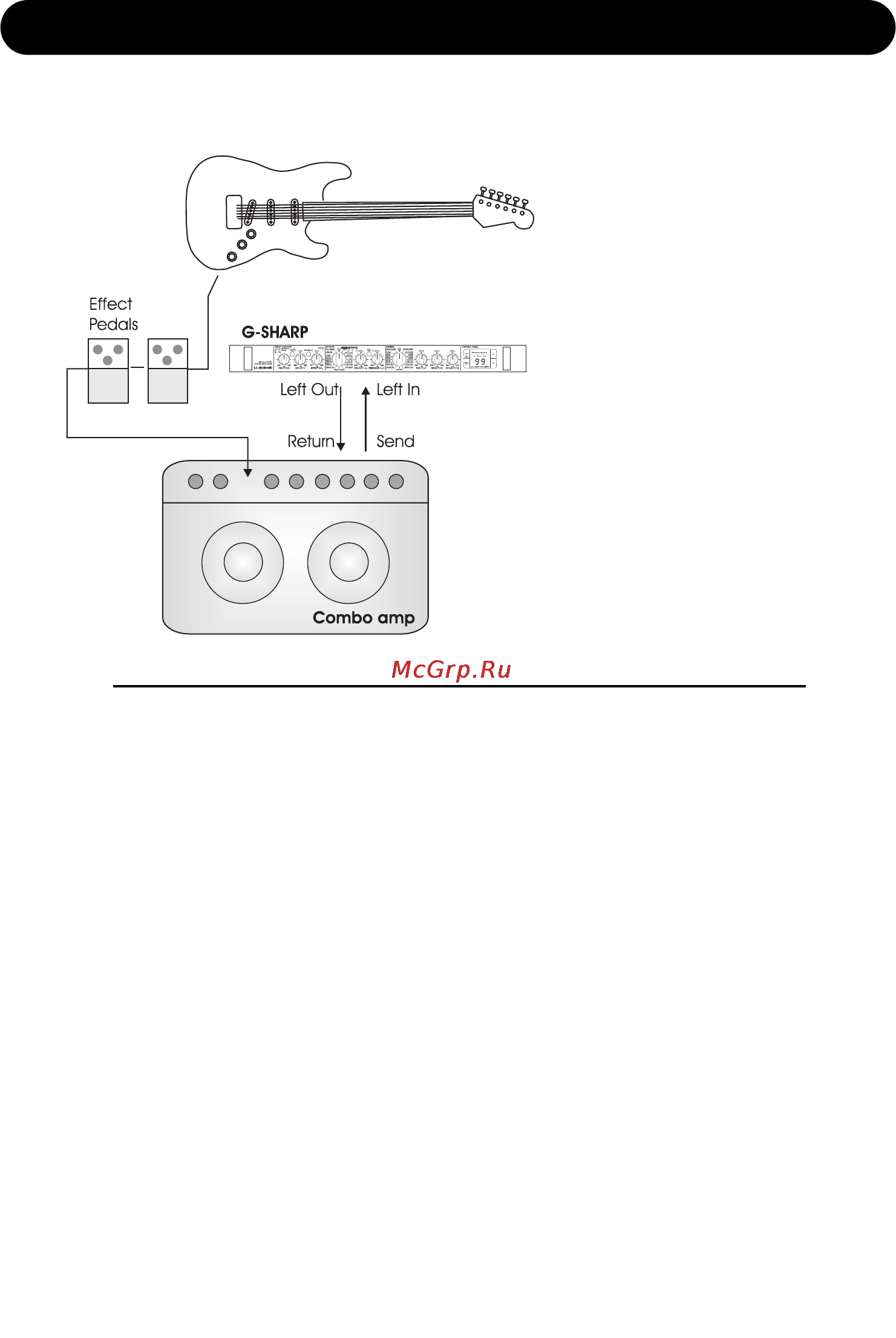

In this setup the G-Sharp is connected to

the effects loop of an amplifier.

• Connect guitar to drive pedals, wah etc. and

into the amps input.

• Connect the effect loop send to the left input

of the G-Sharp.

• Connect the G-Sharp left output to the return

of the amplifier.

• Set Routing to serial or parallel.

• Set Input level to 12 o’clock position.

• Set EFFECTS MIX to 12 o’clock position.

• Set REVERB MIX to 12 o’clock position.

• Adjust/fine-tune the G-Sharp Input level so

the Input LED on the front panel often is

yellow but only rarely peaks at Red color.

• Select Effects and Reverb type using the

selectors on the front panel.

• Now fine-tune EFFECTS and REVERB mix

as well as parameters.

The setup is mono but could be expanded to

stereo if the Right output of the G-Sharp is

connected to a separate amp.

Serial Setup
