6

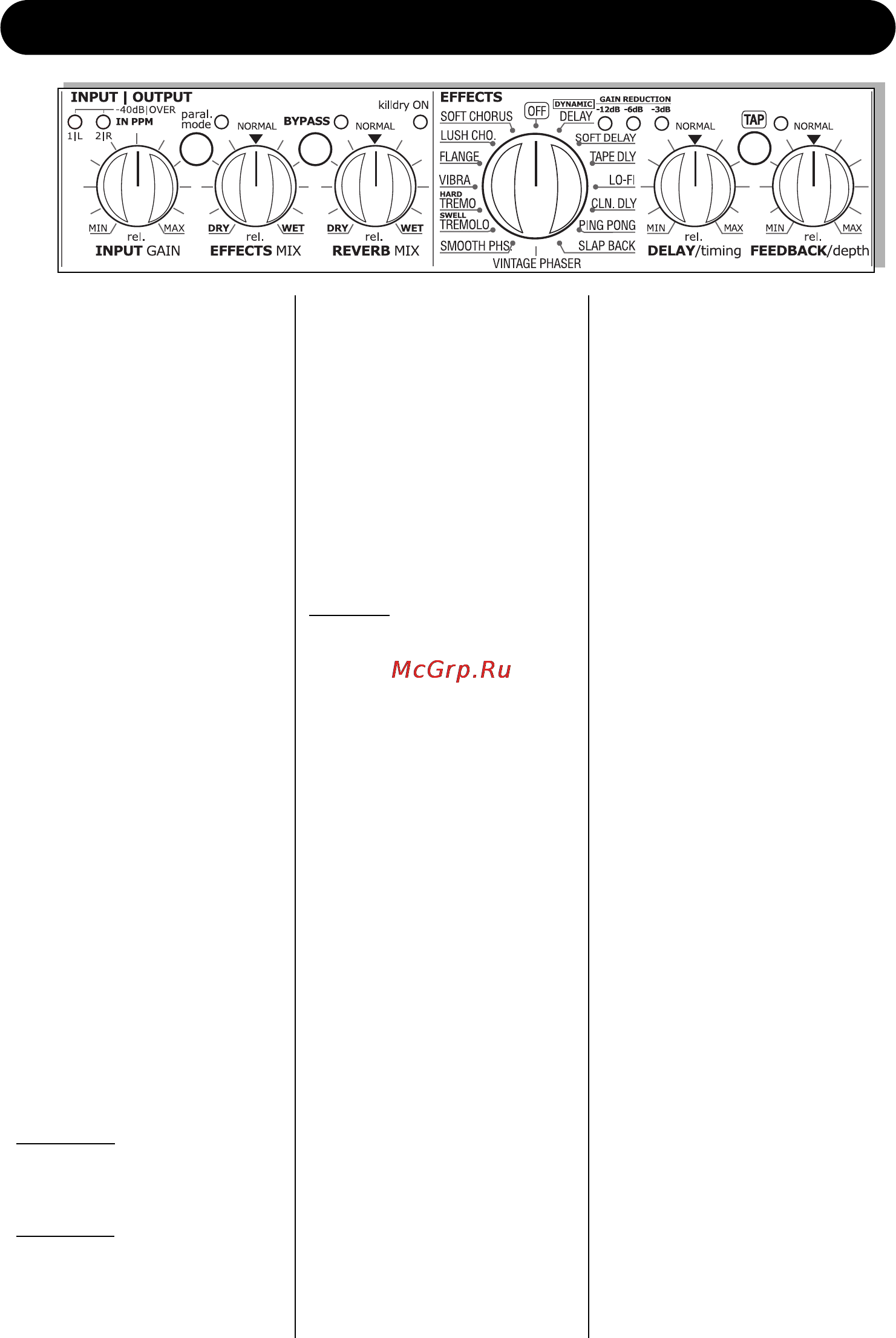

FRONT PANEL OVERVIEW
INPUT GAIN
Adjusts the Input gain.
1/L and 2/R LEDS
3 color LEDs indicating Input
level on Left and Right Inputs.
Green: -40dB
Yellow: -6dB
Red: -1dB
EFFECTS MIX
Adjusts the mix between the
wet and the dry signal for the
Effects engine.
REVERB MIX
Adjusts the mix between the
wet and the dry signal for the
Reverb engine.
Serial mode/Parallel mode
In Serial mode the signal
passes the Effects engine
before the Reverb engine. In
Parallel mode the signal is
processed by both engines in
parallel. - Which routing to use
is a matter of taste and
application. Read more about
routings on pages 10-11.
BYPASS button and LED
Bypass function varies
depending on the selected
Killdry mode.
Killdry “on”:
The BYPASS key operates as
a mute function.
Killdry “of
f”:
The bypass function simply
passes the source signal
unprocessed to output.
EFFECTS selector
Selects between the 15 effects
& Off in the Effects engine.
DELAY/TIMING
Tap the global tempo using the
TAP key by tapping quarter
notes. Now use the timing
knob to multiply the tapped
tempo.
The Timing range can be set
from 0.5 to 2.
Example:
• Tap quarter notes at Tempo
120 BPM. This equals 500
milliseconds.
• The range of the TIMING
knob is 0.5 to 2 giving you a
Delay time varying from:
250ms to 1000ms.
Note that the Slapback
Delay type has a shorter
range, as this Delay type by
nature is a short Delay.
FEEDBACK/DEPTH
Controls the Feedback or
Depth parameter depending of
the selected effect.
Delay : Feedback
Phaser : Depth
Tremolo : Depth
Flange : Depth
Chorus : Depth
GAIN REDUCTION
-3, -6, -12 LEDs
These LEDs indicate the
applied gain-reduction on the
delay repeats when Dynamic
Delay type is selected.
