TYPICAL SETUPS

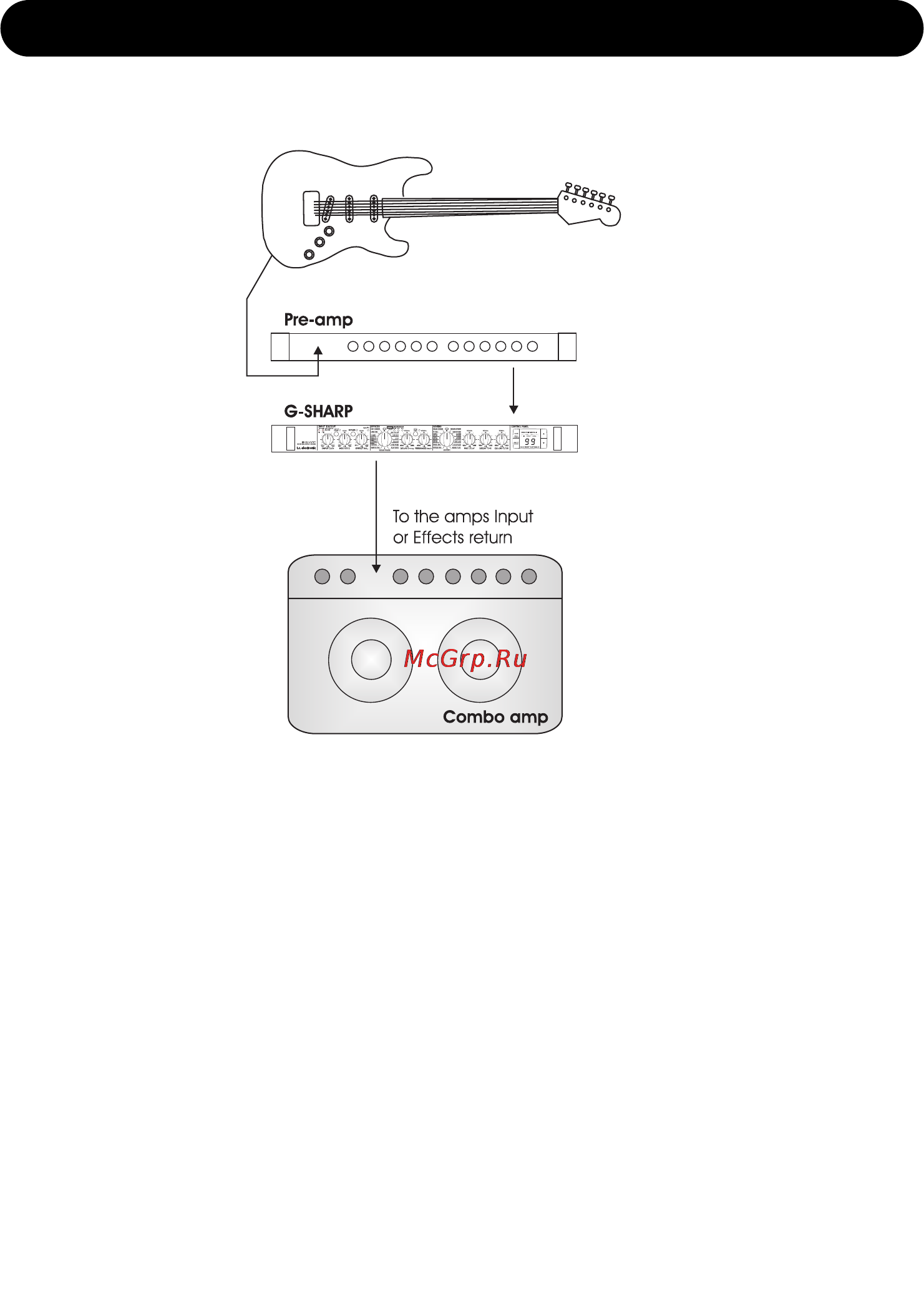

Preamp + combo
This is a basic setup if you are using a
preamp separate from the one in your amp.
• Connect the guitar to the input of the pre-
amp.
• Connect the pre-amps output to the G-Sharp
input and the G-Sharp output to either the
input or the effects return on your amplifier.
• Set Routing to serial or parallel.
• Set Input level to 12 o’clock position.
• Set EFFECTS MIX to 12 o’clock position.
• Set REVERB MIX to 12 o’clock position.
• Adjust/fine-tune the G-Sharp Input level so
the Input LED on the front panel often is
yellow but only rarely peaks at red color.
• Select Reverb type and Effects type using
the selectors on the front panel.
• Now fine-tune EFFECTS and REVERB mix
as well as parameters.
The setup is mono but could be expanded to
stereo if the right output of the G-Sharp is
connected to a separate amp.
You can of course add effect pedals in front of
the preamp as you wish.
