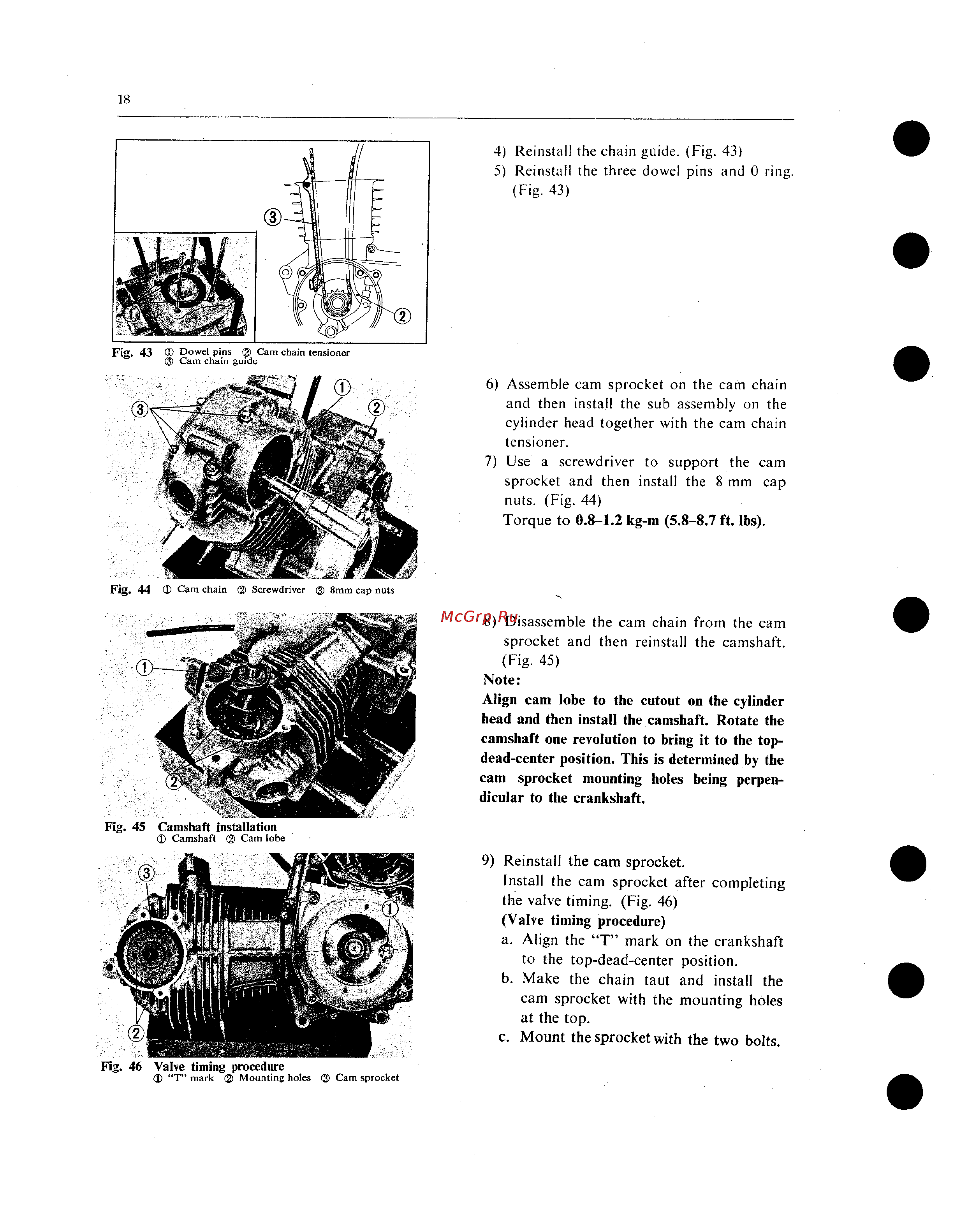

18 4 Reinstall the chain guide Fig 43 5 Reinstall the three dowel pins and 0 ring Fig 43 Fig 43 D Dowel pins Q Cam chain tensioner 3 Cam chain guide 6 Assemble cam sprocket on the cam chain and then install the sub assembly on the cylinder head together with the cam chain tensioner 7 Use a screwdriver to support the cam sprocket and then install the 8 mm cap nuts Fig 44 Torque to 0 8 1 2 kg m 5 8 8 7 ft lbs Fig 44 D Cam chain 2 Screwdriver 8mm cap nuts 8 Disassemble the cam chain from the cam sprocket and then reinstall the camshaft Fig 45 Note Align cam lobe to the cutout on the cylinder head and then install the camshaft Rotate the camshaft one revolution to bring it to the top dead center position This is determined by the cam sprocket mounting holes being perpen dicular to the crankshaft 9 Reinstall the cam sprocket Install the cam sprocket after completing the valve timing Fig 46 Valve timing procedure a Align the T mark on the crankshaft to the top dead center position b Make the chain taut and install the cam sprocket with the mounting holes at the top c Mount the sprocket with the two bolts Fig 46 Valve timing procedure I T mark 2 Mounting holes 0 Cam sprocket
