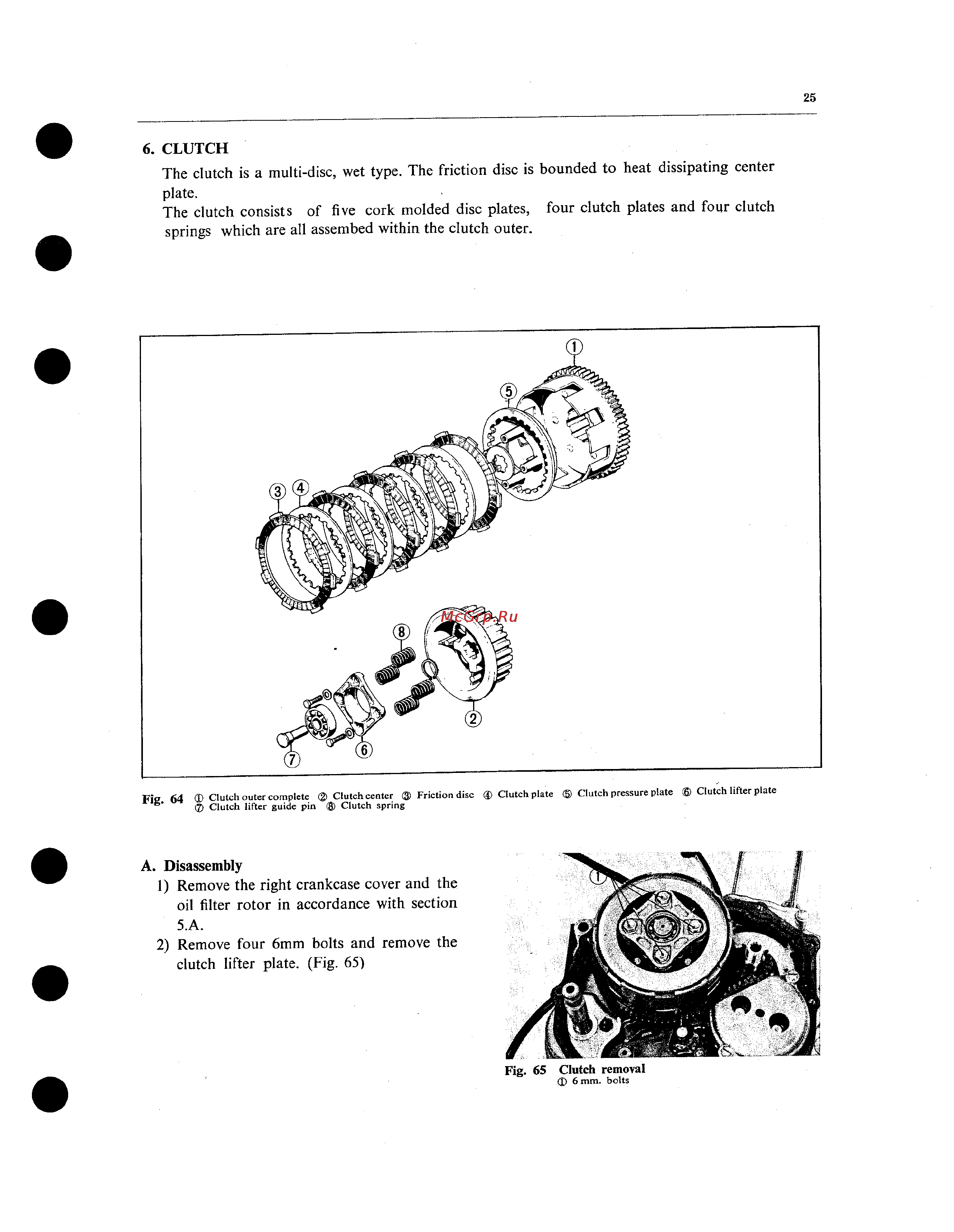

25 6 CLUTCH The clutch is a multi disc wet type The friction disc is bounded to heat dissipating center plate The clutch consists of five cork molded disc plates four clutch plates and four clutch springs which are all assembed within the clutch outer Fis 64 D Clutch outer complete Clutch center Friction disc Clutch plate Clutch pressure plate Clutch lifter plate J Clutch lifter guide pin Clutch spring A Disassembly 1 Remove the right crankcase cover and the oil filter rotor in accordance with section 5 A 2 Remove four 6mm bolts and remove the clutch lifter plate Fig 65 Fig 65 Clutch removal Q 6 mm bolts
