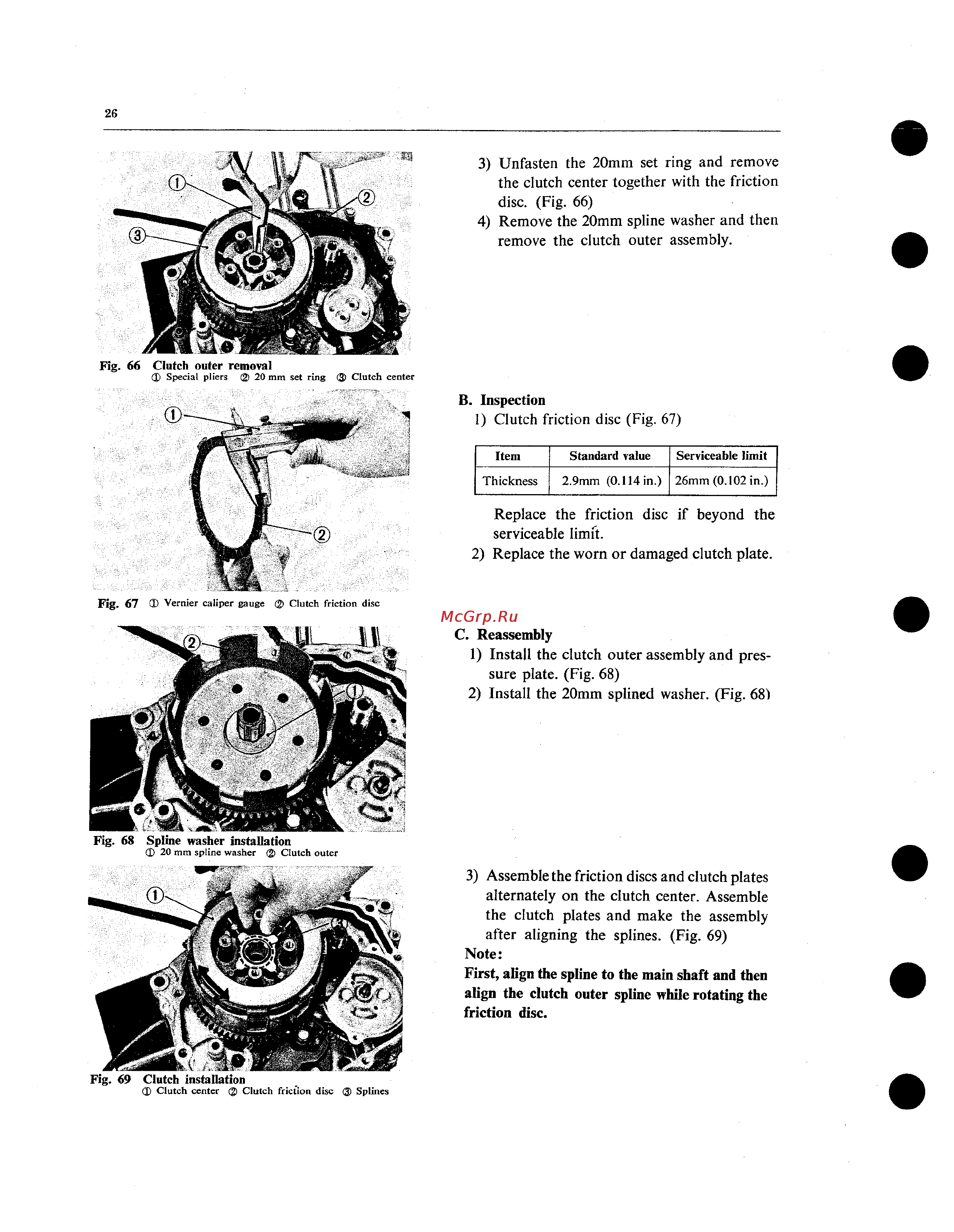

26 3 Unfasten the 20mm set ring and remove the clutch center together with the friction disc Fig 66 4 Remove the 20mm spline washer and then remove the clutch outer assembly Fig 66 Clutch outer removal d Special pliers 2 20 mm set ring Clutch center B Inspection 1 Clutch friction disc Fig 67 Item Standard value Serviceable limit Thickness 2 9mm 0 114 in 26mm 0 102 in Replace the friction disc if beyond the serviceable limit 2 Replace the worn or damaged clutch plate Fig 67 D Vernier caliper gauge g Clutch friction disc C Reassembly 1 Install the clutch outer assembly and pres sure plate Fig 68 2 Install the 20mm splined washer Fig 68 Fig 68 Spline washer installation Q 20 mm spline washer 2 Clutch outer 3 Assemble the friction discs and clutch plates alternately on the clutch center Assemble the clutch plates and make the assembly after aligning the splines Fig 69 Note First align the spline to the main shaft and then align the clutch outer spline while rotating the friction disc Fig 69 Clutch installation d Clutch center 2 Clutch friction disc Splines
