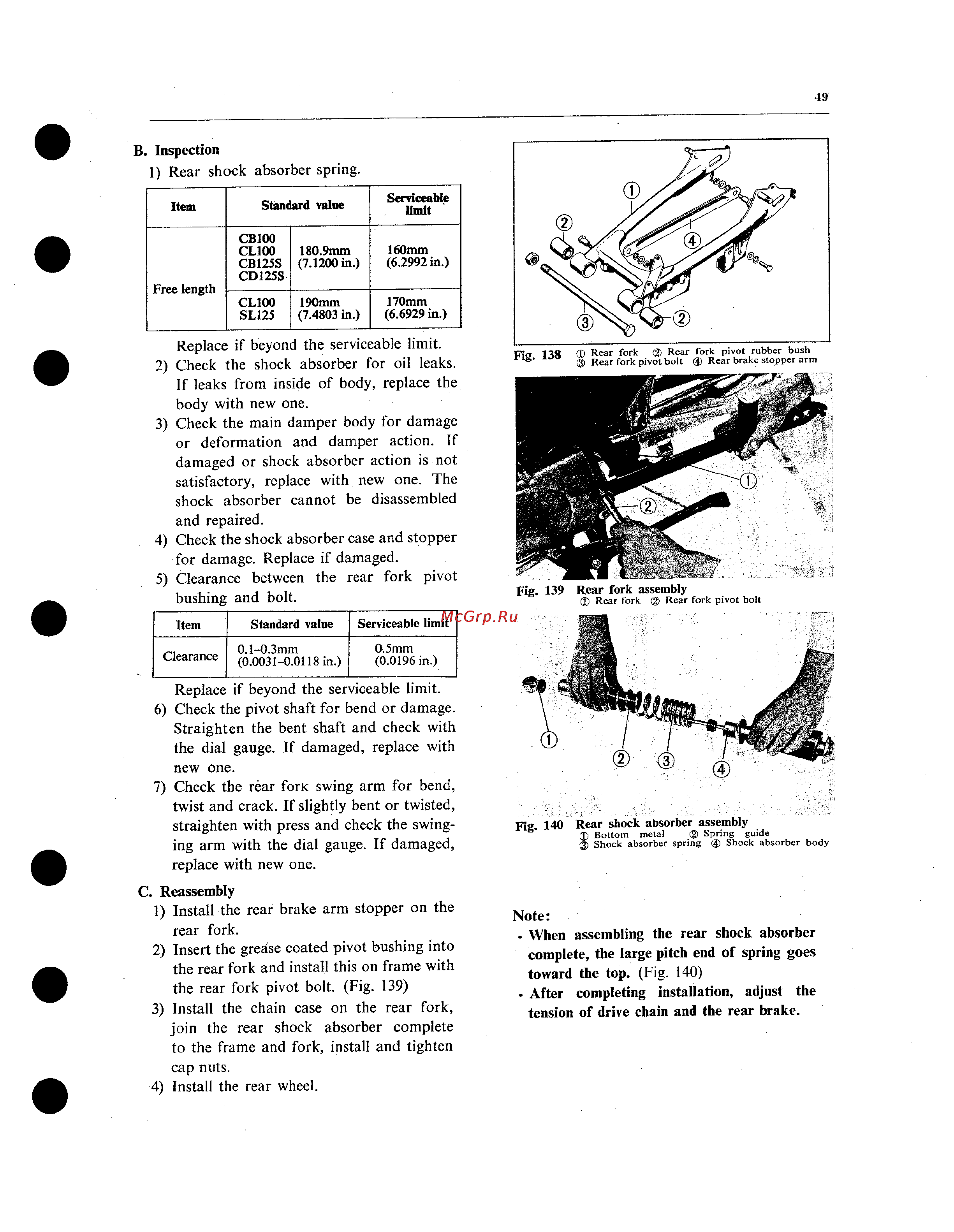

49 B Inspection 1 Rear shock absorber spring Item Serviceable limit Standard value CB100 CL100 CB125S CD125S 180 9mm 7 1200 in 160mm 6 2992 in CL100 SL125 190mm 7 4803 in 170mm 6 6929 in Free length Replace if beyond the serviceable limit 2 Check the shock absorber for oil leaks If leaks from inside of body replace the body with new one 3 Check the main damper body for damage or deformation and damper action If damaged or shock absorber action is not satisfactory replace with new one The shock absorber cannot be disassembled and repaired 4 Check the shock absorber case and stopper for damage Replace if damaged 5 Clearance between the rear fork pivot bushing and bolt Item Standard value Serviceable limit Clearance 0 1 0 3mm 0 0031 0 0118 in 0 5mm 0 0196 in Replace if beyond the serviceable limit 6 Check the pivot shaft for bend or damage Straighten the bent shaft and check with the dial gauge If damaged replace with new one 7 Check the rear fork swing arm for bend twist and crack If slightly bent or twisted straighten with press and check the swing ing arm with the dial gauge If damaged replace with new one C Reassembly 1 Install the rear brake arm stopper on the rear fork 2 Insert the grease coated pivot bushing into the rear fork and install this on frame with the rear fork pivot bolt Fig 139 3 Install the chain case on the rear fork join the rear shock absorber complete to the frame and fork install and tighten cap nuts 4 Install the rear wheel 148 D Rear fork Rear fork pivot rubber bush Rear fork pivot bolt Rear brake stopper arm Fig 140 Rear shock absorber assembly 6 0 Bottom metal Spring guide 3 Shock absorber spring Shock absorber body Note When assembling the rear shock absorber complete the large pitch end of spring goes toward the top Fig 140 After completing installation adjust the tension of drive chain and the rear brake
