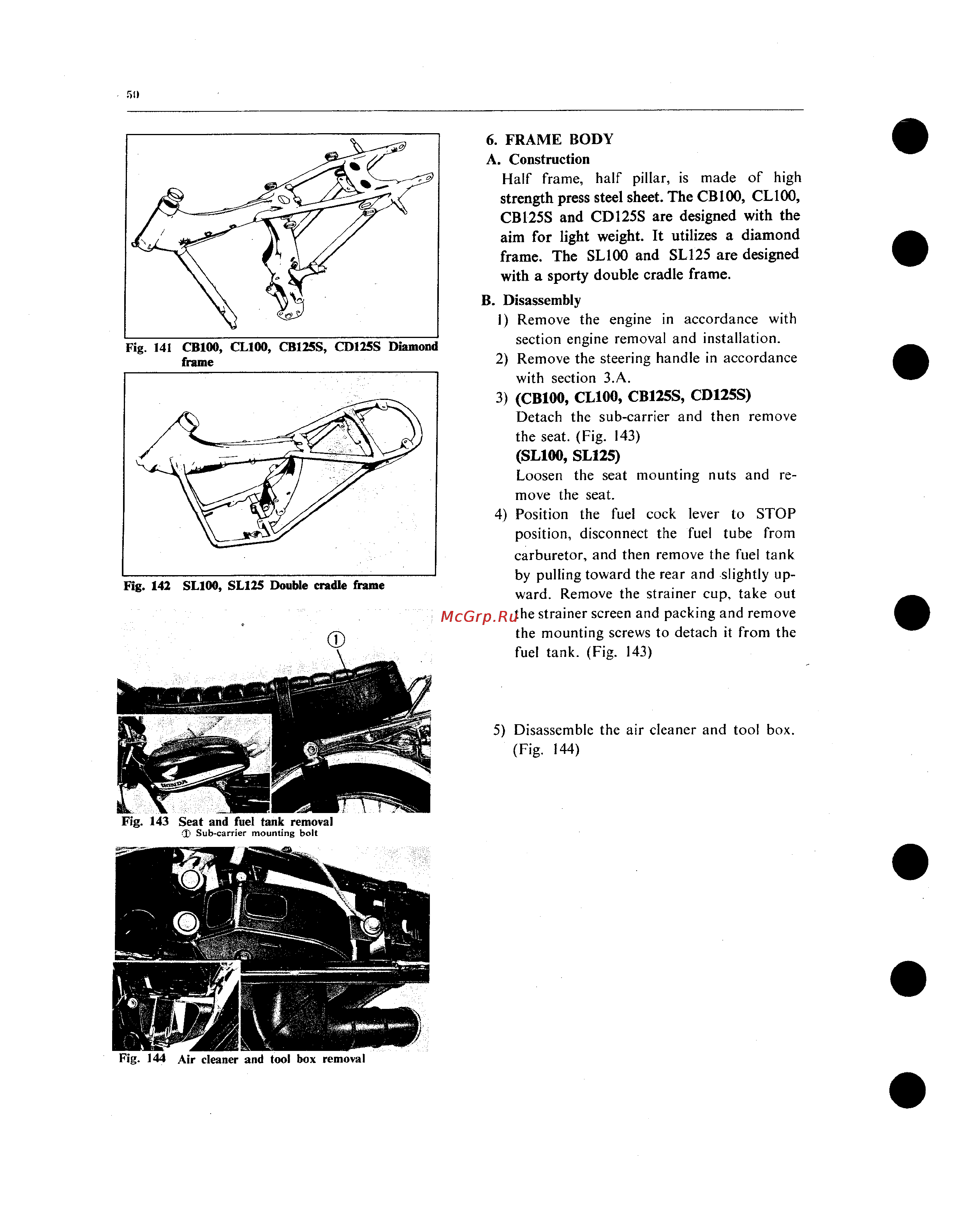

51 6 FRAME BODY A Construction Half frame half pillar is made of high strength press steel sheet The CB100 CL 100 CB125S and CD125S are designed with the aim for light weight It utilizes a diamond frame The SL100 and SL125 are designed with a sporty double cradle frame Fig 141 CB100 CL1OO CB125S CD125S Diamond frame Fig 142 SL1OO SL125 Double cradle frame B Disassembly 1 Remove the engine in accordance with section engine removal and installation 2 Remove the steering handle in accordance with section 3 A 3 CB100 CL100 CB125S CD125S Detach the sub carrier and then remove the seat Fig 143 SL100 SL125 Loosen the seat mounting nuts and re move the seat 4 Position the fuel cock lever to STOP position disconnect the fuel tube from carburetor and then remove the fuel tank by pulling toward the rear and slightly up ward Remove the strainer cup take out the strainer screen and packing and remove the mounting screws to detach it from the fuel tank Fig 143 5 Disassemble the air cleaner and tool box Fig 144 Fig 143 Seat and fuel tank removal D Sub carrier mounting bolt Fig 144 Air cleaner and tool box removal
