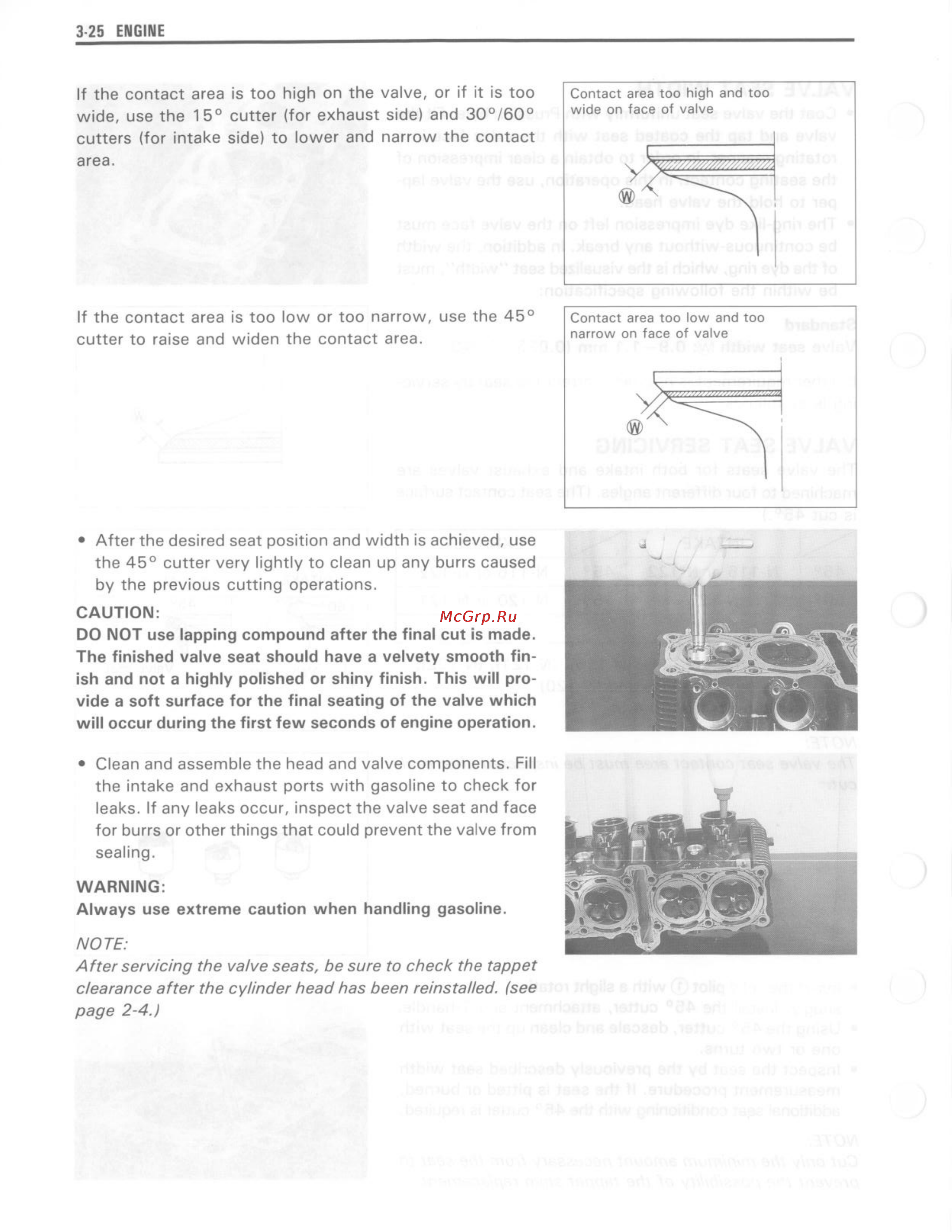

3 25 ENGINE If the contact area is too high on the valve or if it is too wide use the 15 cutter for exhaust side and 30 60 cutters for intake side to lower and narrow the contact area Contact area too high and too wide on face of valve If the contact area is too low or too narrow use the 45 cutter to raise and widen the contact area Contact area too low and too narrow on face of valve After the desired seat position and width is achieved use the 45 cutter very lightly to clean up any burrs caused by the previous cutting operations CAUTION DO NOT use lapping compound after the final cut is made The finished valve seat should have a velvety smooth fin ish and not a highly polished or shiny finish This will pro vide a soft surface for the final seating of the valve which will occur during the first few seconds of engine operation Clean and assemble the head and valve components Fill the intake and exhaust ports with gasoline to check for leaks If any leaks occur inspect the valve seat and face for burrs or other things that could prevent the valve from sealing WARNING Always use extreme caution when handling gasoline NOTE After servicing the valve seats be sure to check the tappet clearance after the cylinder head has been reinstalled see page 2 4
