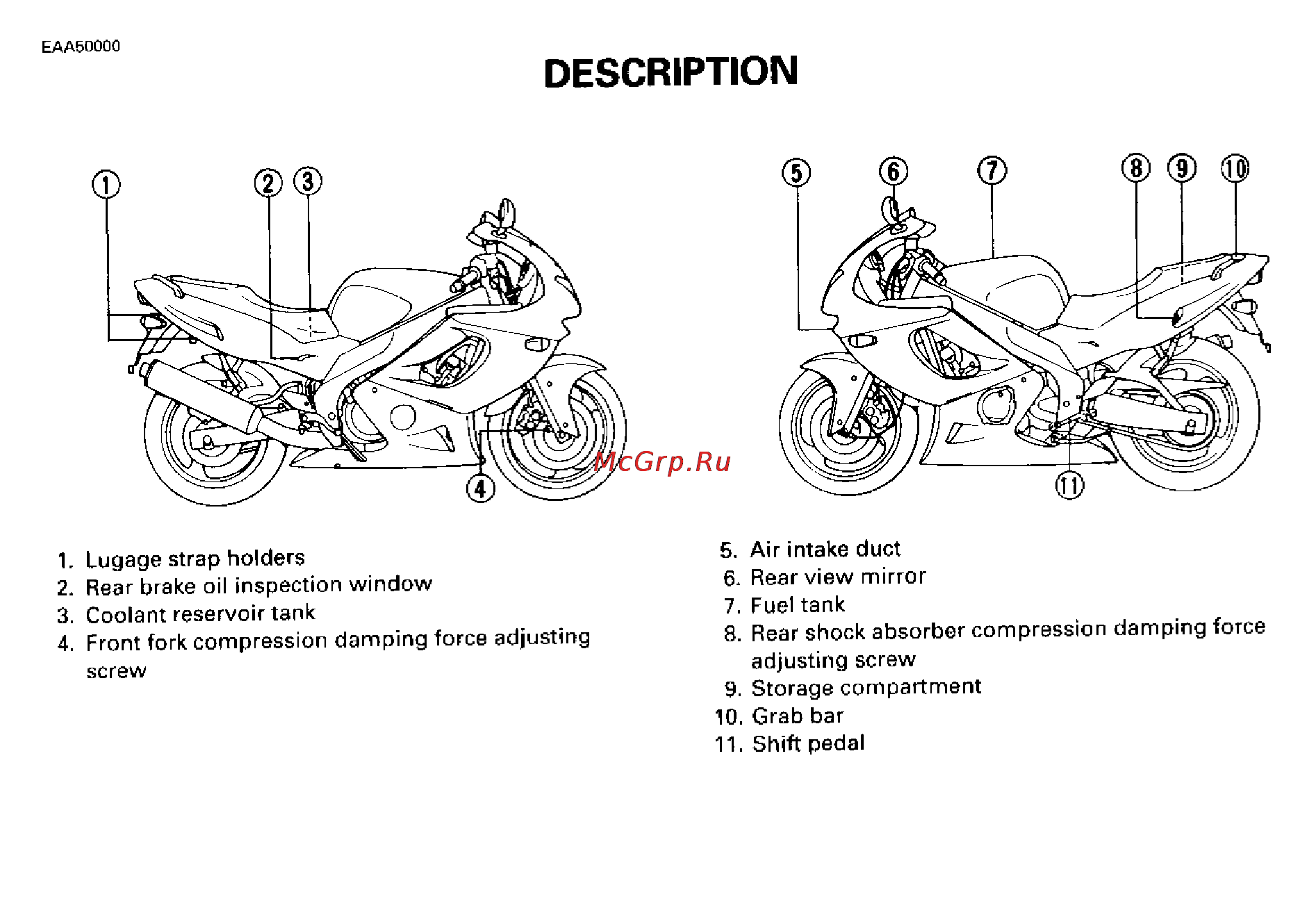

EAA50000 DESCRIPTION 1 Lugage strap holders 2 Rear brake oil inspection window 3 Coolant reservoir tank 4 Front fork compression damping force adjusting screw 5 Air intake duct 6 Rear view mirror 7 Fuel tank 8 Rear shock absorber compression damping force adjusting screw 9 Storage compartment 10 Grab bar 11 Shift pedal
