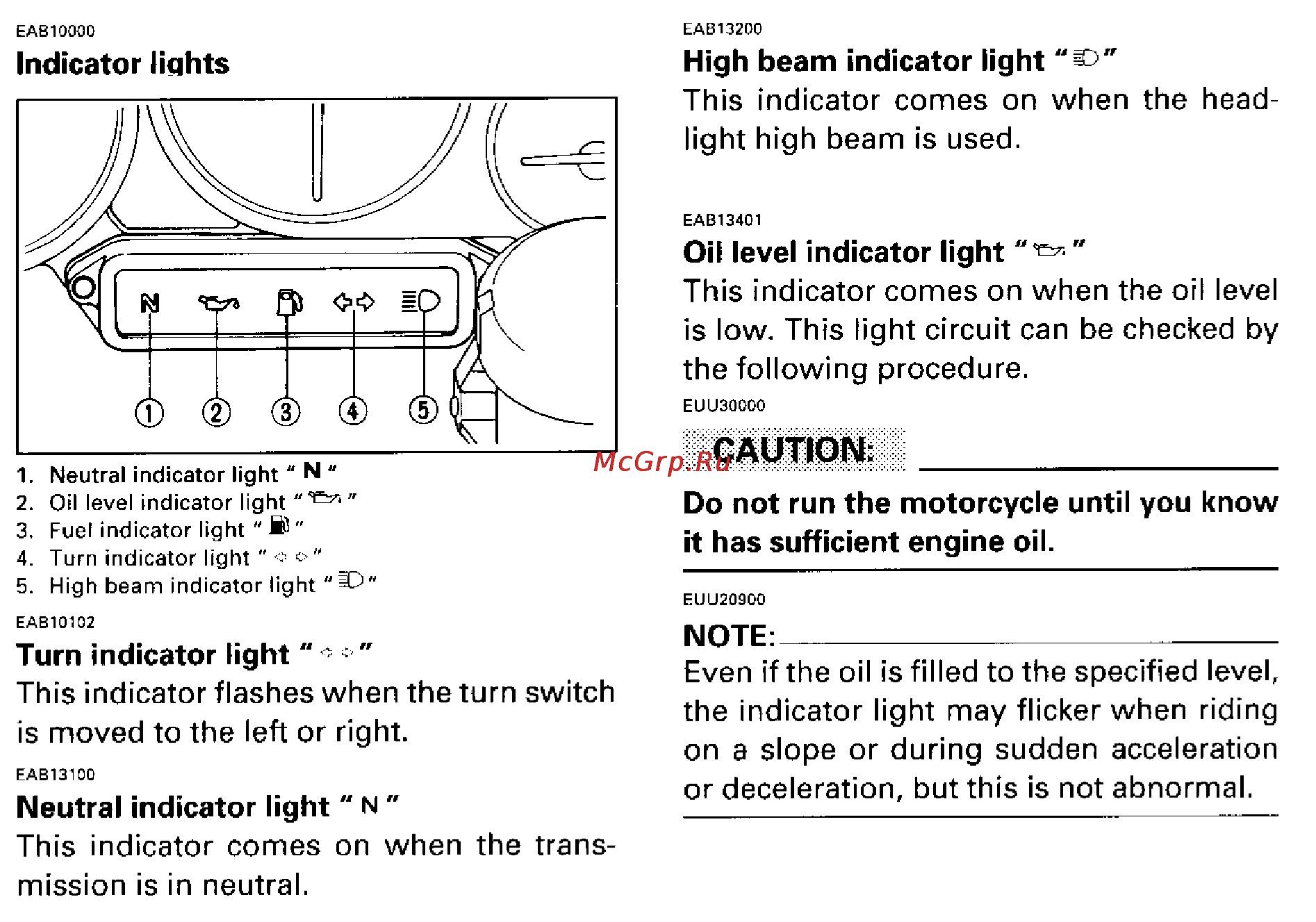

EA810000 EAB13200 High beam indicator light This indicator comes on when the head light high beam is used Oil level indicator light This indicator comes on when the oil level is low This light circuit can be checked by the following procedure EUU30000 CAUTION _____________________ 2 Oil level indicator light 3 Fuel indicator light 4 Turn indicator light 5 High beam indicator light ID EAB10102 Turn indicator light This indicator flashes when the turn switch is moved to the left or right EAB13100 Neutral indicator light N This indicator comes on when the trans mission is in neutral Do not run the motorcycle until you know it has sufficient engine oil EUU20900 NOTE _____________________________ Even if the oil is filled to the specified level the indicator light may flicker when riding on a slope or during sudden acceleration or deceleration but this is not abnormal
