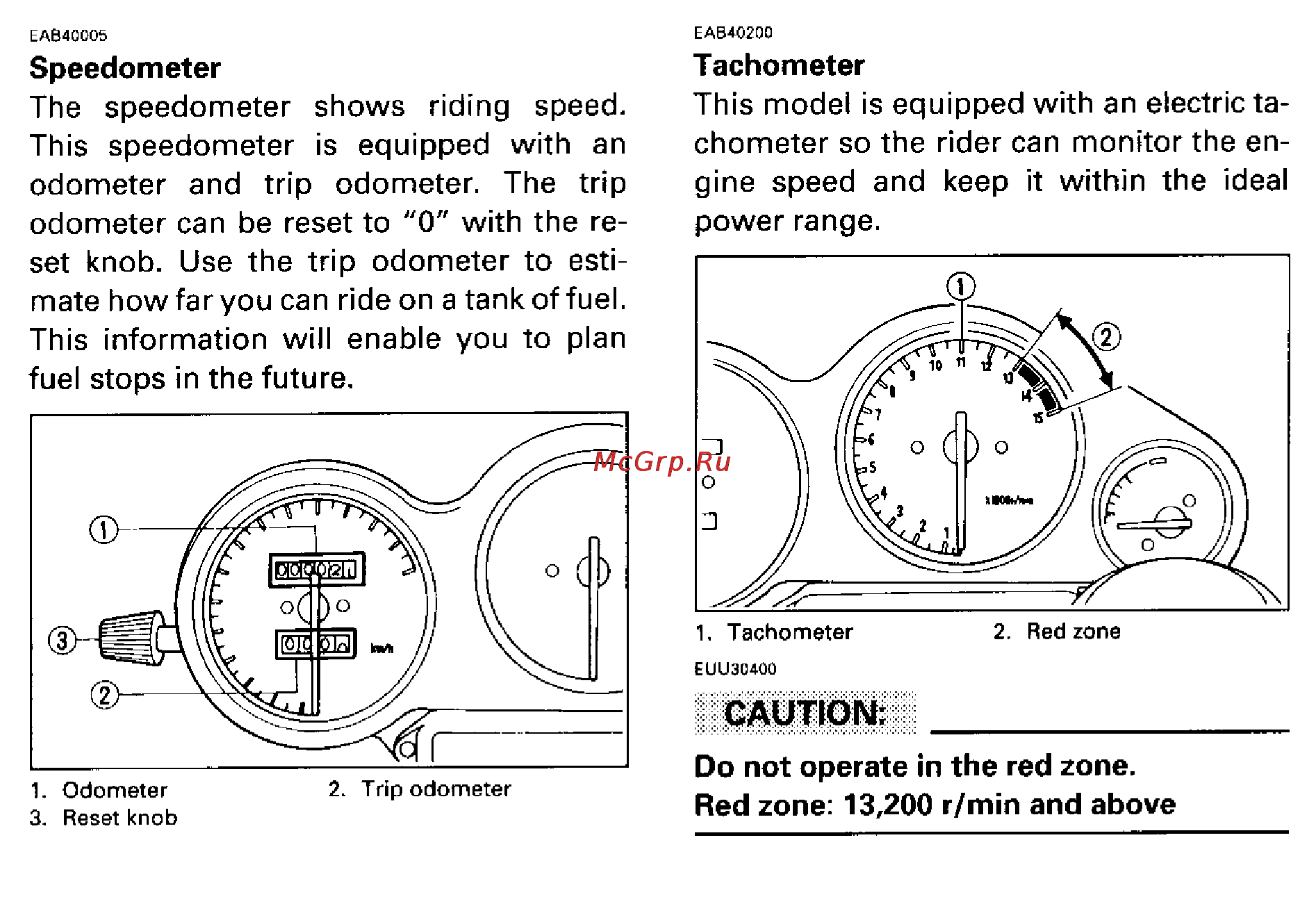

EAB40200 EAB4O005 Speedometer The speedometer shows riding speed This speedometer is equipped with an odometer and trip odometer The trip odometer can be reset to 0 with the re set knob Use the trip odometer to esti mate how far you can ride on a tank of fuel This information will enable you to plan fuel stops in the future Tachometer This model is equipped with an electric ta chometer so the rider can monitor the en gine speed and keep it within the ideal power range 1 Tachometer 2 Red zone EUU30400 CAUTION _____________________ 1 Odometer 3 Reset knob 2 Trip odometer Do not operate in the red zone Red zone 13 200 r min and above
