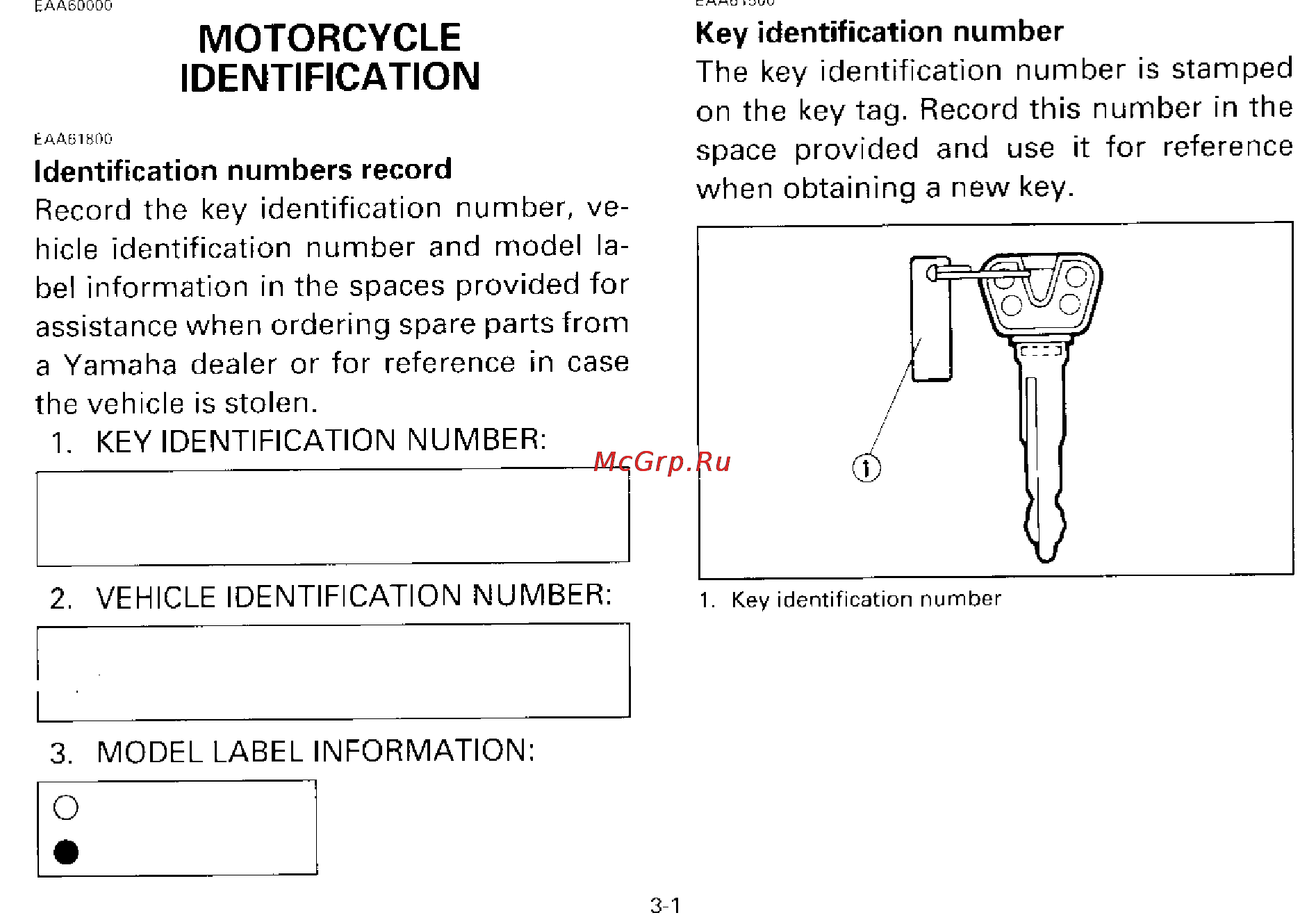

EAA60000 Key identification number The key identification number is stamped on the key tag Record this number in the space provided and use it for reference when obtaining a new key MOTORCYCLE IDENTIFICATION EAA61800 Identification numbers record Record the key identification number ve hicle identification number and model la bel information in the spaces provided for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehicle is stolen 1 KEY IDENTIFICATION NUMBER 2 VEHICLE IDENTIFICATION NUMBER I ___________________________ 3 MODEL LABEL INFORMATION O 1
