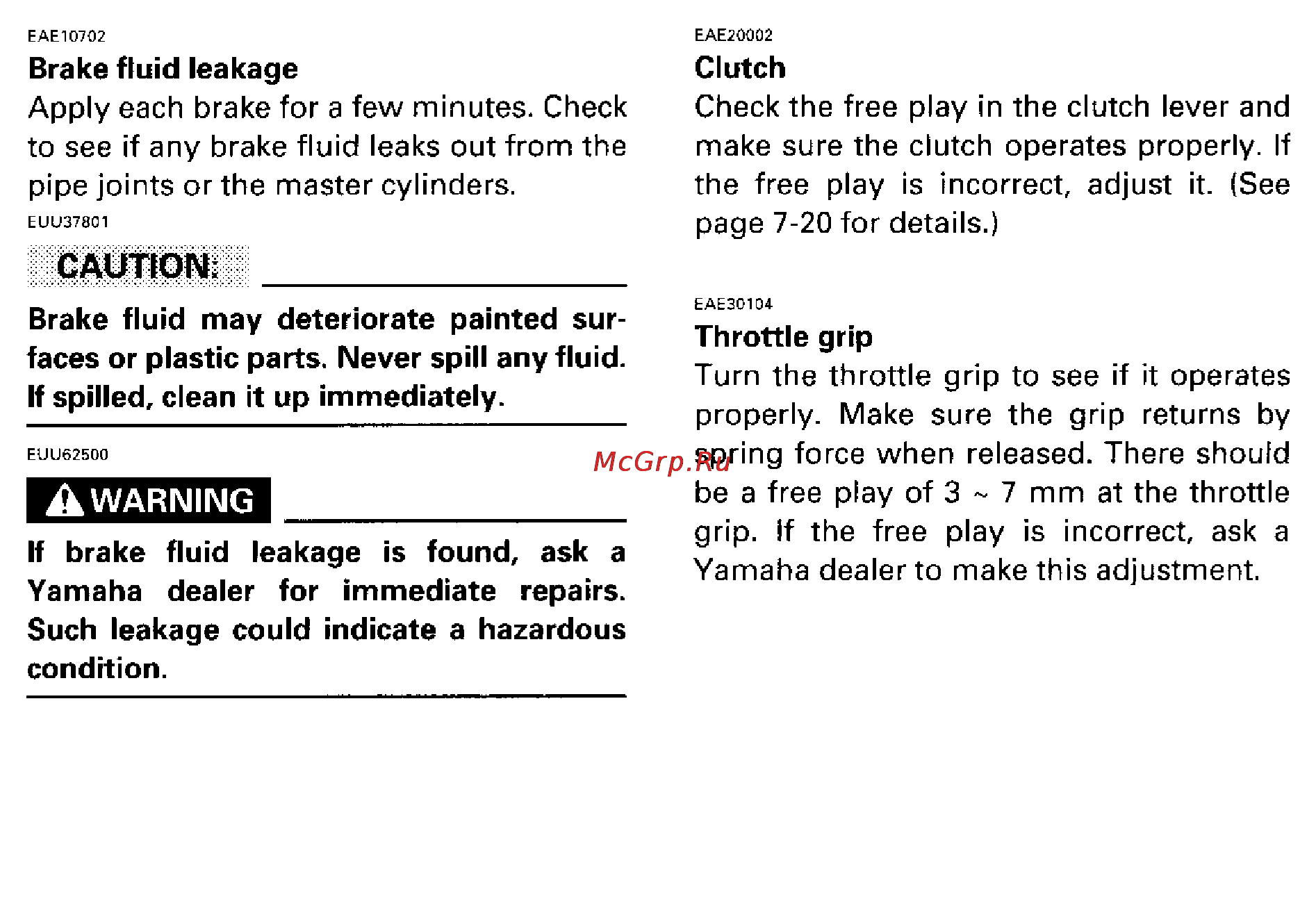

EAE10702 EAE20002 Brake fluid leakage Apply each brake for a few minutes Check to see if any brake fluid leaks out from the pipe joints or the master cylinders Clutch Check the free play in the clutch lever and make sure the clutch operates properly If the free play is incorrect adjust it See page 7 20 for details EUU37801 CAUTION _____________________ Brake fluid may deteriorate painted sur faces or plastic parts Never spill any fluid If spilled clean it up immediately EUU62500 WARNING If brake fluid leakage is found ask a Yamaha dealer for immediate repairs Such leakage could indicate a hazardous condition EAE301O4 Throttle grip Turn the throttle grip to see if it operates properly Make sure the grip returns by spring force when released There should be a free play of 3 7 mm at the throttle grip If the free play is incorrect ask a Yamaha dealer to make this adjustment
