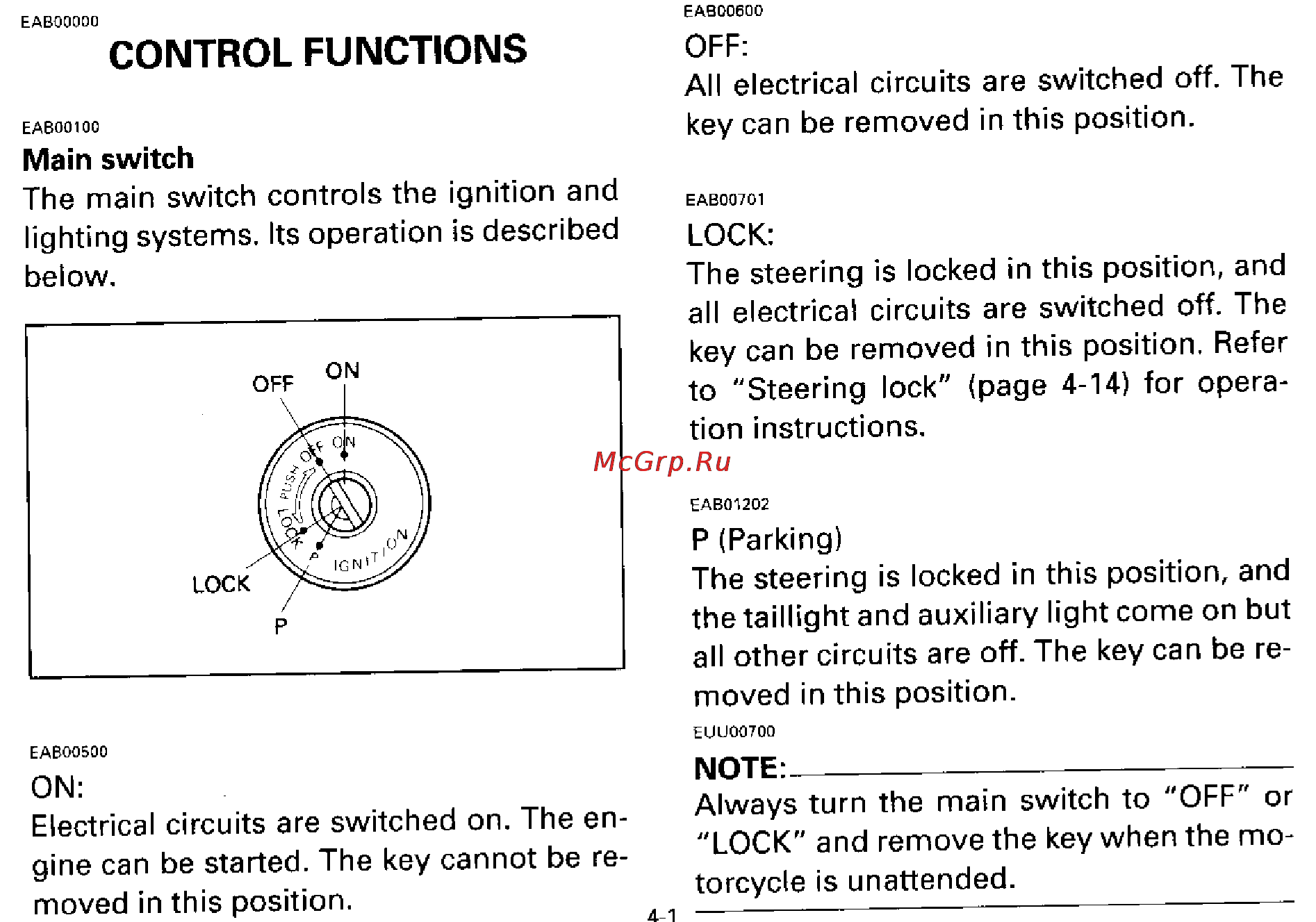

EAB00600 EABOOOOO OFF All electrical circuits are switched off The key can be removed in this position CONTROL FUNCTIONS EABOO100 Main switch The main switch controls the ignition and lighting systems Its operation is described below EAB00701 LOCK The steering is locked in this position and all electrical circuits are switched off The key can be removed in this position Refer to Steering lock page 4 14 for opera tion instructions EAB01202 P Parking The steering is locked in this position and the taillight and auxiliary light come on but all other circuits are off The key can be re moved in this position EUU00700 EABOO500 ON Electrical circuits are switched on The en gine can be started The key cannot be re moved in this position NOTE Always turn the main switch to OFF or LOCK and remove the key when the mo torcycle is unattended ______ 4 1
