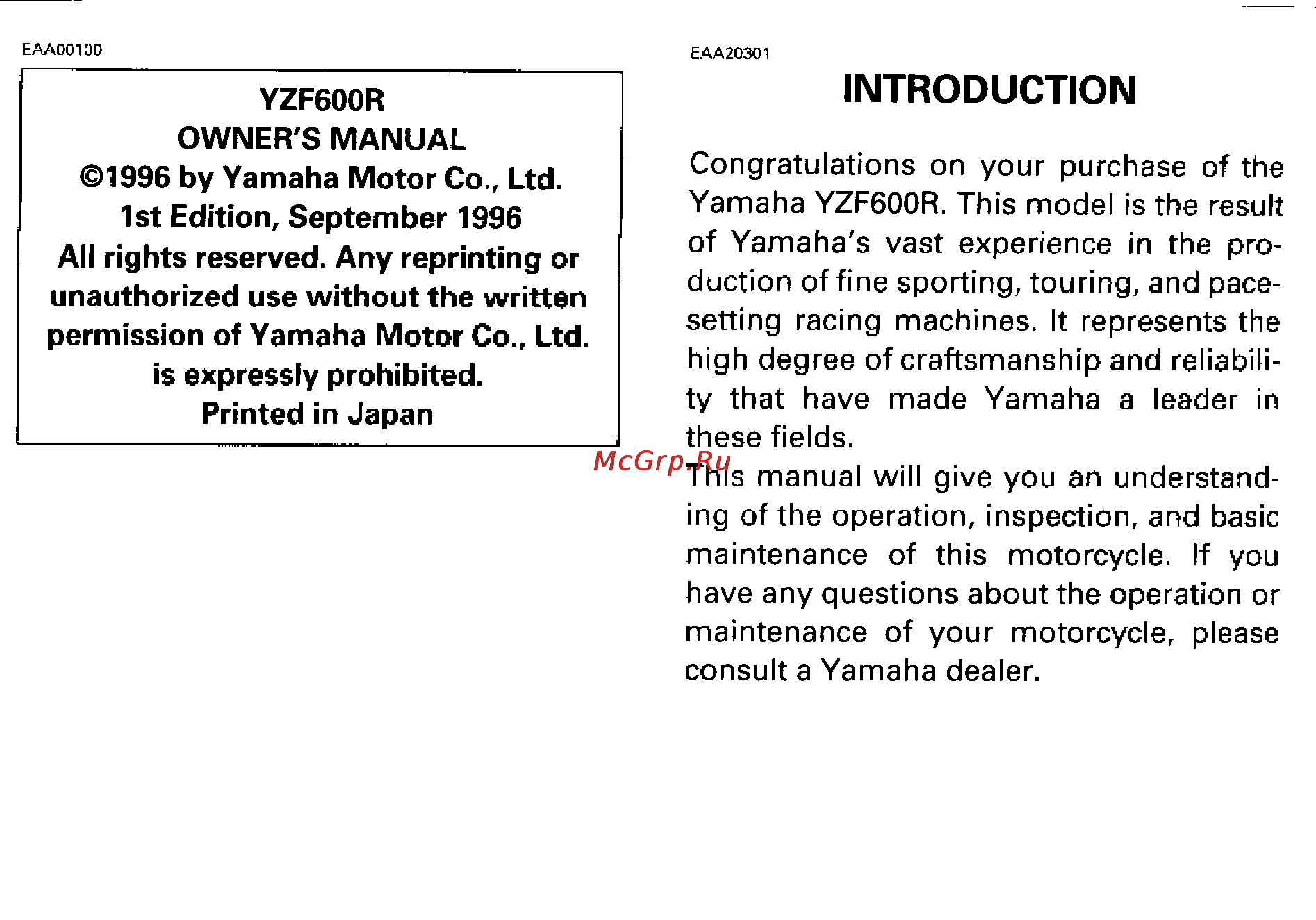

EAA001O0 YZF600R OWNER S MANUAL 1996 by Yamaha Motor Co Ltd 1st Edition September 1996 All rights reserved Any reprinting or unauthorized use without the written permission of Yamaha Motor Co Ltd is expressly prohibited Printed in Japan EAA20301 INTRODUCTION Congratulations on your purchase of the Yamaha YZF600R This model is the result of Yamaha s vast experience in the pro duction of fine sporting touring and pace setting racing machines It represents the high degree of craftsmanship and reliabili ty that have made Yamaha a leader in these fields This manual will give you an understand ing of the operation inspection and basic maintenance of this motorcycle If you have any questions about the operation or maintenance of your motorcycle please consult a Yamaha dealer
