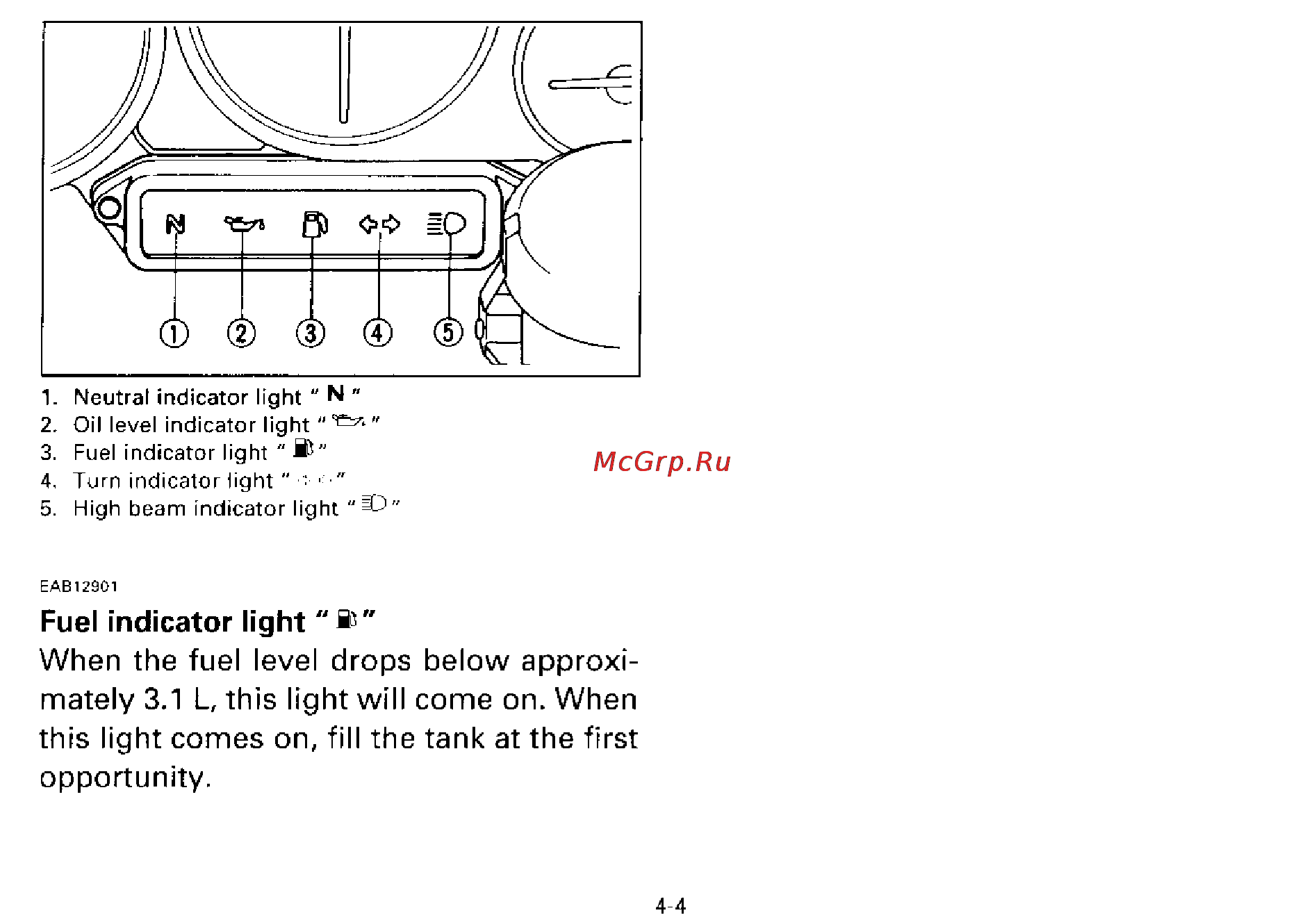

1 Neutral indicator light N 2 Oil level indicator light ctz 3 Fuel indicator light 4 Turn indicator light 5 High beam indicator light S 1 EAB12901 Fuel indicator light When the fuel level drops below approxi mately 3 1 L this light will come on When this light comes on fill the tank at the first opportunity
