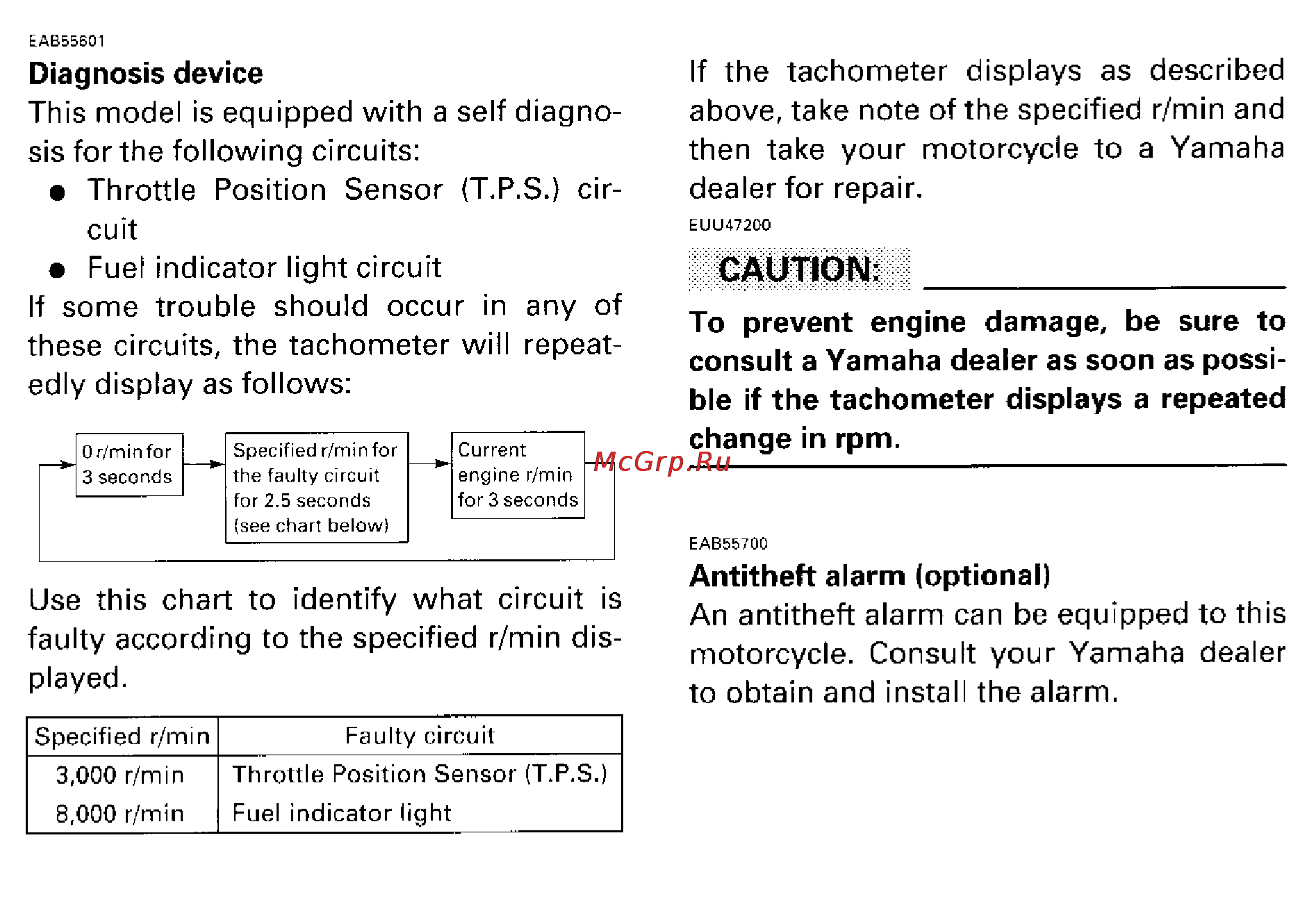

EAB55601 Diagnosis device This model is equipped with a self diagno sis for the following circuits Throttle Position Sensor T P S cir cuit Fuel indicator light circuit If some trouble should occur in any of these circuits the tachometer will repeat edly display as follows If the tachometer displays as described above take note of the specified r min and then take your motorcycle to a Yamaha dealer for repair EUU47200 CAUTION _____________________ To prevent engine damage be sure to consult a Yamaha dealer as soon as possi ble if the tachometer displays a repeated change in rpm EAB55700 Use this chart to identify what circuit is faulty according to the specified r min dis played Specified r min Faulty circuit 3 000 r min Throttle Position Sensor T P S 8 000 r min Fuel indicator light Antitheft alarm optional An antitheft alarm can be equipped to this motorcycle Consult your Yamaha dealer to obtain and install the alarm
