Konica Minolta EP2080 [118/148] When a message appears

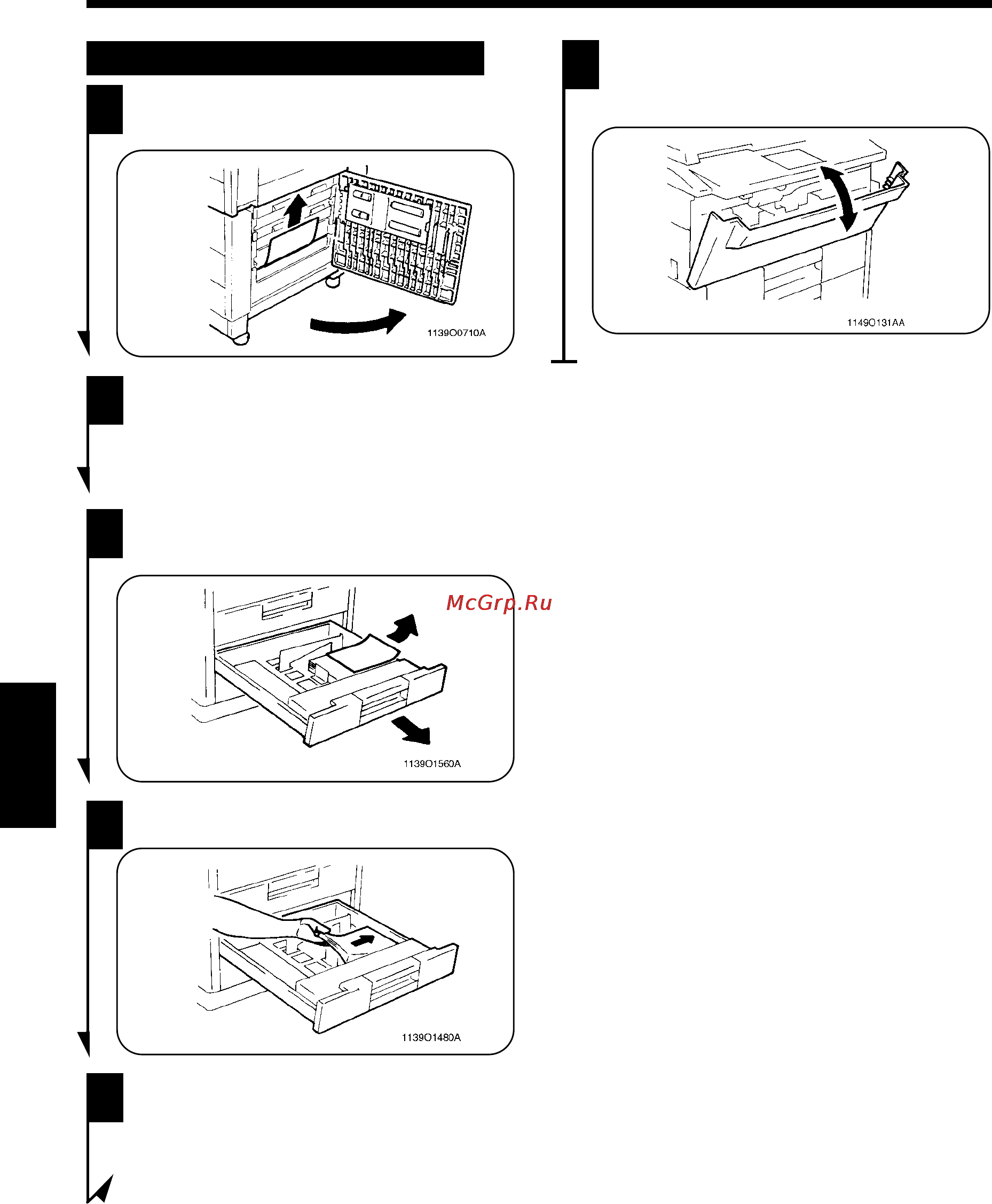

Paper Feed Cabinet (2-Drawer Type)

Open the Lower Right Door and pull

out the sheet of paper.

Slide out the drawer currently selected

and then unload the paper stack from it.

To reset the paper misfeed indication

on the Touch Panel, open and close the

Front Door.

Slide the drawer back in.

Fan the paper thoroughly and reload it.

Close the Lower Right Door.

Chapter 5

When a Message Appears

4. When the Message "A paper misfeed has been detected." Appears

116
