Konica Minolta EP2080 [31/148] Making copies

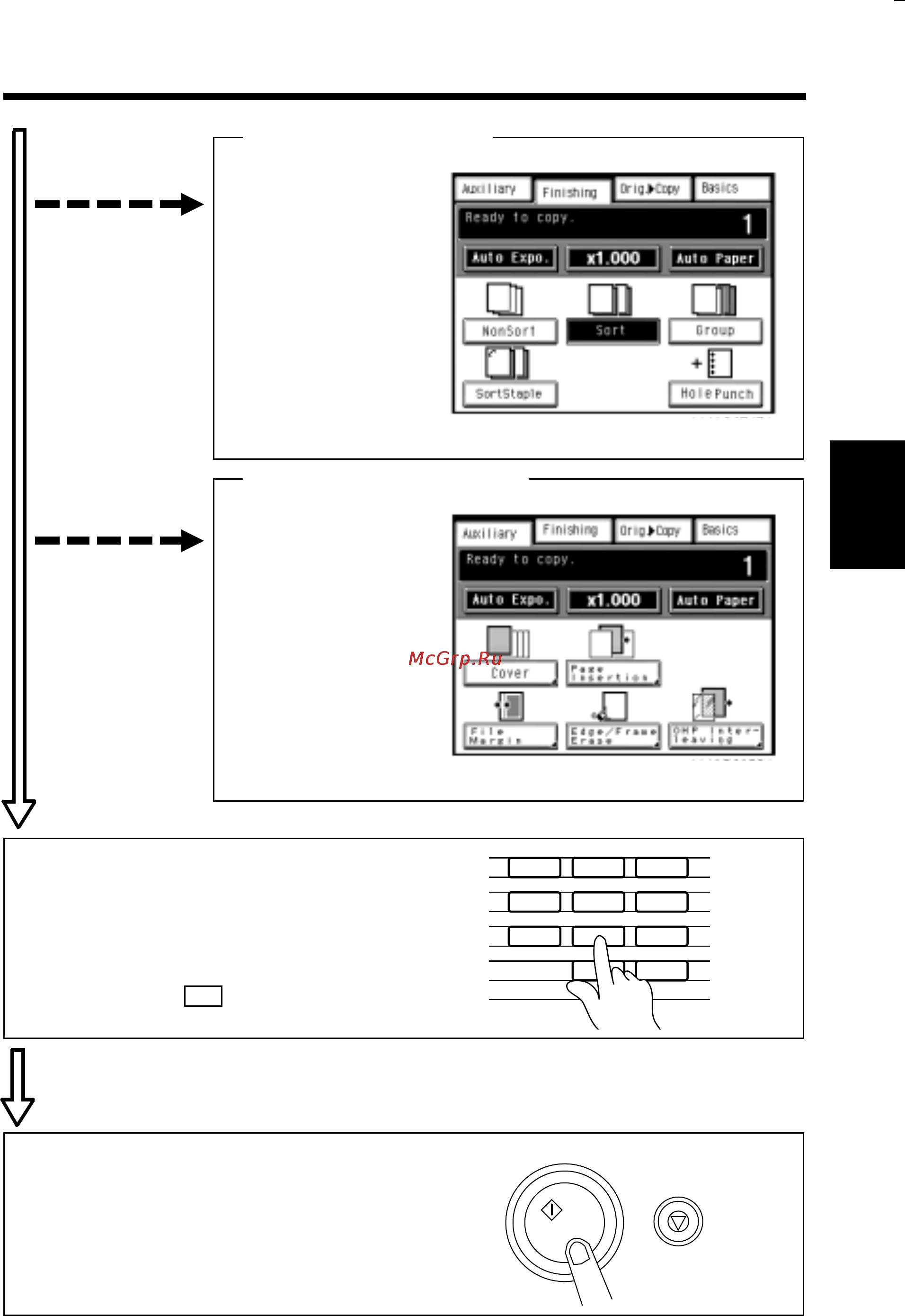

6. Touch Finishing

➭

p. 48

Selecting the finishing type

• To sort copies

• To staple copies

• To punch holes in copies

7. Touch Auxiliary.

➭

p. 58

Selecting the auxiliary functions

• To make a file margin

on the copy

8. Setting the number of copies.

•

From the 10-Key Pad, set the desired

number of copies to be made.

If you have entered an incorrect number,

press the Clear key C , then enter the

correct number.

123

456

789

1139O2640A

1139P2640A

1134P342DA

9. Pressing the Start key

When you press the Start key, the copier

starts the copy cycle.

To stop the copy cycle, press the Stop key.

1149O274CA

1149O265CA

Chapter 3

Making Copies
