Konica Minolta EP2080 [72/148] Making copies

1145O367CB

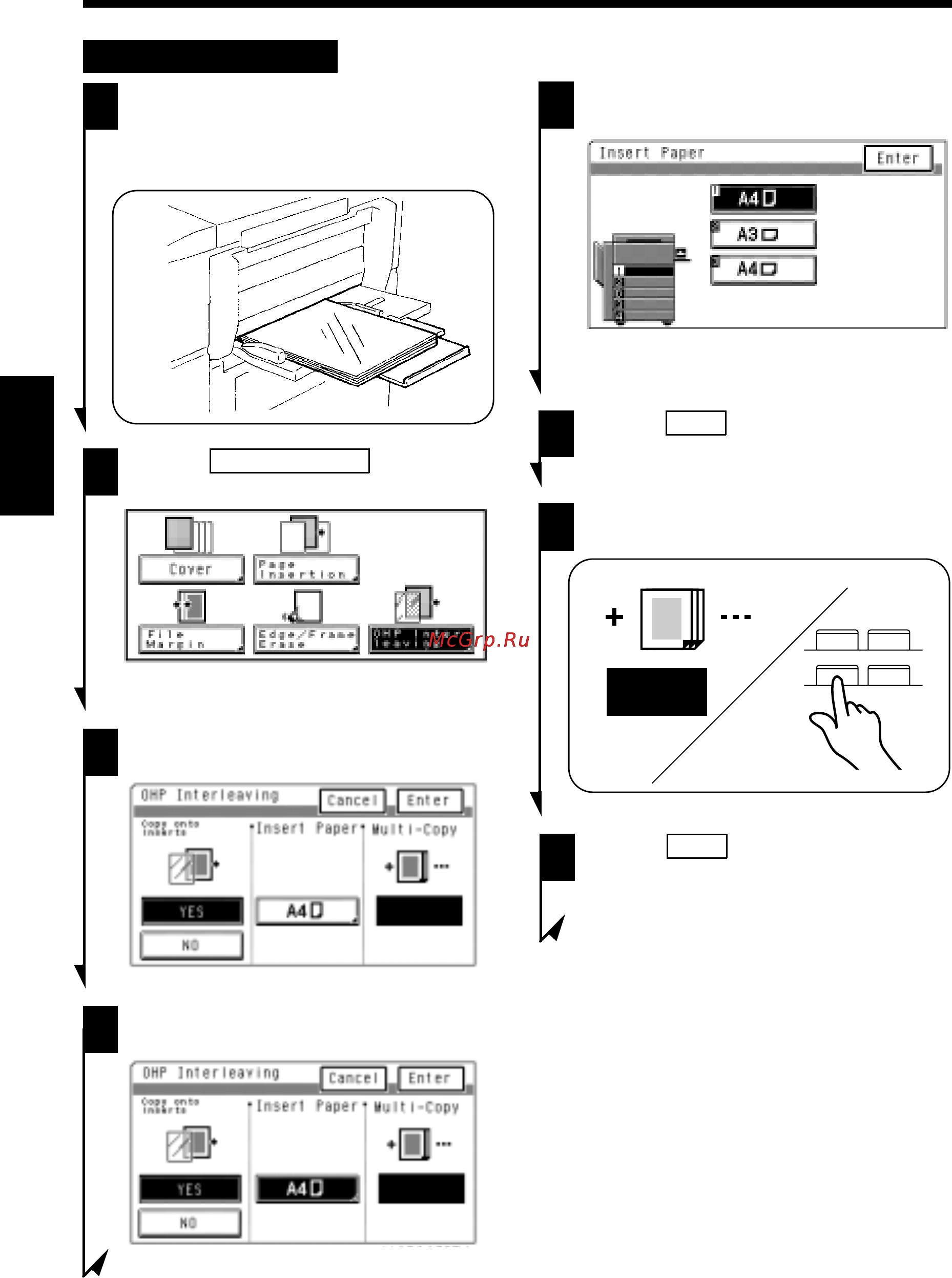

Using OHP Interleaving

Touch

OHP Interleaving

1149O345CA

Load OHP transparencies onto the

Multi Bypass Tray. (Up to 20 sheets of

OHP transparencies can be placed on

the tray.)

Select whether to copy onto the

interleaves (YES) or not (NO).

Touch

Enter

1149O052AA

Select the size of Insert Paper.

1149O349DA

1149O350DA

Touch the key for the size of Insert

Paper.

1149O420DA

Enter the number of copy sets to make

from the 10-Key Pad.

Touch

Enter

Chapter 3

Making Copies

7. Auxiliary Functions
