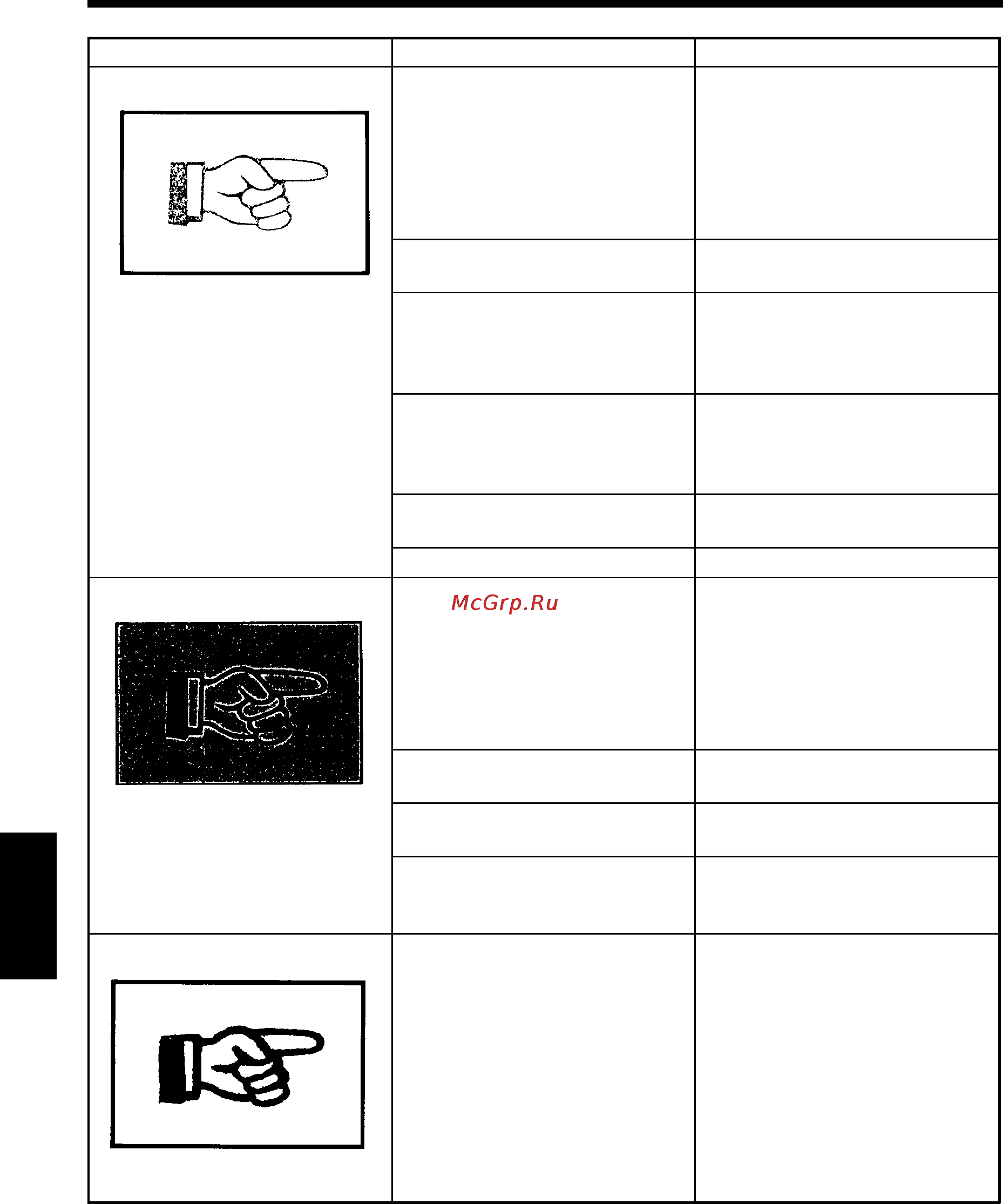

1. When This Type of Copy is produced
Symptom Possible Cause Action
The image is too light. The exposure level for the Auto
Exposure mode is set at "Lighter."
Change the setting of "Auto
Exposure Level" of User’s Choice.
➭
p. 85
Or, cancel the Auto Exposure
mode and select Manual Exposure
to adjust the exposure level to
obtain a darker image.
➭
p . 40
The exposure level for the Manual
Exposure mode is set at "Lighter."
Touch [Darker] as necessary to
obtain a darker image.
➭
p. 40
You have been making copies from
a photo or an original with a large
dark area.
The copier needs more toner.
Replenish toner by using Toner
Replenisher of User Mode.
➭
p. 83
The Toner Bottle has just been
replaced.
The copier needs more toner.
Replenish toner by using Toner
Replenisher of User Mode.
➭
p. 83
The message "Replenish Toner." is
shown on the Touch Panel.
Replace the Toner Bottle.
➭
p. 106
The paper is damp. Change the paper.
The image is too dark. The exposure level for the Auto
Exposure mode is set at "Darker."
Change the setting of "Auto
Exposure Level" of User’s Choice.
➭
p. 85
Or, cancel the Auto Exposure
mode and select Manual Exposure
to adjust the exposure level to
obtain a lighter image.
➭
p. 40
The exposure level for the Manual
Exposure mode is set at "Darker."
Touch [Lighter] as necessary to
obtain a lighter image.
➭
p. 40
The Original Glass surface is dirty. Wipe the Original Glass clean with
a soft dry cloth.
➭
p. 138
The original is not held tightly
against the Original Glass.
Place the original in position so
that it is held tightly against the
Original Glass.
The copy is blurry. The paper is damp. Change the paper.
1074O110
1074O109
1074O108
Chapter 6
Troubleshooting
128
