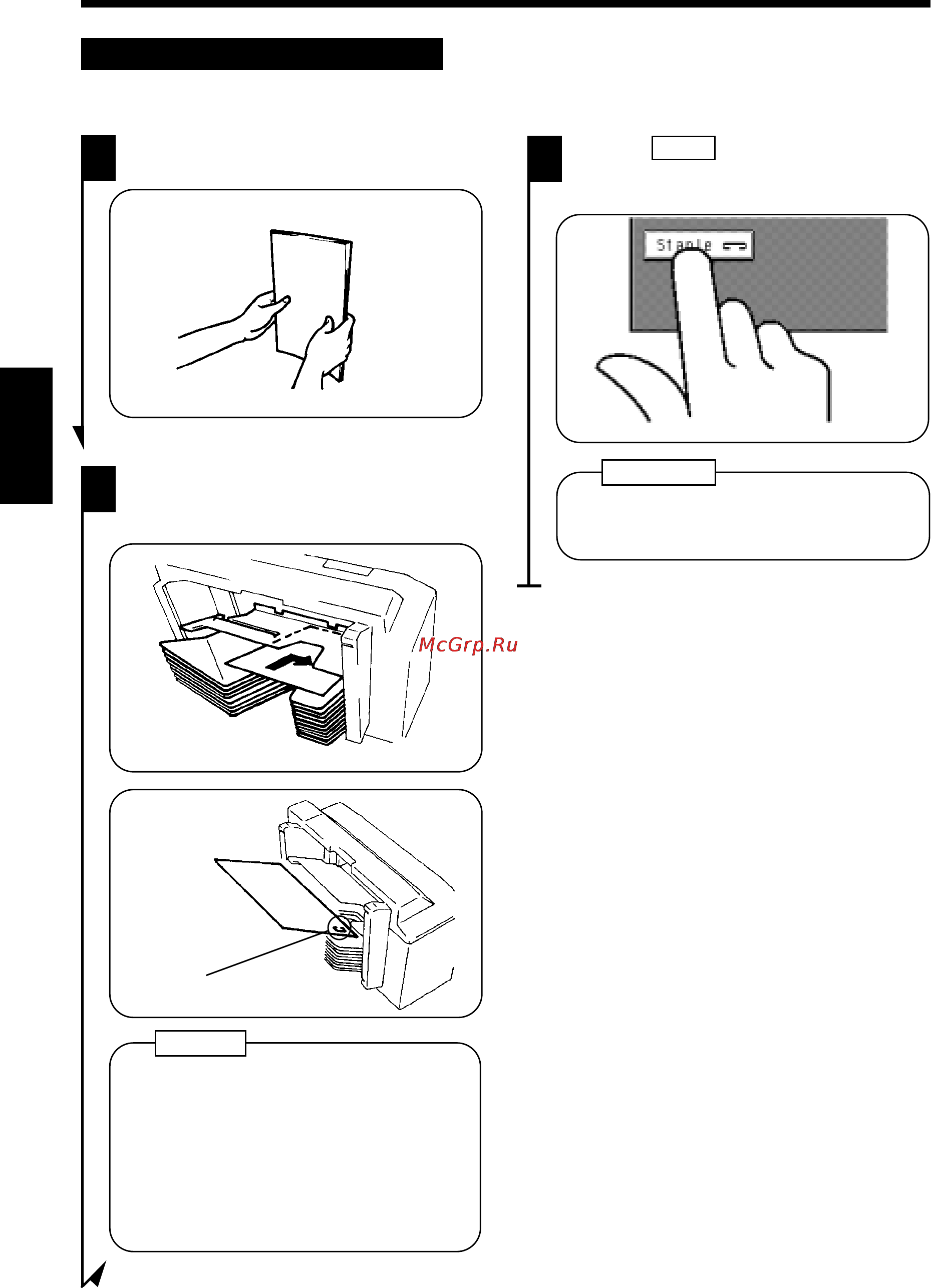

Konica Minolta EP2080 [54/148] Making copies

Align the sheets of paper neatly.

1134O039AA

Insert the paper stack onto the 1st Bin

facing up.

1139O1320A

•

Make sure of the stapling position and

press the paper stack against the

bracket.

•

Up to 25 sheets of plain paper can be

stapled.

•

Never attempt to reach for the stapling

position. This can be dangerous.

NOTES

This feature is useful for stapling

originals after making copies.

Useful Tip

Using the Manual Staple Function

When a 10-Bin Staple Sorter is mounted.

1149O086AA

Stapling

Position

Touch

Staple

. Then, the paper stack

in the Sorter Bin will be stapled

together.

1149O320CB

Chapter 3

Making Copies

6. Finishing Mode
