One of the most basic copying jobs is to make full-size (×1.000) copies of the original.
•
Place the original in position (step 1), set the number of copies to be made (step 8), and press the
Start key (step 9). This will allow you to make full-size copies on paper of the same size as the
original.
(*Automatically selected in the initial mode are Auto Paper, full size, and Auto Exposure.)
The selections you make on the Touch Panel will change the exposure level, zoom ratio, the
type of copy and so on.

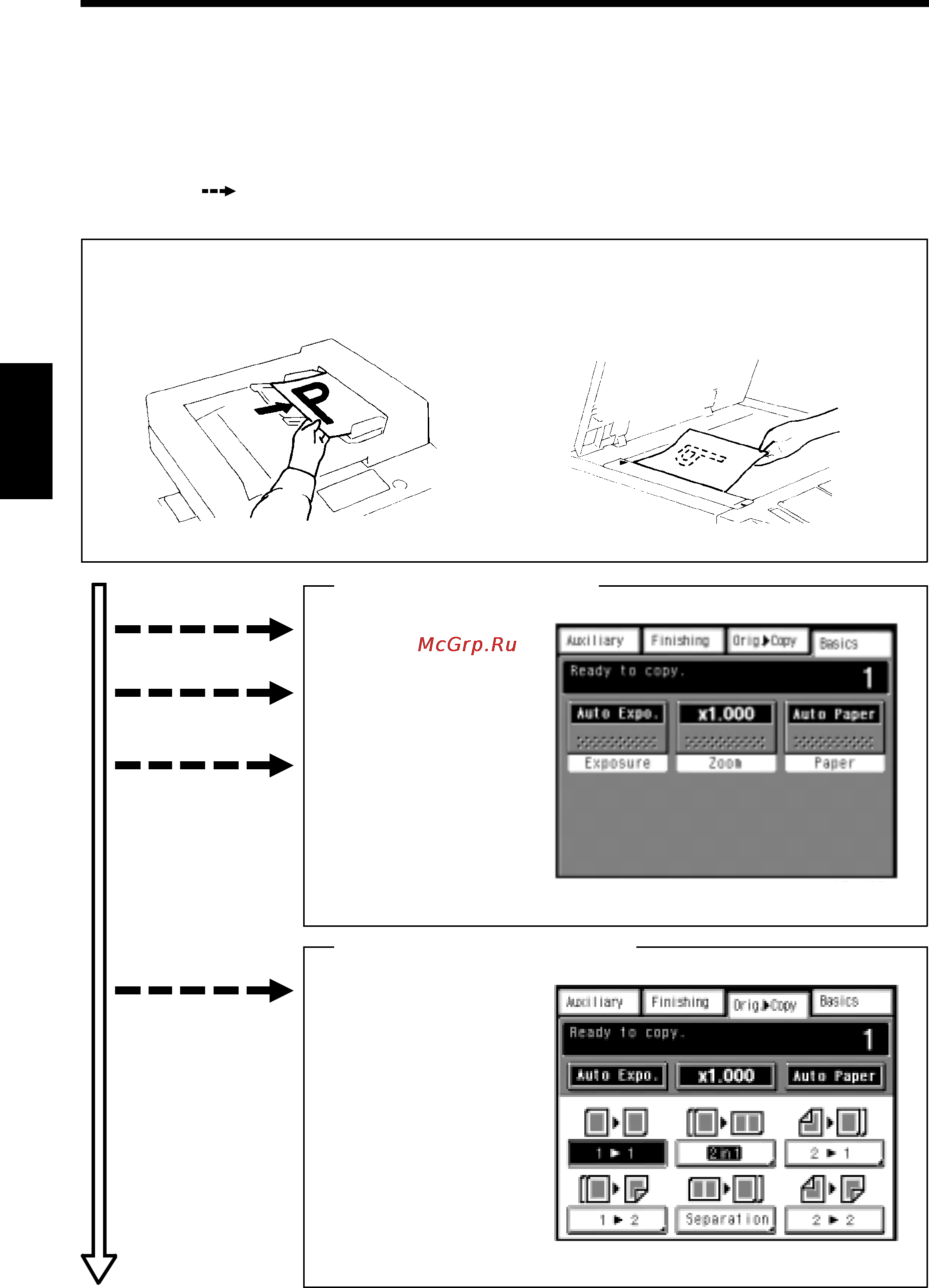

1. Placing the Original
•
Load the originals face up on the
document feeder.
➭
p. 29
1151O16AA 1151O013AA
•
Raise the Original Cover and place the
original face down on the Original Glass.
➭ p. 26
2. Touch Paper.
➭
p. 34
3. Touch Zoom.
➭
p. 36
4. Touch Exposure.
➭ p. 40
Selecting the basic functions
To change the copy paper
size
To change the zoom ratio
To change the exposure
level
5. Touch Orig. Copy.
➭
p. 42
Selecting the original copy type
▲
▲
• To make copies from a
book
• To save copy paper
1. Basic Copying Overview
1149O272CA
1149O413CA
Chapter 3
Making Copies
24
