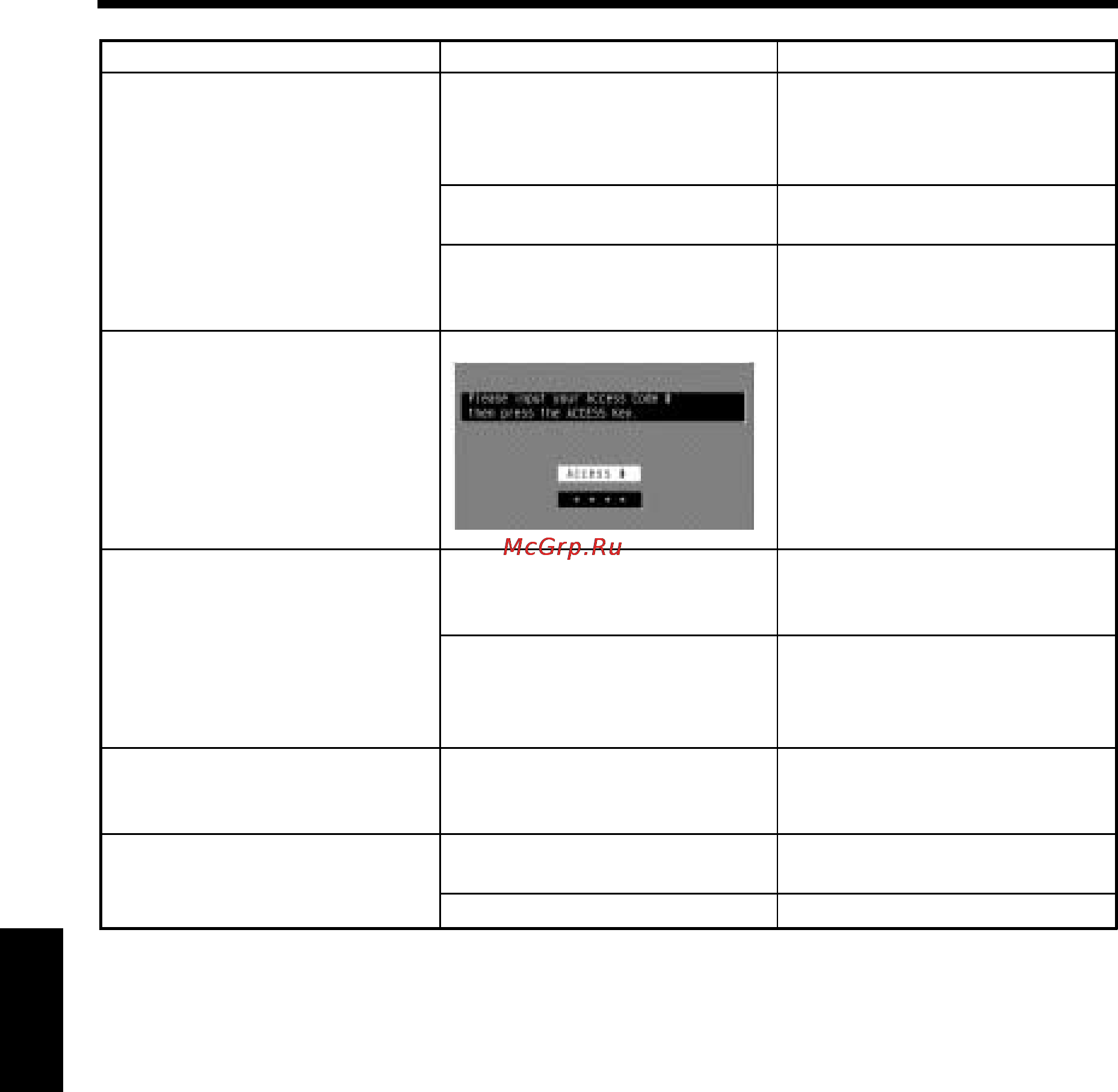

Konica Minolta EP2080 [132/148] The copier is not functioning as designed
![Konica Minolta EP2080 [132/148] The copier is not functioning as designed](/views2/1122114/page132/bg84.png)
Symptom Check for: Action
The Touch Panel shows nothing. Is only the Start key lit up green? The copier is in the Energy Saver
mode.
Press any key on the control panel
to cancel Energy Saver.
Auto Shut Off is activated.
➭
p.
Turn the Power Switch ON.
The Display Contrast Knob is
placed in the excessively light or
dark position.
➭
p. 16
Viewing the Touch Panel, turn the
Display Contrast Knob as
necessary.
➭
p. 17
The Start key does not light up
green.
Is your Access Number entered? Enter your Access Number by
following the procedure given in
"Entering the Access Number."
➭
p. 22
No copies are fed out when the
Start key is pressed.
The copier has developed a
malfunction.
Check the Touch Panel and take
action according to the message on
the panel.
The copier was just turned ON and
is warming up.
It takes the copier 60 sec. to be
ready for making copies after it has
been turned ON.
Please wait.
Control panel keys do not respond. The Interrupt key LED is lit up. The copier is in the interrupt mode.
Press the Interrupt key to cancel
the interrupt mode.
The copier is not activated when
the Power Switch is turned ON.
The power cord is left unplugged
from the power outlet.
Plug the power cord into the power
outlet.
The room circuit breaker is open. Close the room circuit breaker.
*
If these procedures do not correct the problem, turn OFF the Power Switch, unplug the power cord
from the power outlet, and contact your Technical Representative.
2. The Copier is not functioning as designed
1149O271CA
Chapter 6
Troubleshooting
130
