DES-1228/ME Layer 2 Fast Ethernet Managed Switch
73

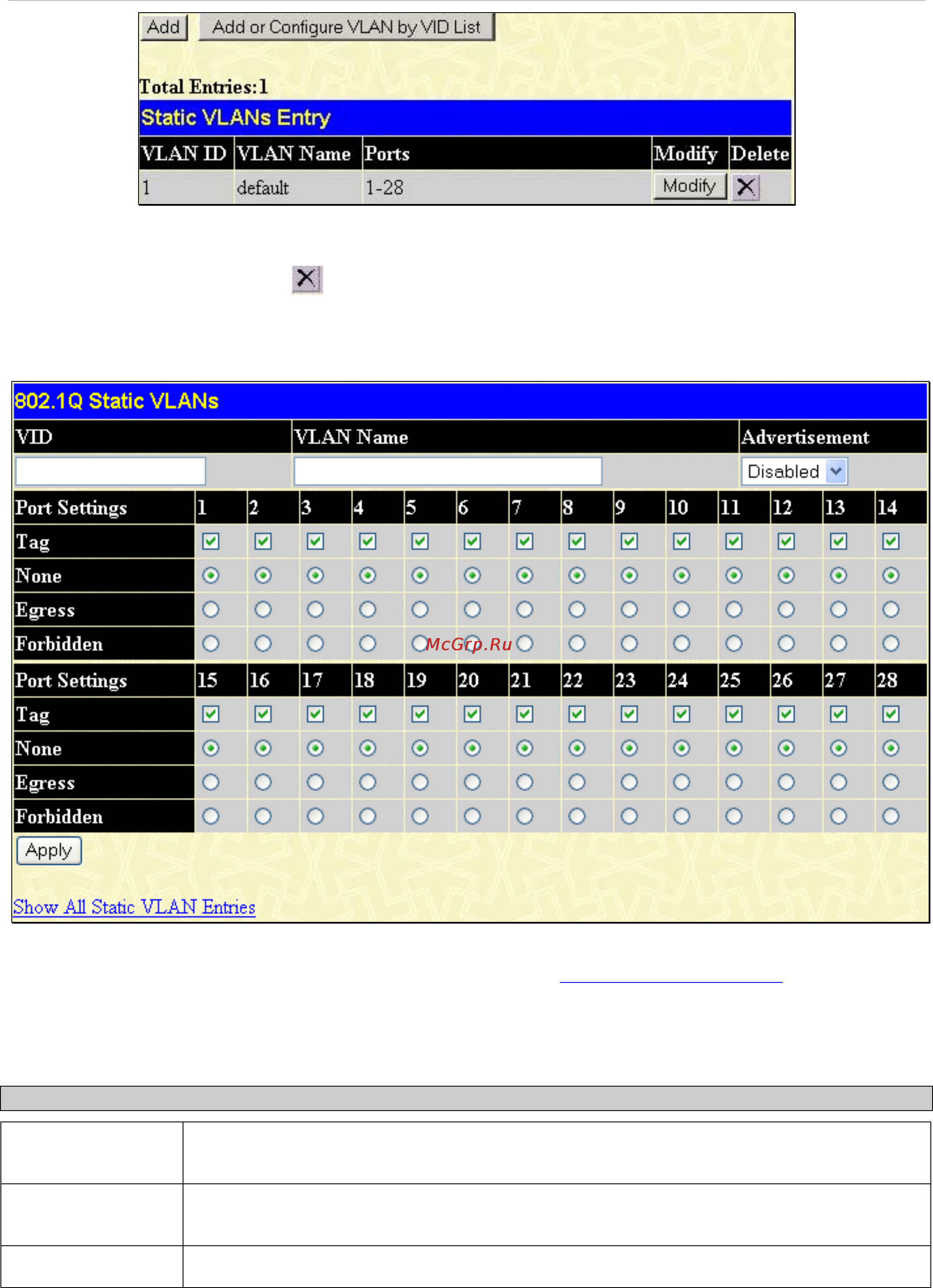

Figure 7- 5. Static VLANs Entry Settings window
The 802.1Q Static VLANs window lists all previously configured VLANs by VLAN ID and VLAN Name. To delete an existing
802.1Q VLAN, click the corresponding
button under the Delete heading.
To create a new 802.1Q VLAN, click the Add button in the 802.1Q Static VLANs window. A new window will appear, as
shown below, to configure the port settings and to assign a unique name and number to the new VLAN. See the table below for a
description of the parameters in the new window.
Figure 7- 6. 802.1Q Static VLANs window - Add
To return to the Current 802.1Q Static VLANs Entries window, click the Show All Static VLAN Entries
link. To change an
existing 802.1Q VLAN entry, click the Modify button of the corresponding entry you wish to modify. A new window will appear
to configure the port settings and to assign a unique name and number to the new VLAN. See the table below for a description of
the parameters in the new window.
The following fields can then be set in either the Add or Modify 802.1Q Static VLANs windows:
Parameter Description
VID
Allows the entry of a VLAN ID in the Add dialog box, or displays the VLAN ID of an existing
VLAN in the Modify dialog box. VLANs can be identified by either the VID or the VLAN name.
VLAN Name
Allows the entry of a name for the new VLAN in the Add dialog box, or for editing the VLAN
name in the Modify dialog box.
Advertisement Use the pull down menu to Enable or Disable the Advertisement broadcast on the VLAN.
