DES-1228/ME Layer 2 Fast Ethernet Managed Switch
74
Port Settings
Allows an individual port to be specified as member of a VLAN.
Tag
Specifies the port as either 802.1Q tagging or 802.1Q untagged. Checking the box will desig-
nate the port as Tagged.
None
Allows an individual port to be specified as a non-VLAN member.
Egress
Select this to specify the port as a static member of the VLAN. Egress member ports are ports
that will be transmitting traffic for the VLAN. These ports can be either tagged or untagged.
Forbidden
Select this to specify the port as not being a member of the VLAN and that the port is
forbidden from becoming a member of the VLAN dynamically.
Click Apply to implement changes made. Click the Show All Static VLAN Entries link to return to the 802.1Q Static VLANs
window.
To add a new 802.1Q Static Multiple VLAN by VID List, click the Add or Configure VLAN by VID List in the Static VLAN
Entry window the following window will be displayed.

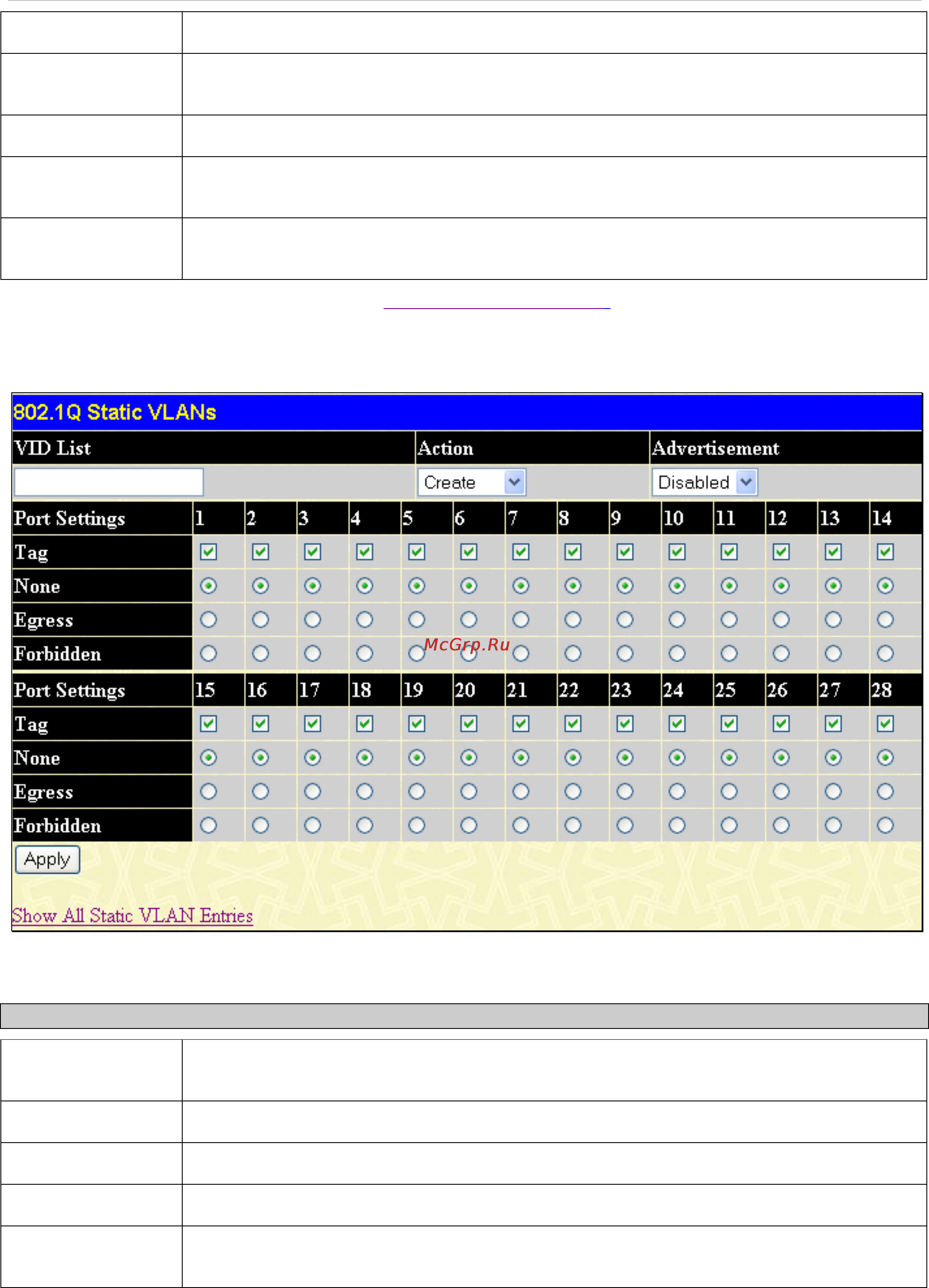

Figure 7- 7. 802.1Q Static VLANs window - Add or Configure VLAN by VID List
The following fields can then be set:
Parameter Description
VID List
Allows the entry of a VLAN ID in the Add dialog box, or displays the VLAN ID of an existing
VLAN in the Modify dialog box. VLANs can be identified by their VID.
Action Choose an action to Create, Configure or Delete an 802.1Q Static VLAN.
Advertisement Use the pull down menu to Enable or Disable the Advertisement broadcast on the VLAN.
Port Settings
Allows an individual port to be specified as member of a VLAN.
Tag
Specifies the port as either 802.1Q tagging or 802.1Q untagged. Checking the box will desig-
nate the port as Tagged.
