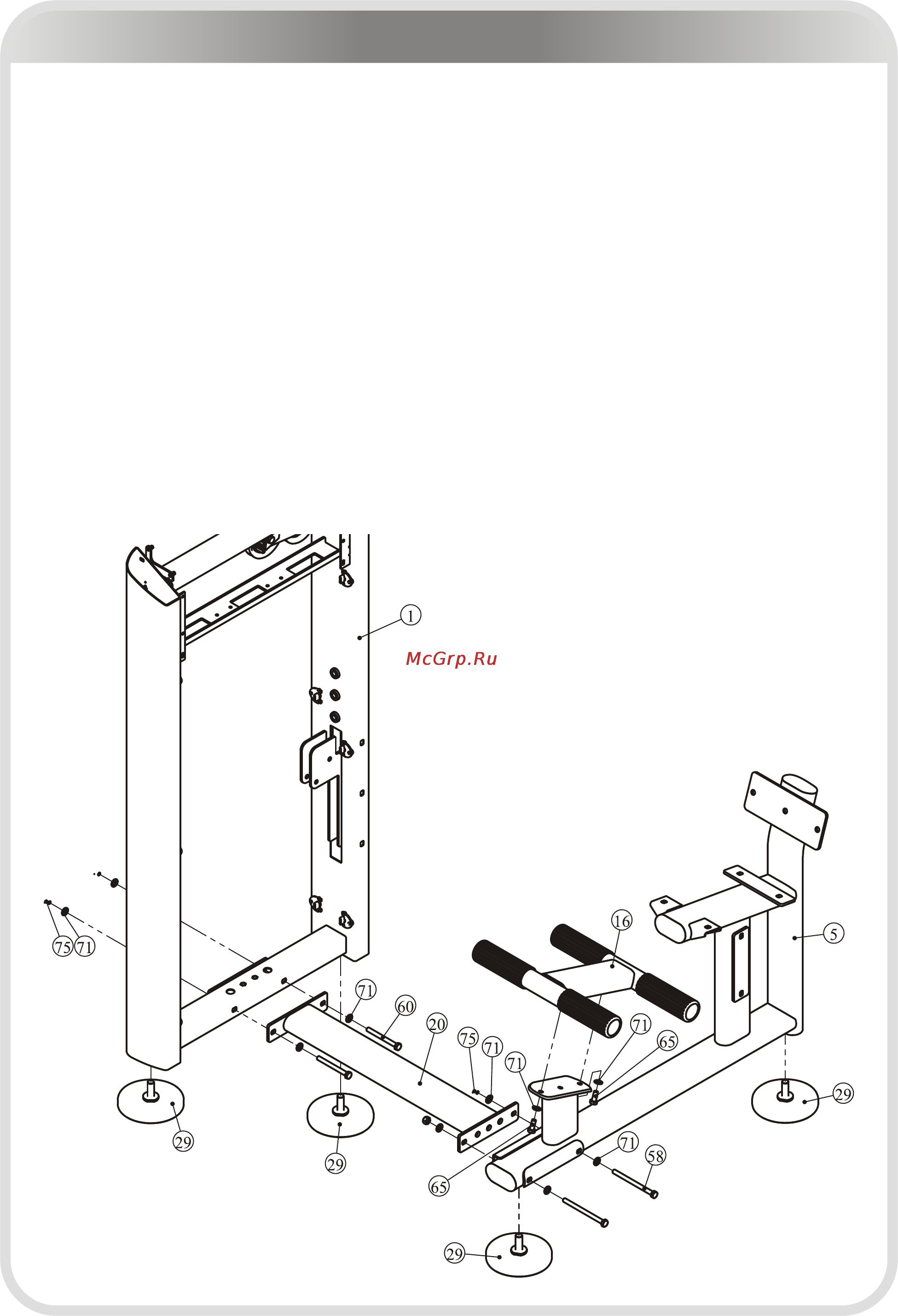

Assembly

1. Attach two Adjustable Foot plate (#29) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot plate (#29) to the Seat Frame (#5).

3. Attach the Lower Cross Link Weldment (#20) to the Weight Stack Frame (#1) using:

● two M10*100 HHB (#60)

● four Φ11*Φ20*2 Flat Washers (#71)

● two M10 Nylon Lock Nuts (#75)

4. Attach the Lower Cross Link Weldment (#20) to the Seat Frame (#5) using:

● two M10*135 HHB (#58)

● four Φ11*Φ20*2 Flat Washers (#71)

● two M10 Nylon Lock Nuts (#75)

5. Attach the Foot Tube (#16) to the Seat Frame (#5) using:

● two M10*25 HHB (#65)

● two Φ11*Φ20*2 Flat Washers (#71)

Note: Hand tighten bolts and Nylon Lock nuts.

STEP 1
