─ 14 ─

Assembly

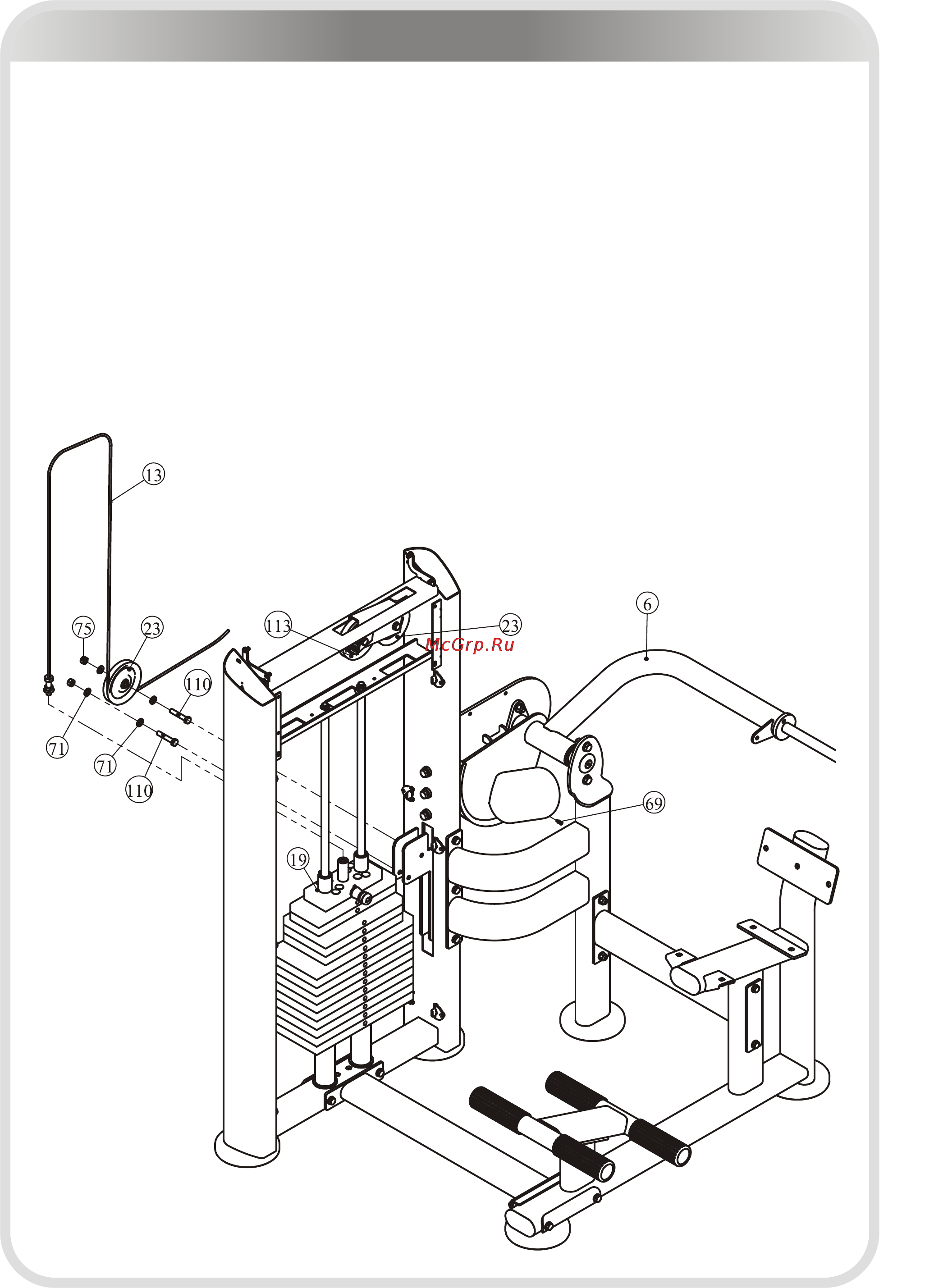

STEP 4

1. Attach the Cable (#13) to the Top Plate (#19), and go through two 4.5" Pulley

(#113 & #23).

2. Attach one 4.5" Pulley (#23) to the Weight Stack Frame (#1) using:

● two M10*55 HHB (#110)

● four Φ11*Φ20*2 Flat Washers (#71)

● two M10 Nylon lock Nut (#75)

3. Attach the Cable (#13) to the Cam Frame (#6) using:

● one M4*15 SHCS (#69)

Note: Wrench Tighten bolts and Nylon Lock nuts.
