─ 13 ─

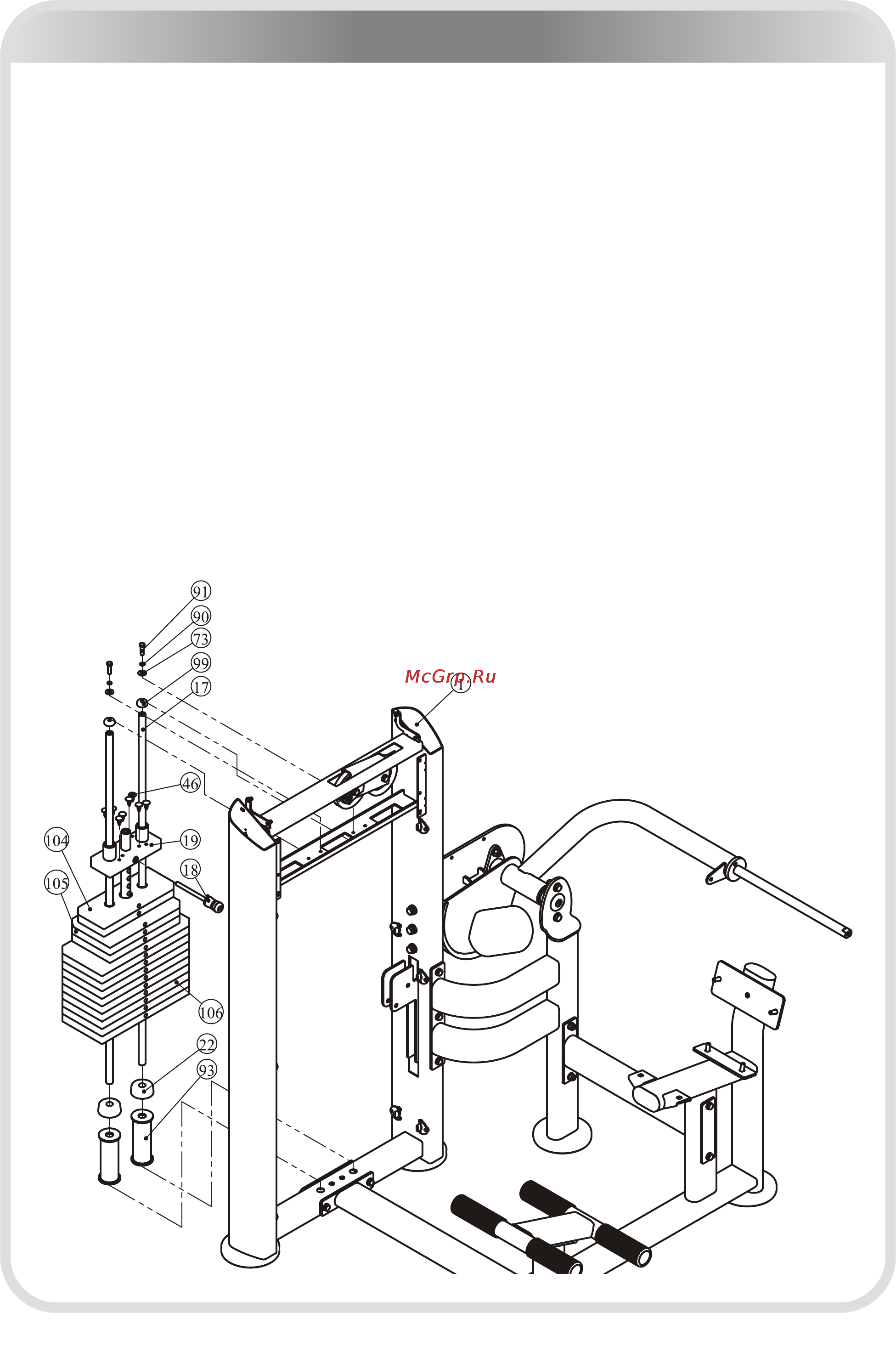

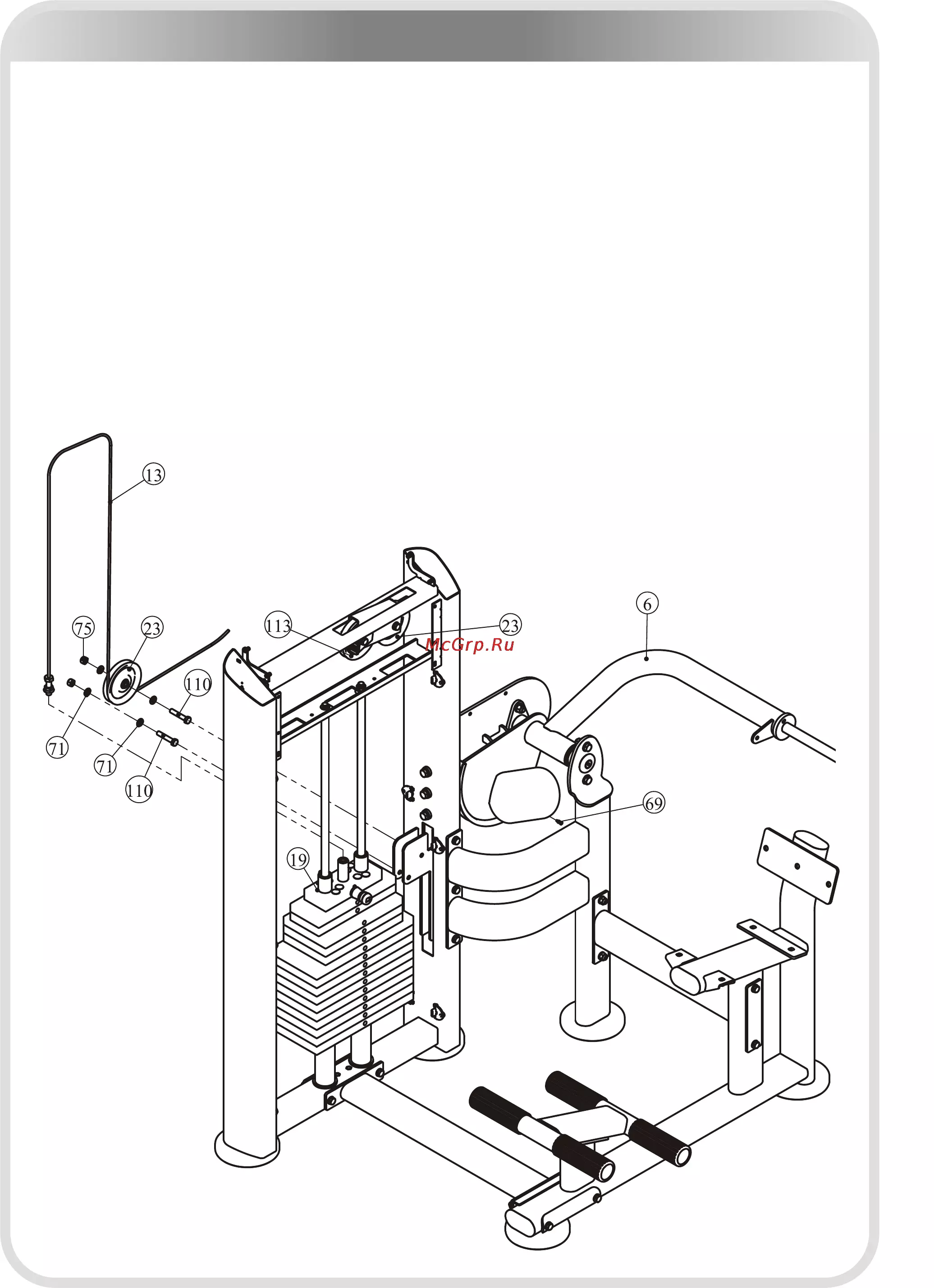

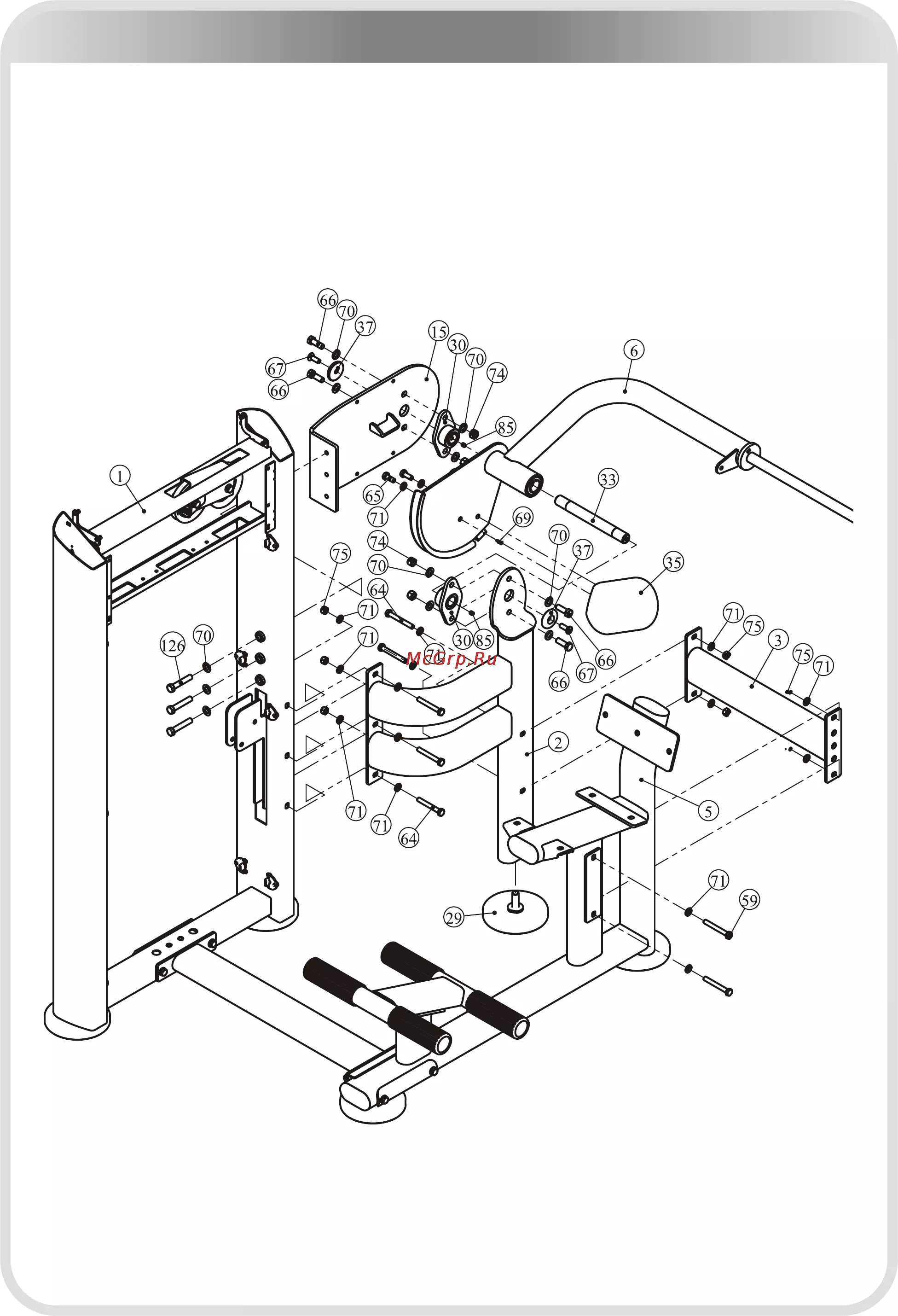

Assembly

STEP 3

1. Attach:

● two Φ19*1177 Guide Rods (#17)

● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#22)

● two Weight Stack Space 300 mm (#93)

● ten Weight Plate 15LBS (#106)

● three Weight Plate 10LBS (#105)

● two Weight Plate 5LBS (#104)

● one Top Plate (#19)

to the Weight Stack Frame (#1) using:

● two M8*30HHB (#91)

● two Φ8 Spring Washers (#90)

● two Φ9*Φ22*1.6 Flat Washers (#73)

● two Φ29*Φ19*10 Rubber Plugs (#99)

2. Attach the Selector Pin W/Coil (#18) to the Top Plate (#19).

3. Attach eight Φ8*Φ20*23 Buttons (#46) the Top Plate (#19).

Note: Wrench Tighten bolts and Nylon Lock nuts.
