Assembly
STEP 5

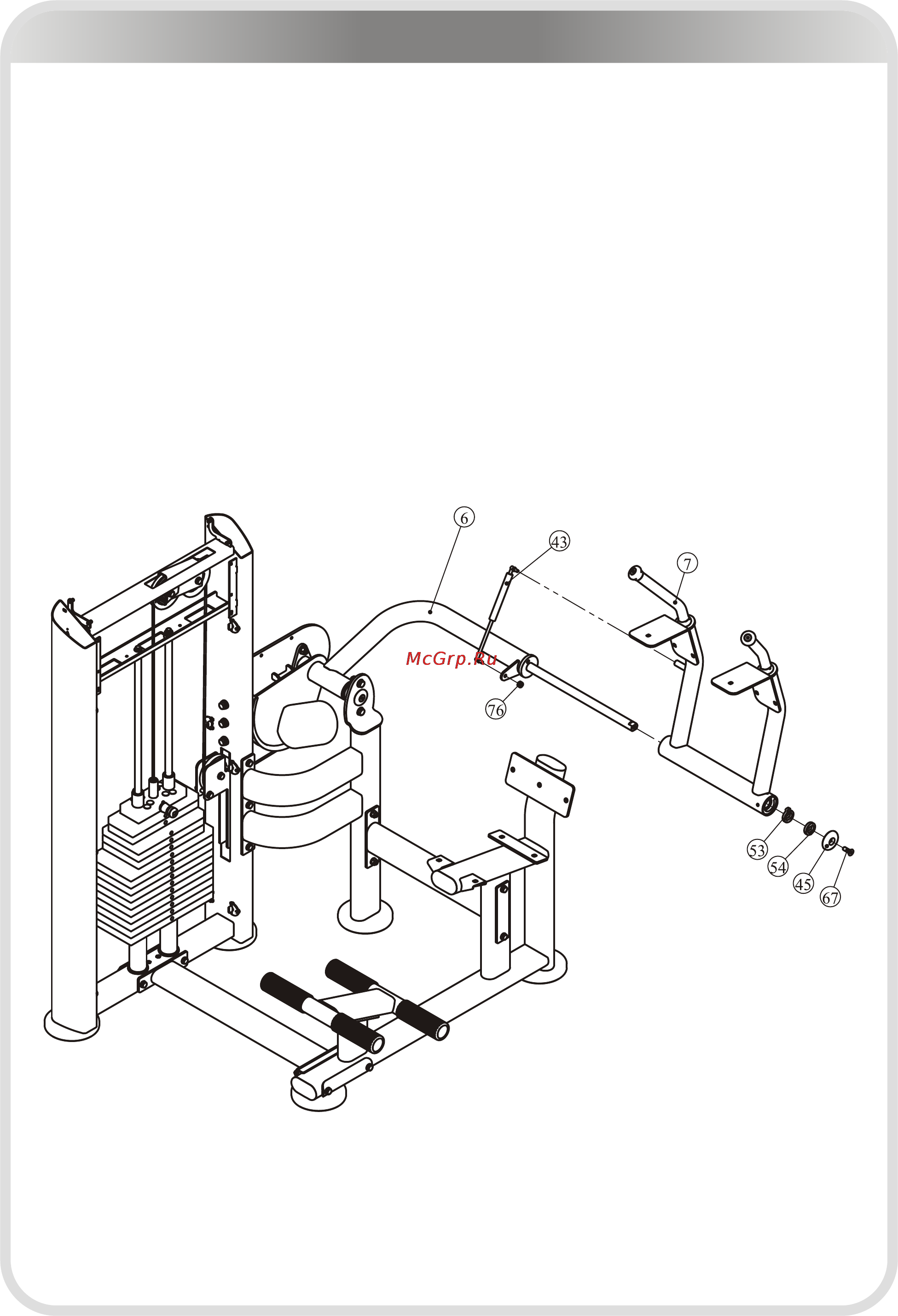

1. Attach the Gas Spring (#43) to the Cam Frame (#6).
2. Attach the Swivel Frame (#7) to the Cam Frame (#6).
3. Attach the Gas Spring (#43) the Swivel Frame (#7) using:
● one Φ60*Φ10.5*10 Aluminous Cap (#45)
● one Φ38*Φ25.6*R27*8 Location Ring (#53)
● one Φ38*Φ25.6*8 Locking Ring (#54)
● one M10*30 FHCS (#67)
● one M8 Nylon lock Nut (#76)
