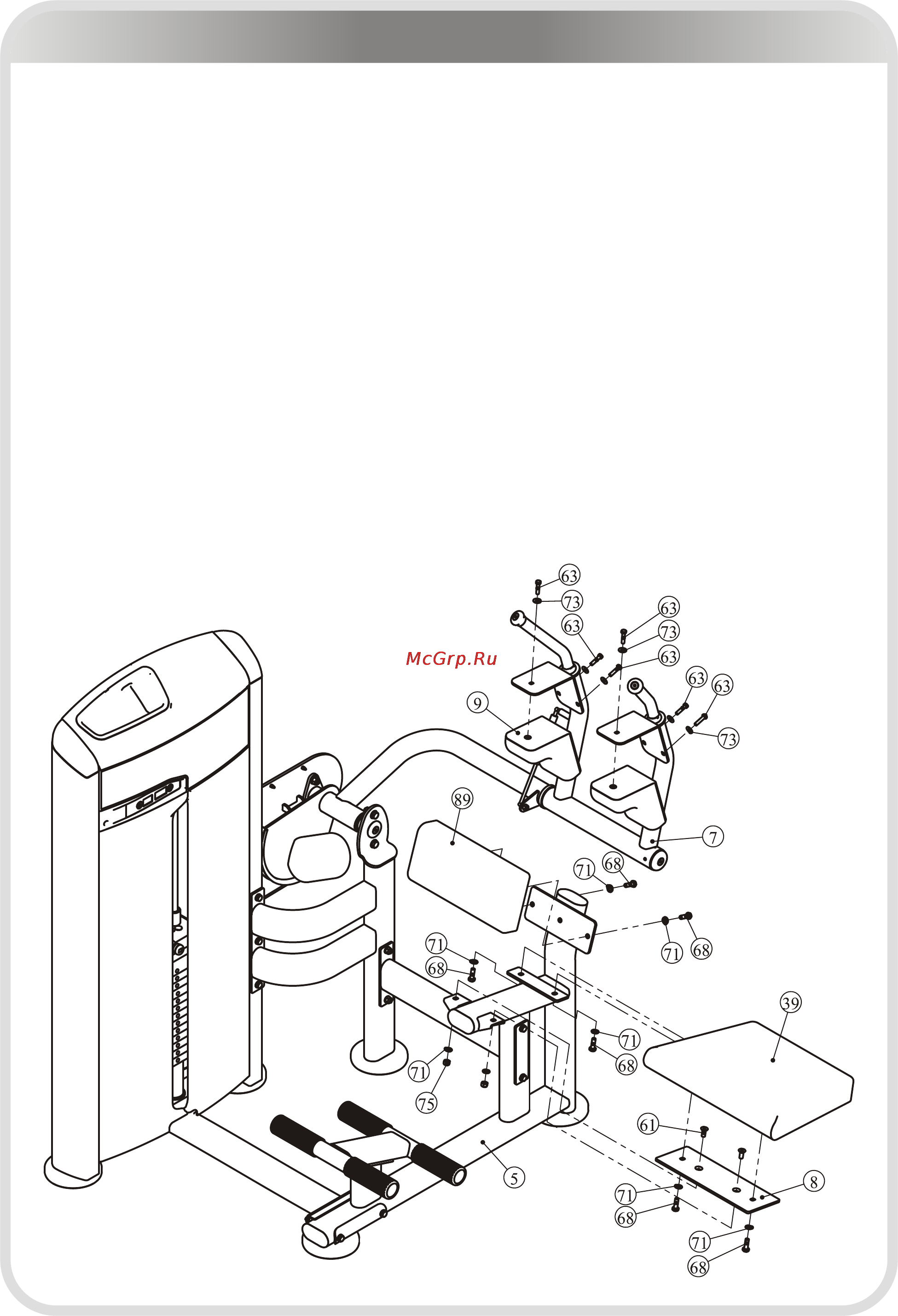

Assembly

1. Attach the Plate (#8) to the Seat Frame (#5) using:

● two M10*25 FHCS (#61)

● two Φ11*Φ20*2 Flat Washers (#71)

● two M10 Nylon Lock Nuts (#75)

2. Attach the Seat Pad (#39) to the Seat Frame (#5) and the Plate (#8) using:

● four Φ11*Φ20*2 Flat Washers (#71)

● four M10*30 HHB (#68)

3. Attach the Back Pad (#89) to the Seat Frame (#5) using:

● two Φ11*Φ20*2 Flat Washers (#71)

● two M10*30 HHB (#68)

4. Attach two Shoulder Pad (#9) to the Swivel Frame (#7) using:

● six M8*35 HHB (#63)

● six Φ9*Φ22*1.6 Flat Washer (#73)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 7
