Assembly

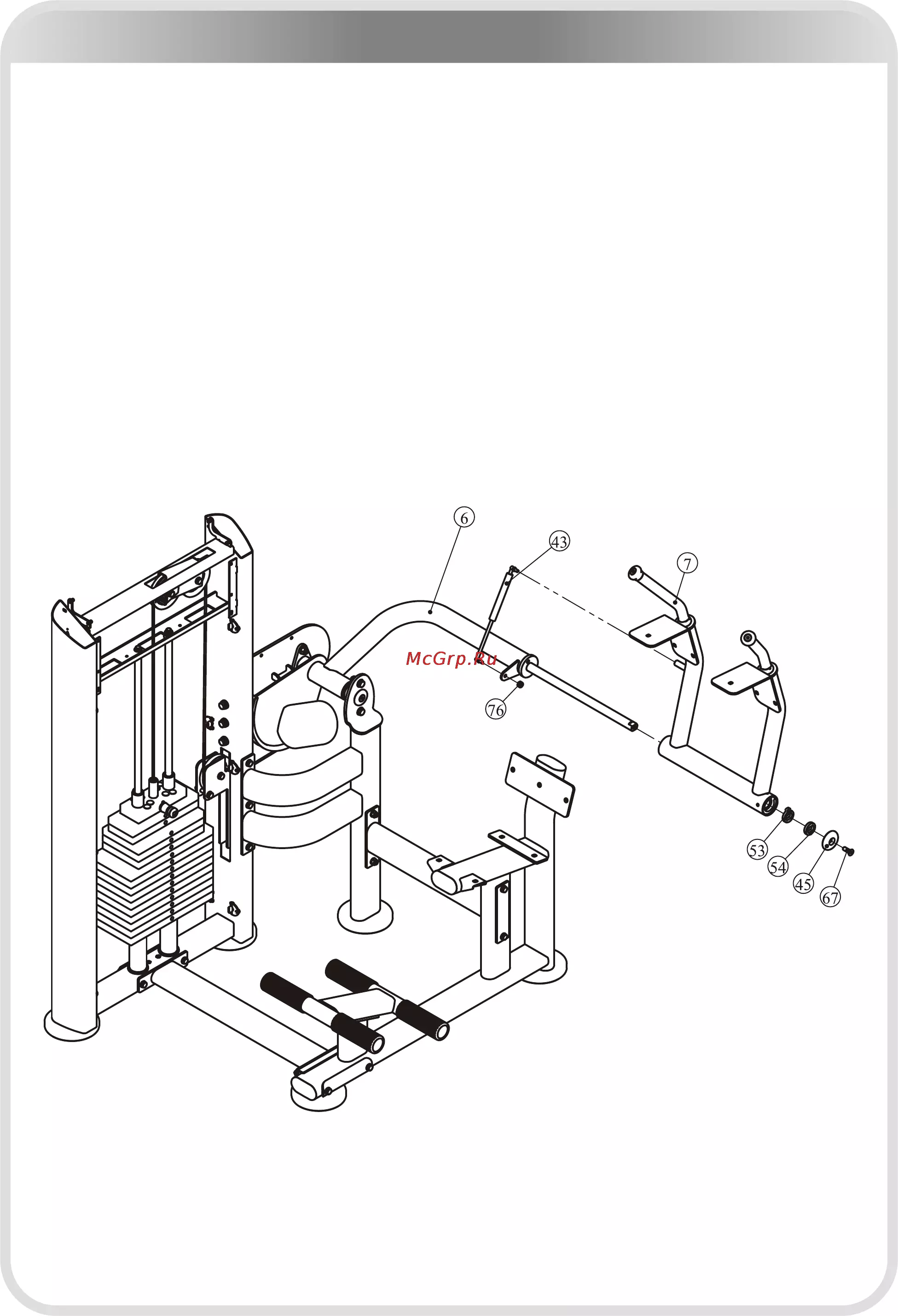

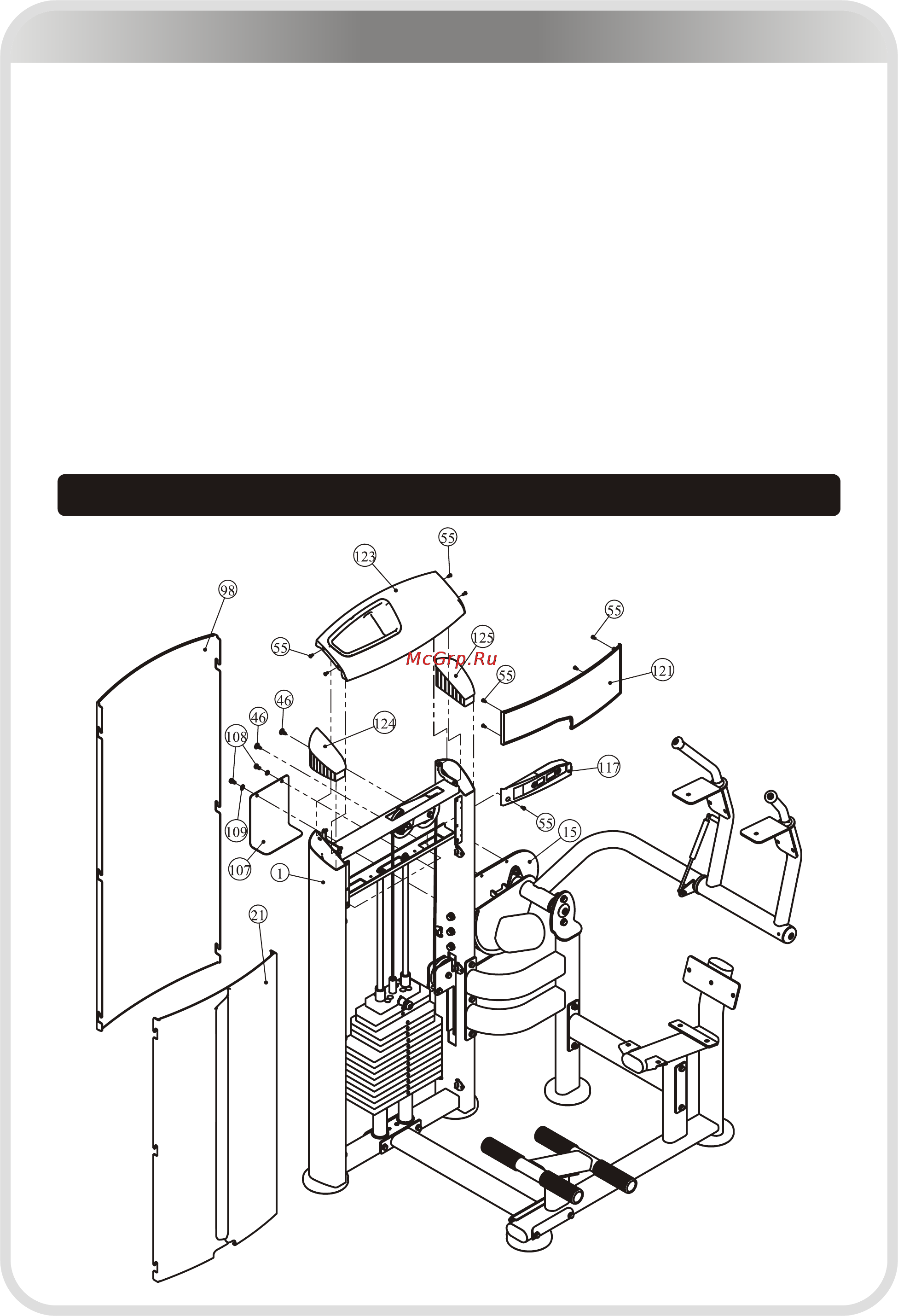

1. Attach one Front Shroud (#21) to the Weight Stack Frame (#1).

2. Attach the Top Front Shroud (#121) and the Console PCB (#117) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#55)

3. Attach one Rear Shroud (#98) to the Weight Stack Frame (#1).

4. Attach the Top Cover (#123) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#55)

5. Attach the Left Plug (#124) and Right Plug (#125) to the Weight Stack Frame (#1).

6. Attach the Baffle Plate (#107) to the Main Bracket (#15) using:

● two M8*15 HHB (#108) ● two Φ9*Φ16*1.6 Flat Washers (#109)

● two Φ8*Φ20*23 Buttons (#46)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6

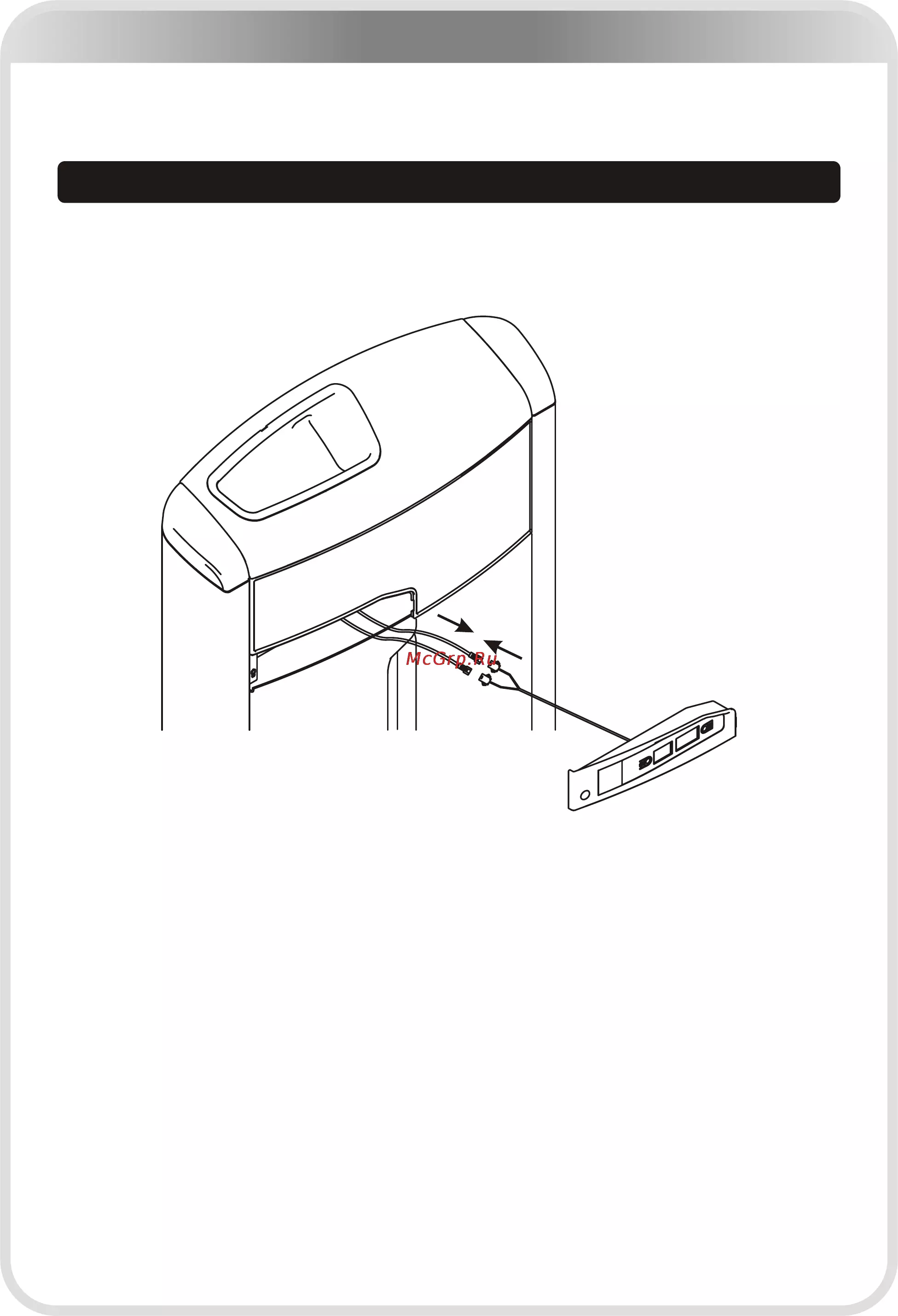

Here is the assembly instruction for Console PCB !

─ 16 ─
