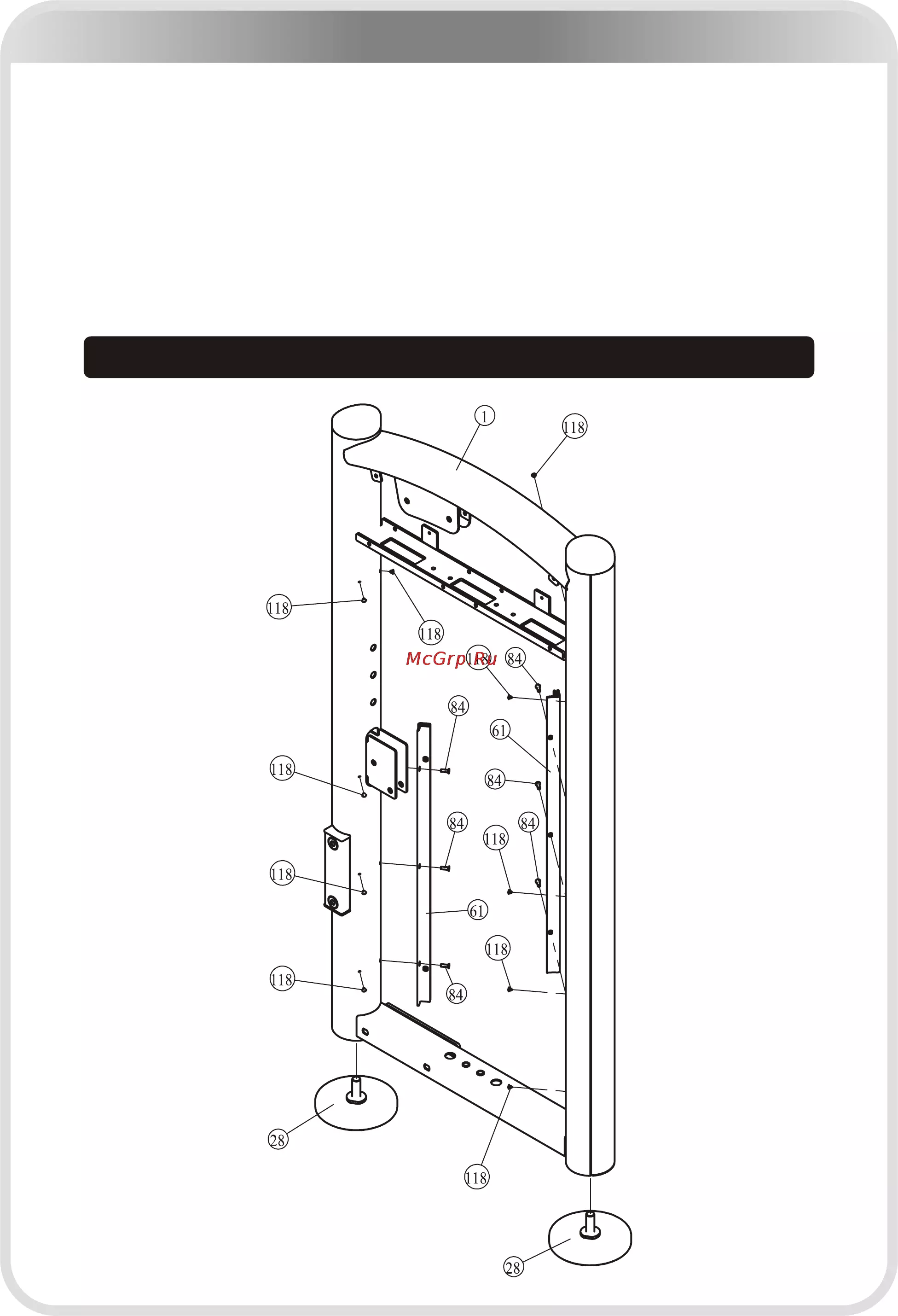

Assembly

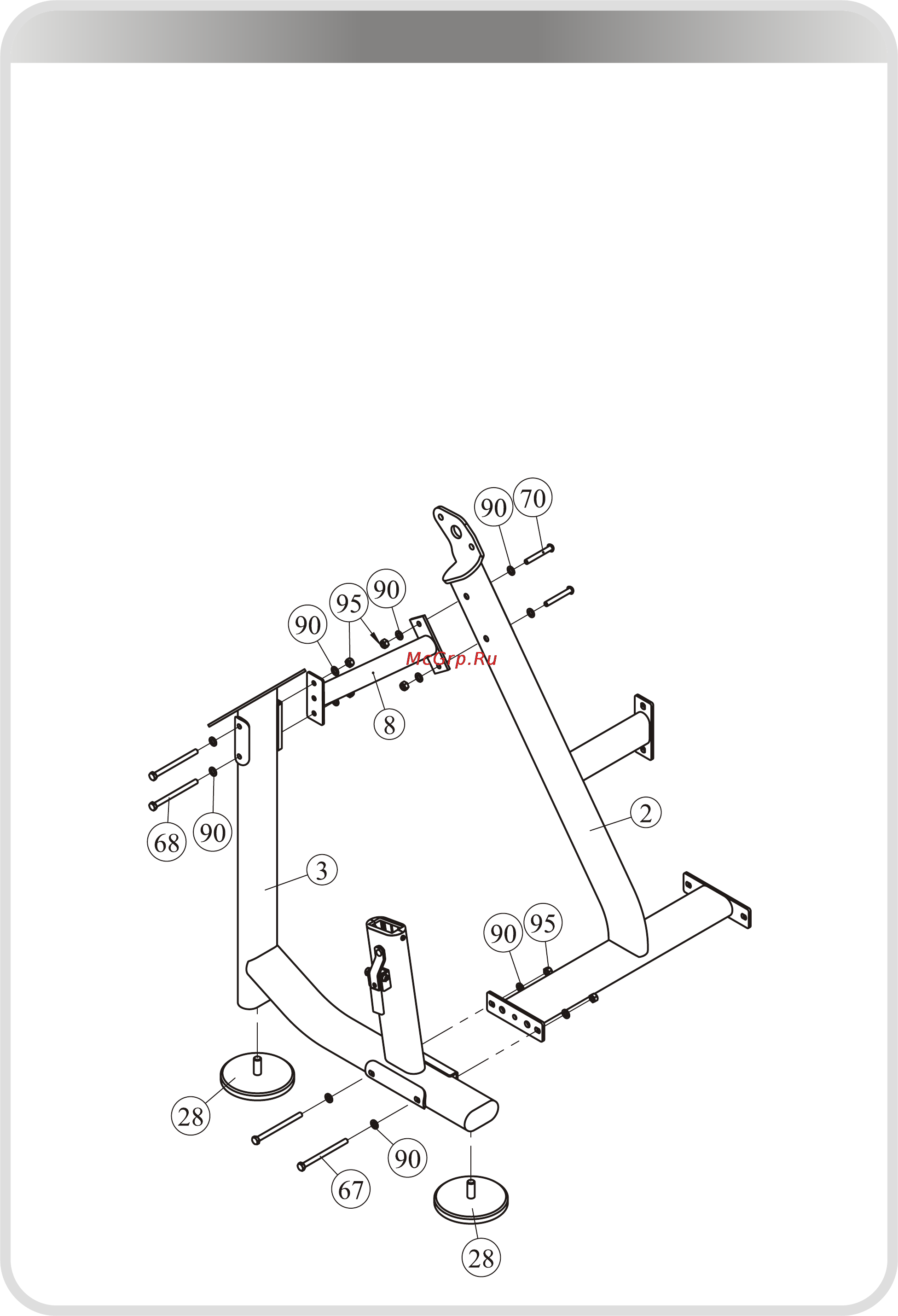

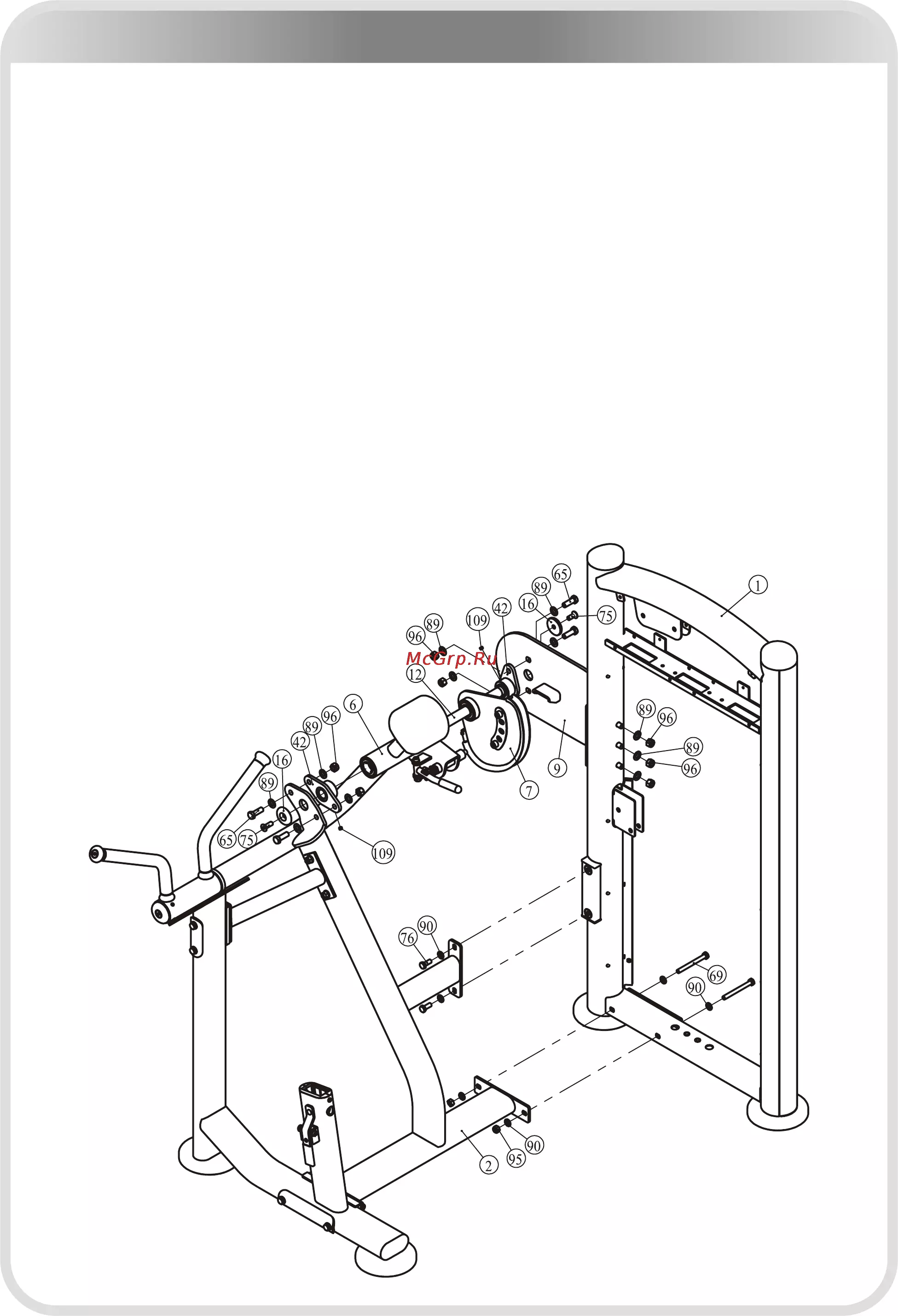

STEP 2

1. Attach two Adjustable Foot plate (#28) to the Main Frame (#3).

2. Attach the Bottom Cross Brace (#2) to the Main Frame (#3) using:

two M10*135 HHB (#67) four Φ11*Φ20*2 Flat Washers (#90)

two M10 Nylon lock Nuts (#95)

3. Attach the Top Cross Brace (#8) to the Main Frame (#3) using:

two M10*130 HHB (#68) four Φ11*Φ20*2 Flat Washers (#90)

two M10 Nylon lock Nuts (#95)

4. Attach the Bottom Cross Brace (#2) to the Top Cross Brace (#8) using:

two M10*80 HHB (#70) four Φ11*Φ20*2 Flat Washers (#90)

two M10 Nylon lock Nuts (#95)

Note: Hand tighten Βolts and Nylon Lock nuts.
