Assembly

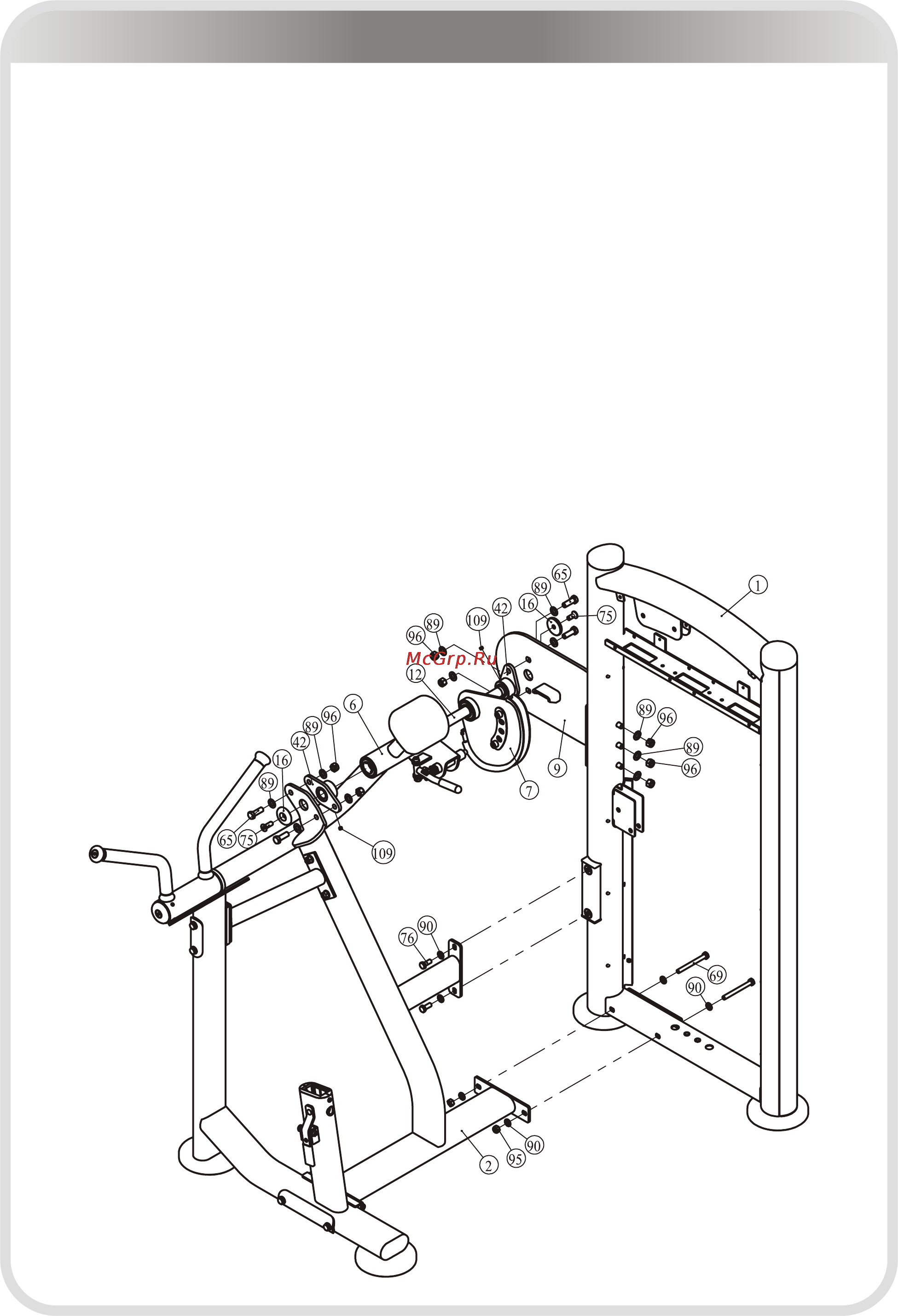

STEP 3

1. Attach the Main Bracket (#9) to the Weight Stack Frame (#1) using:

three Φ13*Φ24*1.5 Flat Washers (#89) three M12 Nylon lock Nuts (#96)

2. Attach one Flange (#42) to the Bottom Cross Brace (#2) using:

two M12*35 HHB (#65) four Φ13*Φ24*1.5 Flat Washers (#89)

two M12 Nylon lock Nuts (#96)

3. Attach another Flange (#42) to the Main Bracket (#9) using:

two M12*35 HHB (#65) four Φ13*Φ24*1.5 Flat Washers (#89)

two M12 Nylon lock Nuts (#96)

4. Attach the Arm Bracket (#6) and the Cam Wheel Brackets (#7) to the two

Flanges (#42) using:

two M10*30 Flat Head Cap Screws (#75) two Φ50*Φ10.5*8 Aluminous Caps (#16)

one Φ25.4*335.4 Main Shaft (#12) four M8*8 Socket Set Screws (#109)

5. Attach Bottom Cross Brace (#2) to the Weight Stack Frame (#1) using:

two M10*100 HHB (#69) two M10*20 HHB (#76)

two M10 Nylon lock Nuts (#95) six Φ11*Φ20*2 Flat Washers (#90)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
