─ 18 ─

AssemblyAssembly

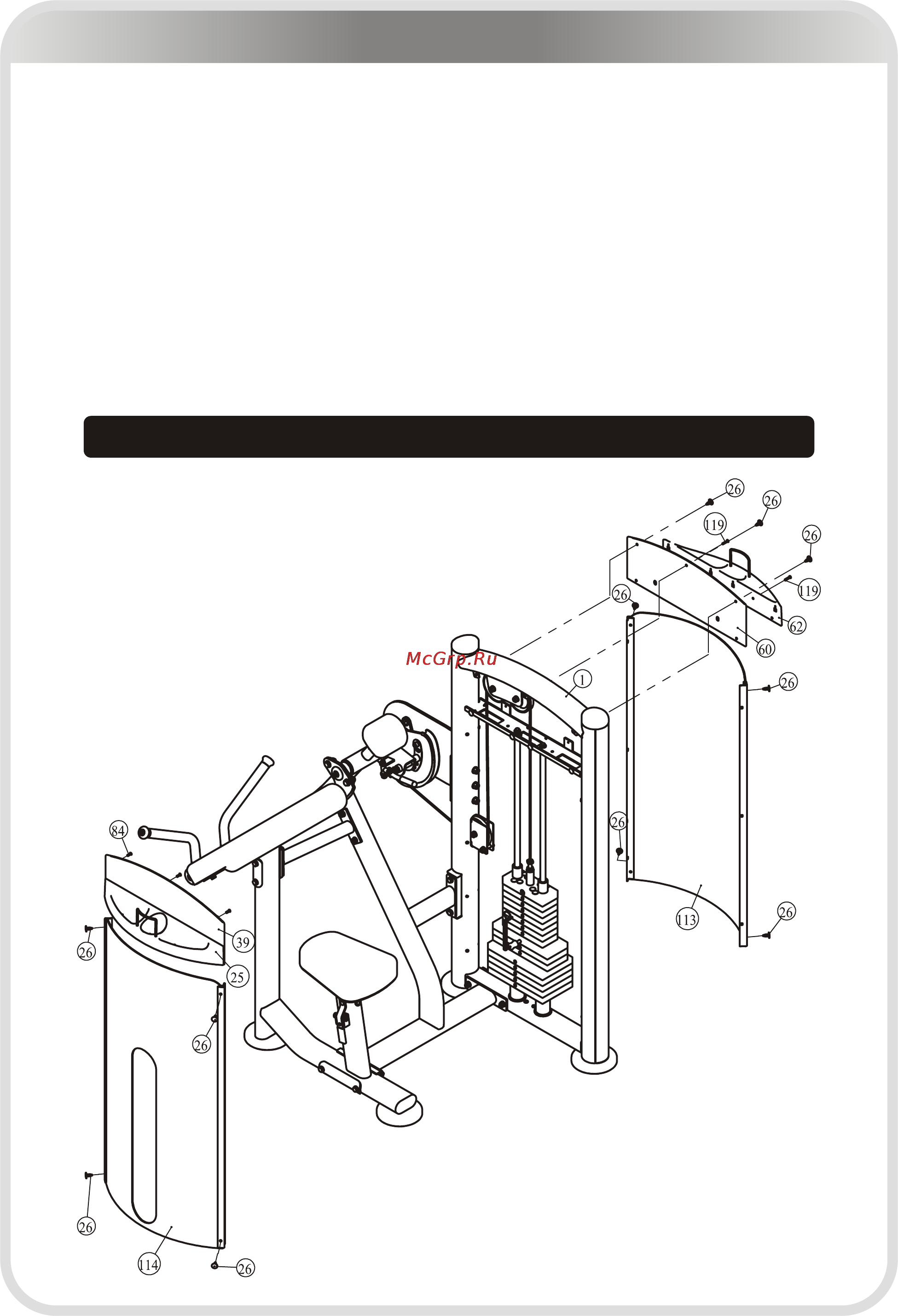

STEP 7

1. Attach one Front Shroud (#114) and one Rear Shroud (#113) to the Weight

Stack Frame (#1) using:

eight Φ8*Φ20*23 Buttons (#26)

2. Attach the Top Front Shroud & The Front Support (#39 & #25) to the Weight

Stack Frame (#1) using:

three M5*16 Flat Philips Screws (#84)

3. Attach the Top Rear Shroud-A (#60) and the Rear Support (#62) to the Weight

Stack Frame (#1) using:

three Φ8*Φ20*23 Buttons (#26) two M5*25 Flat Philips Screws (#119)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
