─ 14 ─

AssemblyAssembly

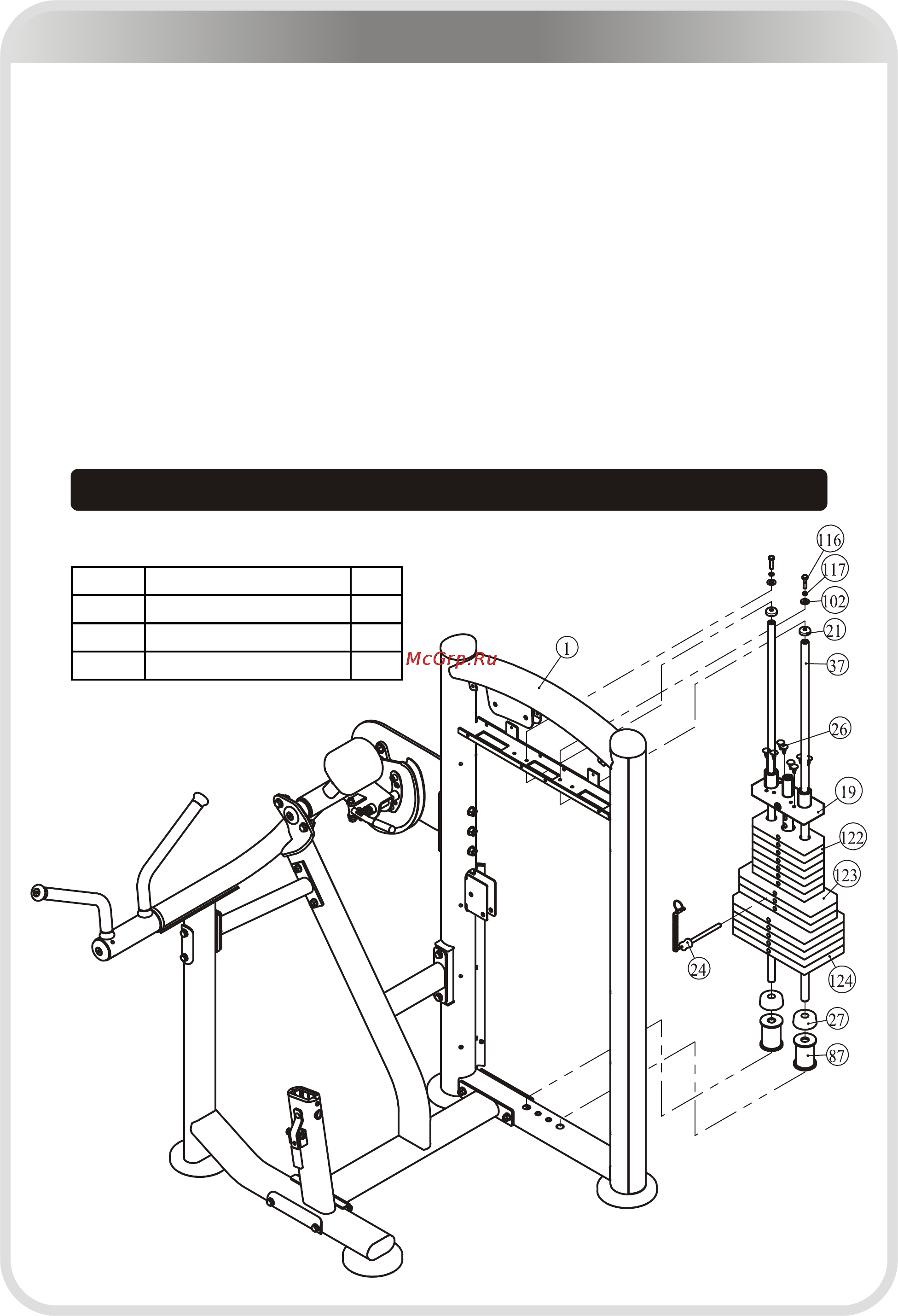

STEP 4

1. Attach:

two Φ19*1177 Guide Rods (#37) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#27)

two Weight Stack Spaces (#87) five Weight Plate 15LBS (#124)

three Weight Plate 10LBS (#123) seven Weight Plate 5LBS (#122)

one Top Plate (#19)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#116) two Φ8 Spring Washers (#117)

two Φ9*Φ22*1.6 Flat Washers (#102) two Φ29*Φ19*10 Rubber Plugs (#21)

2. Attach the Selector Pin W/Coil (#24) to the Top Plate (#19).

3. Attach eight Φ8*Φ20*23 Buttons (#26) to the Top Plate (#19).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 150LBS Weights !

Item No. Description Qty

122 Weight Plate 5LBS 7

123 Weight Plate 10LBS 3

124 Weight Plate 15LBS 5

150LBS Weights
