AssemblyAssembly

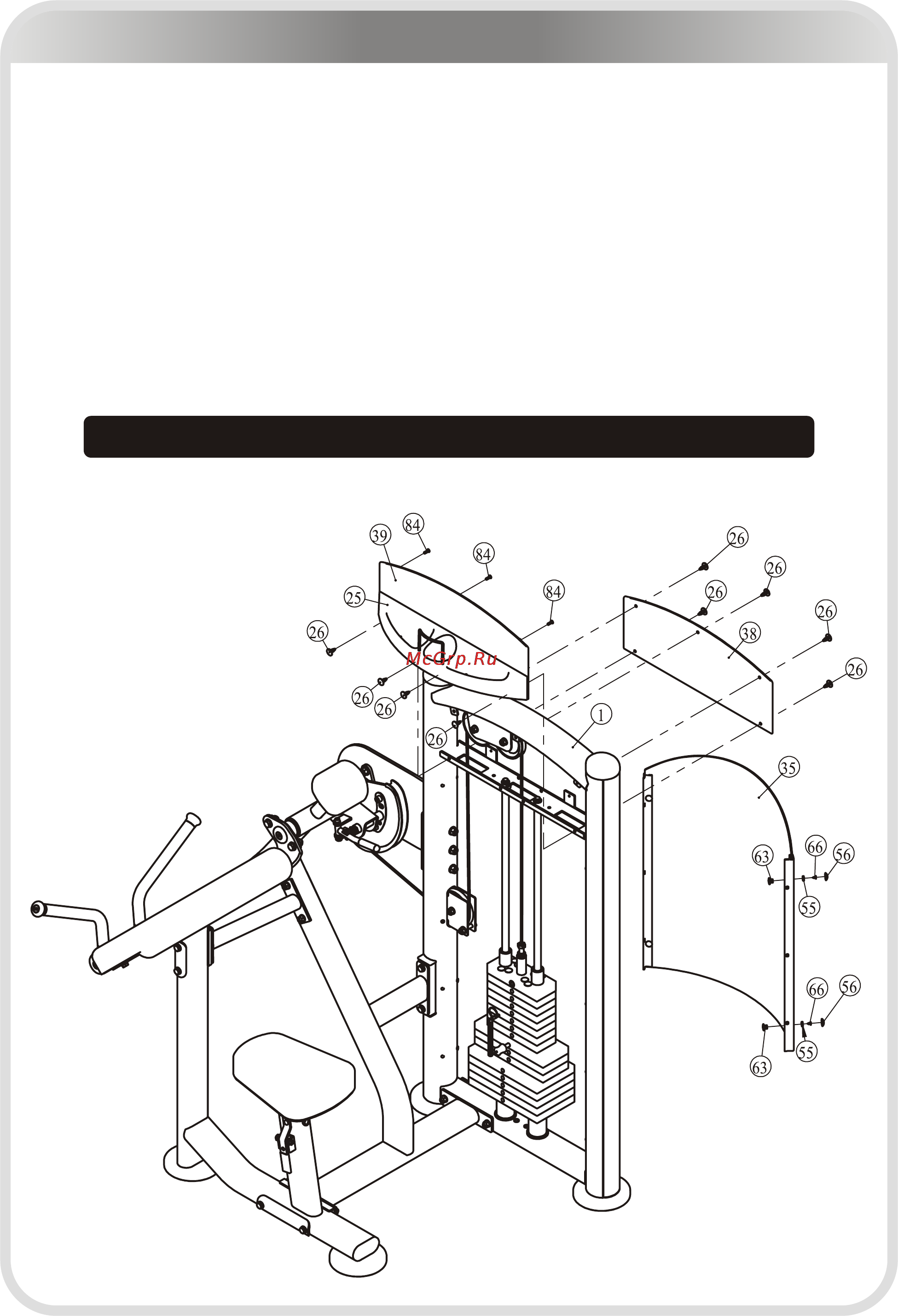

STEP 7

1. Attach one Shroud (#35) to the Weight Stack Frame (#1) using:

four Φ13*3 Plastic Washers (#55) four Φ21*5.7 Plastic Covers (#56)

four Φ18*12 Connect Button (#63) four ST4.2*10 Self-Tapping Screws (#66)

2. Attach the Top Front Shroud & The Front Support (#39 & #25) to the Weight

Stack Frame (#1) using:

four Φ8*Φ20*23 Buttons (#26) three M5*16 Flat Philips Screws (#84)

3. Attach the Top Rear Shroud (#38) to the Weight Stack Frame (#1) using:

five Φ8*Φ20*23 Buttons (#26)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Shor t Shroud !
