─ 17 ─

AssemblyAssembly

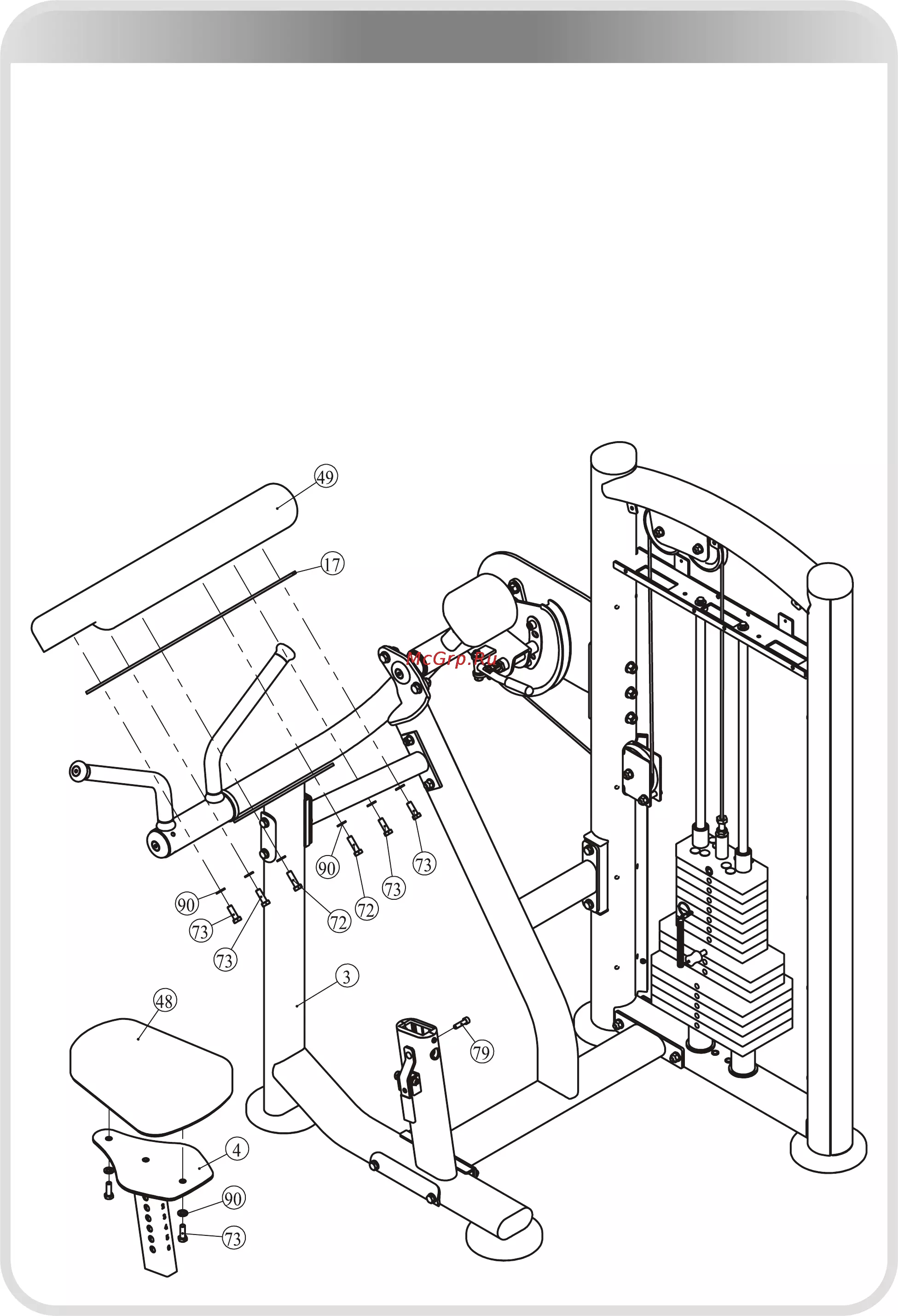

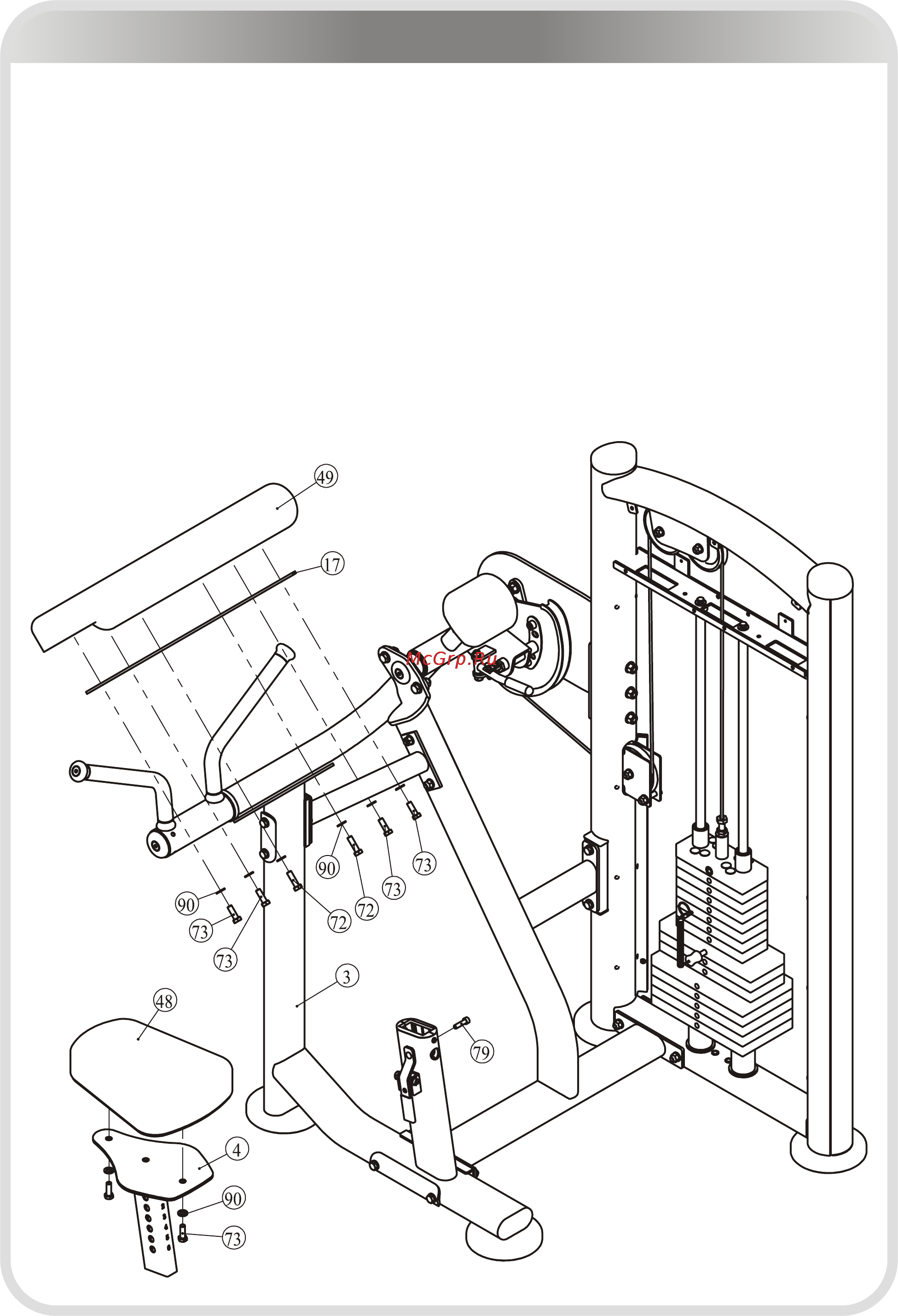

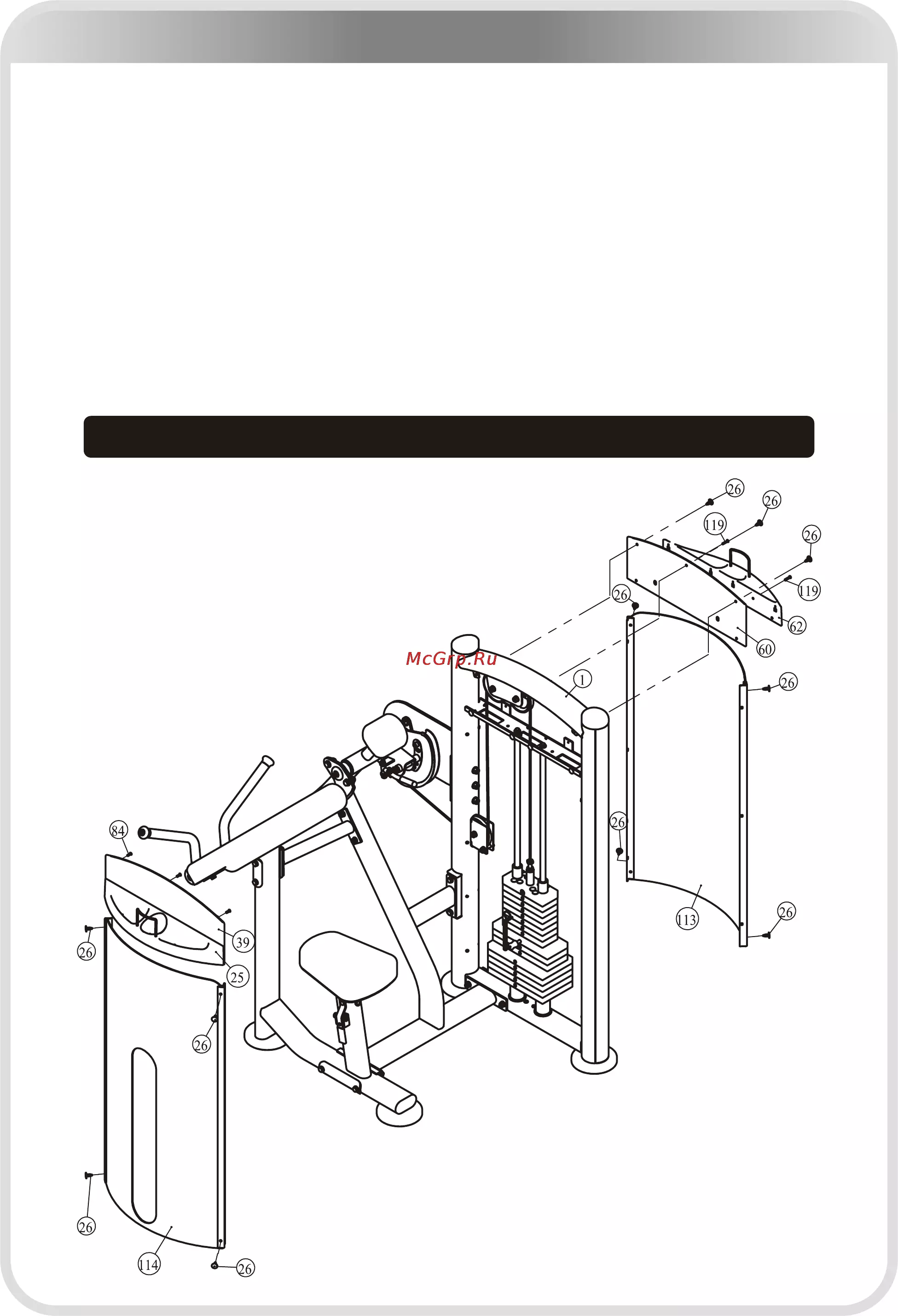

STEP 6

1. Attach the Seat Pad Support (#4) the Main Frame (#3) using:

one M8*30 SHCS (#79)

2. Attach the Seat Pad (#48) to the Seat Pad Support (#4) using:

two M10*30 HHB (#73) two Φ11*Φ20*2 Flat Washers (#90)

3. Attach the Arm Pad (#49) and the Underlaying Flat Steel (#17) to the Main

Frame (#3) using:

four M10*30 HHB (#73) two M10*35 HHB (#72)

six Φ11*Φ20*2 Flat Washers (#90)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
